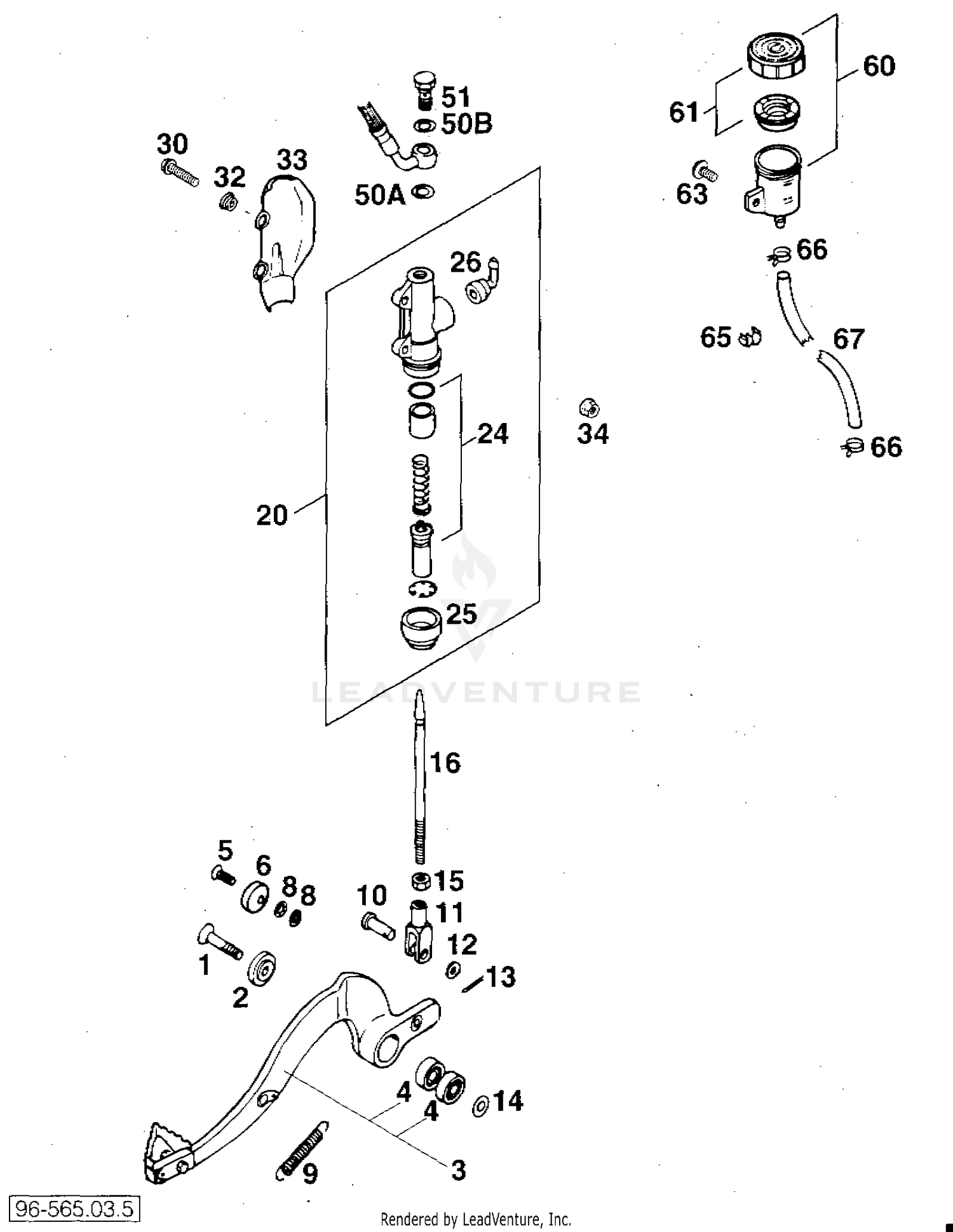

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERST.SCREW
991080403
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER FOR BRAKE LEVER
56503061300
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRAKE PEDAL CPL.
50203060544
|
|||
|
Unavailable |
|||
|
#4
BALL BEARING
625006087
|
$19.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
COUNTERSUNK SCREW
991060163
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE STOP LEVER
50203063000
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK WASHER
797060003
|
$0.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETURN SPRING FOR BRAKE LEVER
54503062000
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT FOR FORK 4STR.
58003067000
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
FORK F.BRAKE PEDAL
58003069000
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
WINDOW PANE 8,4X14X1MM
50203028000
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
94020203
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLAT WASHER
125080003
|
$0.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
HEX NUT
934080003
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
PRESSURE ROD ALU L=120 MM'89
54503068000
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
MAIN BRAKE CYLINDER
54513101044
Superseded by 54513101144
|
$149.09 | ||
|
Unavailable |
|||
|
#24
REPAIR KIT PISTON 13MM
54513150000
|
$54.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER SLEEVE
54513151000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#26
ANGLE PIECE
54513155000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
H H COLLAR SCREW
15060253
|
$0.98 | ||
|
Unavailable |
|||
|
#32
COLLAR BUSHING
50213161000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRAKE CYL. PROTECTOR ''BREMBO''
54513038000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#34
SELF LOCKING NUT
56509064000
|
|||
|
Unavailable |
|||
|
#50A
CU-SEAL RING DIN7603-10X16X1,5
42013026000
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50B
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
HOLLOW SCREW M10X1X19
50213025000
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
BRAKE FLUID RESERVOIR '89
54513030044
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW CAP
54513031044
|
|||
|
Unavailable |
|||
|
#63
H H COLLAR SCREW
14060103
|
$1.69 | ||
|
Unavailable |
|||
|
#65
CLAMP D=6/8MM, BLACK
55011022100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#67
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
