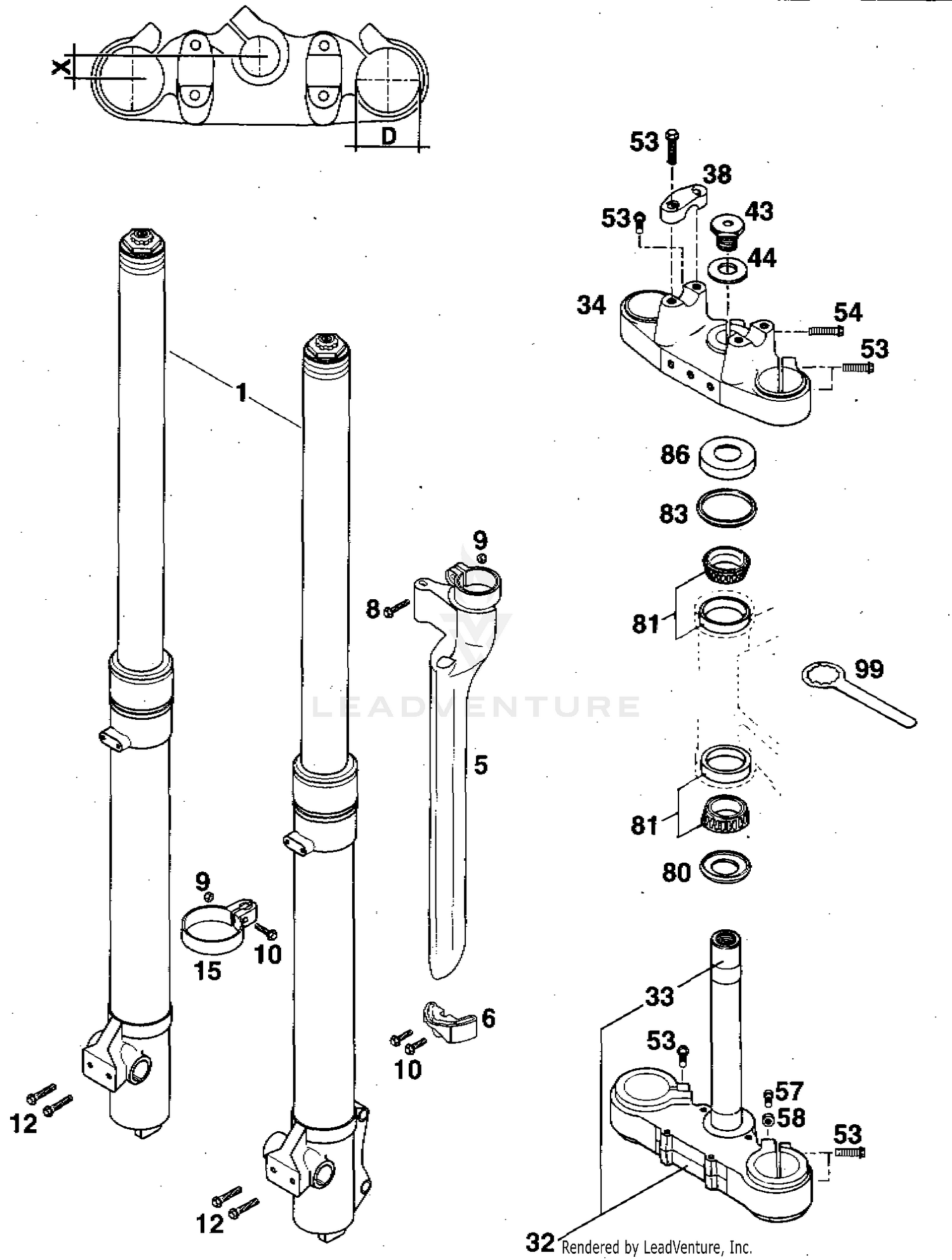

Front Fork Marzocchi Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK LEGS CPL.
124729
|
|||
|
Unavailable |
|||
|
#1
FORK LEGS CPL.
124730
|
|||
|
Unavailable |
|||
|
#1
FORK LEGS CPL.
124731
|
|||
|
Unavailable |
|||
|
#5
FORK PROTECTOR L/S '96
54601291000
|
$12.21 | ||
|
Available to order. Add to View Price |
|||
|
#
FORK PROTECTOR R/S
54601391000
|
|||
|
Unavailable |
|||
|
#6
FORK PROTECTION GUIDE L/S '96
54601290000
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#
FORK PROTECTOION GUIDE R/S '96
54601390000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
H H COLLAR SCREW
15050253
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
S L HUT
985050003
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
H H COLLAR SCREW
15050203
|
$1.29 | ||
|
Unavailable |
|||
|
#12
H H COLLAR SCREW
520196
|
|||
|
Unavailable |
|||
|
#15
SPEEDOMETER CABLE GUIDE MARZO.
54601099000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOT.FORK PLATE X=18MM/D=45MM
50201132044
|
$179.68 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOT.FORK PLATE CPL
54601132044
|
|||
|
Unavailable |
|||
|
#33
FORK TUBE L=244
50101033100
Superseded by 54801133000
|
$100.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP FORK PLATE X=18MM/D=45MM
50201134000
|
$125.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP FORK PLATE
54601134000
|
|||
|
Unavailable |
|||
|
#38
HANDLEBAR CLAMP
54601038000
|
|||
|
Unavailable |
|||
|
#43
HH SCREW M20X1,5
56401043000
|
$23.93 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER 21X38X3
56401044000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#53
H H COLLAR SCREW
15080303
|
$2.06 | ||
|
Unavailable |
|||
|
#54
H H COLLAR SCREW
15080353
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#57
HEX HEAD SCREW
933070203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
HEX NUT
934070003
|
$0.59 | ||
|
Available to order. Add to View Price |
|||
|
#80
O-RING SUPPORT W. SEALING LIP
54601084100
Superseded by 77701084000
|
$22.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081000
Superseded by 54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#83
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#86
STEERING HEAD COVER
54201086000
|
$10.00 | ||
|
Unavailable |
|||
|
#99
STEER.HEAD WRENSCH
54212035000
|
|||
|
Unavailable |
|||
