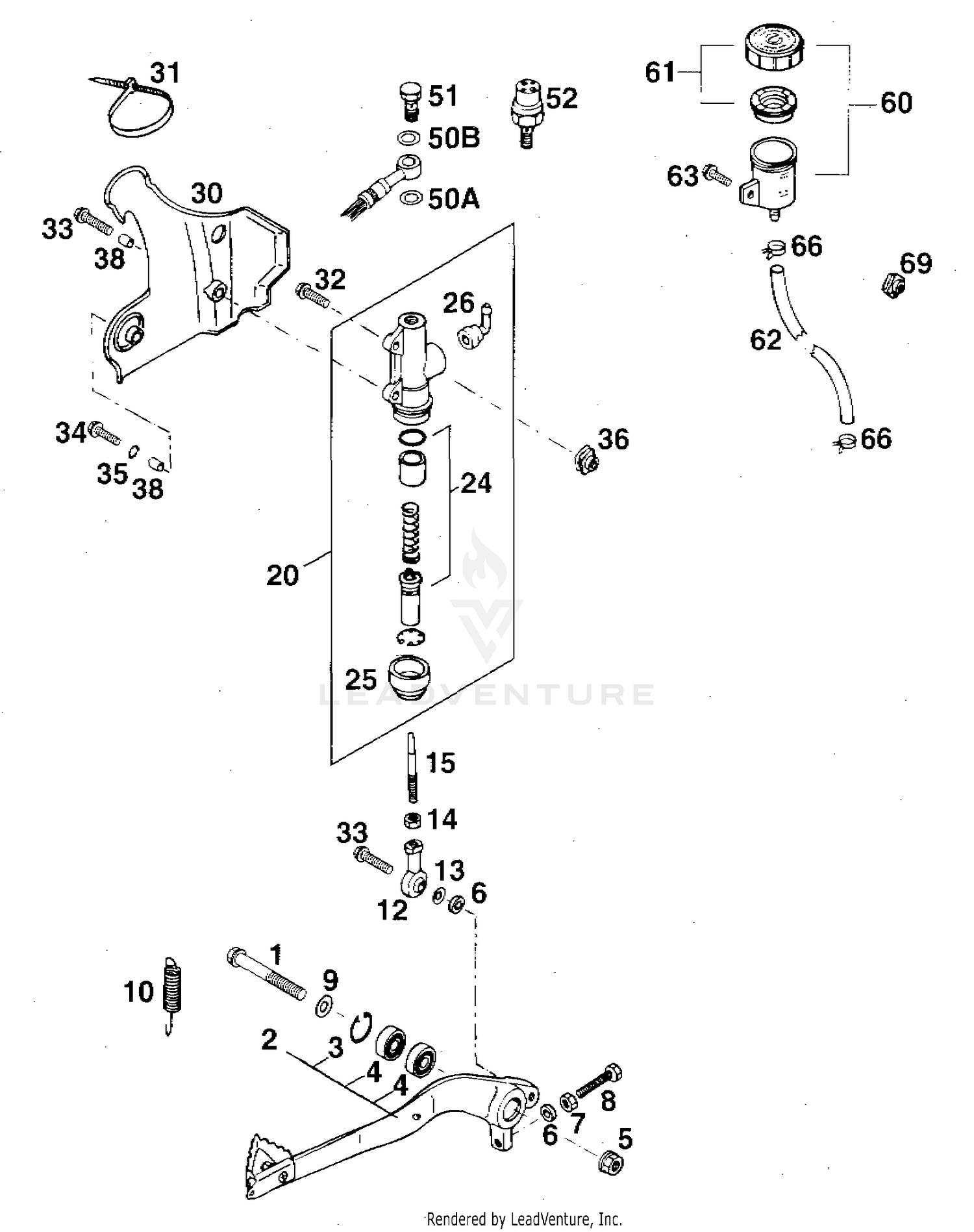

1996 KTM MXC 300 Rear Brake Control OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HH COLLAR SCREW M 8X50 WS=10
0015080503
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
FOOT BRAKE LEVER CPL. 250'91
54603060144
|
$82.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP DIN0472-22X1,5
0472022150
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$21.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SELF LOCKING NUT
54310086000
|
|||
|
Unavailable |
|||
|
#6
WASHER 6 X 12 X 3
12011016000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
HH SCREW DIN0933-M 6X35
0933060353
|
$0.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
washer DIN 125 A -8.4
0125080003
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$6.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SWIVEL HEAD M6 FOOT BRAKE LEV.
54603069000
|
$37.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER DIN0125-A 6,4
0125060003
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
Unavailable |
|||
|
#15
PRESSURE ROD ALU 250 '90
54603068000
|
$5.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
MAIN BRAKE CYLINDER '89
54513101044
|
$126.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
REPAIR KIT PISTON 13MM
54513150000
|
$43.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER SLEEVE
54513151000
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
ANGLE PIECE
54513155000
|
$14.46 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRAKECYL.COVER
54613038000
|
|||
|
Unavailable |
|||
|
#31
CABLE TIE 200/3,6MM BLACK
44011076200
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#32
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
HH collar screw M5x20 TX30
0015050203
Superseded by 0025050206
|
$1.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PAIR OF WASHERS M 6 NORDLOCK
50233041000
|
$3.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
clip nut M6
50235033300
Superseded by 54603048100
|
$3.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SPACER BUSHING 6,5 X 8 X 7
58011039000
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#50A
CU-SEAL RING DIN7603-10X16X1,5
42013026000
|
$1.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50B
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
HOLLOW SCREW M10X1X19
50213025000
|
$6.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
BRAKE LIGHT SWITCH
42013121000
|
$37.76 | ||
|
Available to order. Add to View Price |
|||
|
#60
BRAKE FLUID RESERVOIR '89
54513030044
|
$19.23 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW CAP
54513031044
|
|||
|
Unavailable |
|||
|
#62
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$15.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
HH collar screw M5x16 TX30
0015050163
Superseded by 0025050166
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#69
SNAP-NUT HOLDER M5 KP142
50235033000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
