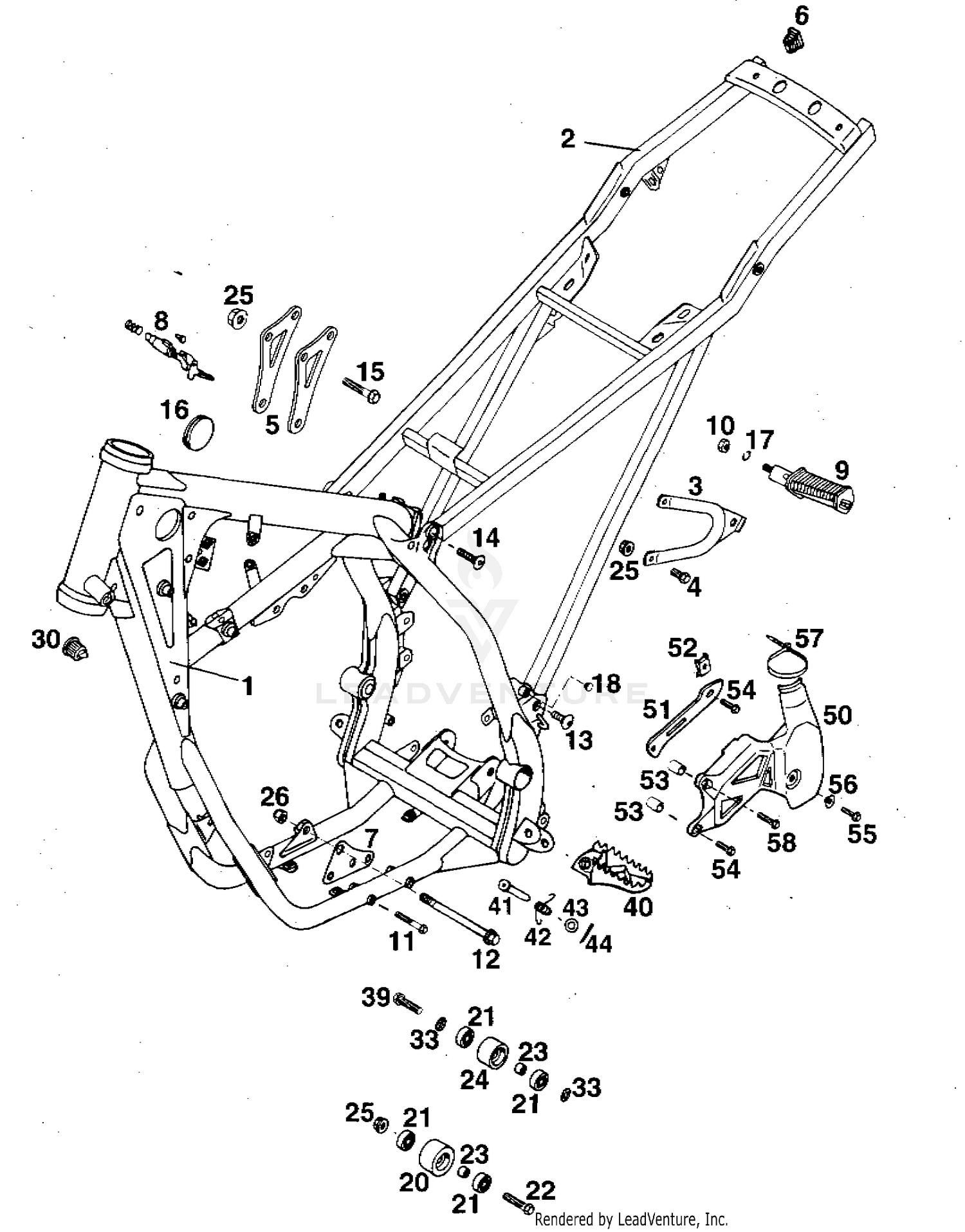

1996 KTM MXC 300 Frame, Subframe OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
54603401500
|
|||
|
Unavailable |
|||
|
#2
SUBFRAME
54603002100
|
|||
|
Unavailable |
|||
|
#2
SUBFRAME
54603402000
|
|||
|
Unavailable |
|||
|
#2
SUBFRAME
54603402100
|
|||
|
Unavailable |
|||
|
#3
FOOT PED BRACKET L
54603003000
|
|||
|
Unavailable |
|||
|
#
FOOT PED BRACKET R
58303103000
|
|||
|
Unavailable |
|||
|
#4
HH COLLAR SCREW M8X16 TX40
0015080163
Superseded by 0025080166
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
REINFORCING BRACK.
54603045100
|
|||
|
Unavailable |
|||
|
#6
PLUG 12 X 17 MM
58303002090
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENGINE MOUNTING 250/300 '90
54603055000
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
STEERING HEAD LOCK
44003007000
|
|||
|
Unavailable |
|||
|
#9
FOOTREST REAR L/S CPL.
49003250000
|
$31.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
REAR FOOT PED R/S
49003350000
|
|||
|
Unavailable |
|||
|
#10
HEXAGON NUT DIN0934-M10
0934100003
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
engine brac.scr. M10x105 WS13
54603013000
|
$12.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET SCREW
5451005Z000
|
|||
|
Unavailable |
|||
|
#15
HH COLLAR SCREW M8X44 WS13
56530079000
Superseded by 56530079000S
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG 37MM
54606004000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING RING DIN0127-B10
0127100003
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLASTIC CAP SFL10
54403135000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
CHAIN ROLL
50203053100
|
|||
|
Unavailable |
|||
|
#21
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$21.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH collar screw M8x35 TX40
0015080353
Superseded by 0025080356
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING 8.2 X 12 X 6
74003021000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN ROLL D=30MM
50203053000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#25
SELF LOCKING NUT
54310086000
|
|||
|
Unavailable |
|||
|
#26
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLASTIC CAP
42007049000
|
$1.29 | ||
|
Unavailable |
|||
|
#33
LOCK WASHER
35003014000
|
|||
|
Unavailable |
|||
|
#39
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOT PED L/S
54603040100
|
|||
|
Unavailable |
|||
|
#
FOOT PED R/S
54603140100
|
|||
|
Unavailable |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPROCKET COVER
54607061000
|
$16.79 | ||
|
Available to order. Add to View Price |
|||
|
#51
CHAIN SLIDING PLATE 14 T/15 T
54630061000
|
$18.39 | ||
|
Unavailable |
|||
|
#52
clip nut M6
54603048100
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#53
BUSHING 6,5X8X11
54613038150
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#54
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#55
HH collar screw M5x20 TX30
0015050203
Superseded by 0025050206
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#56
COLLAR BUSHING 5 X 10 X 6 ALU
54603073000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#57
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#58
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
