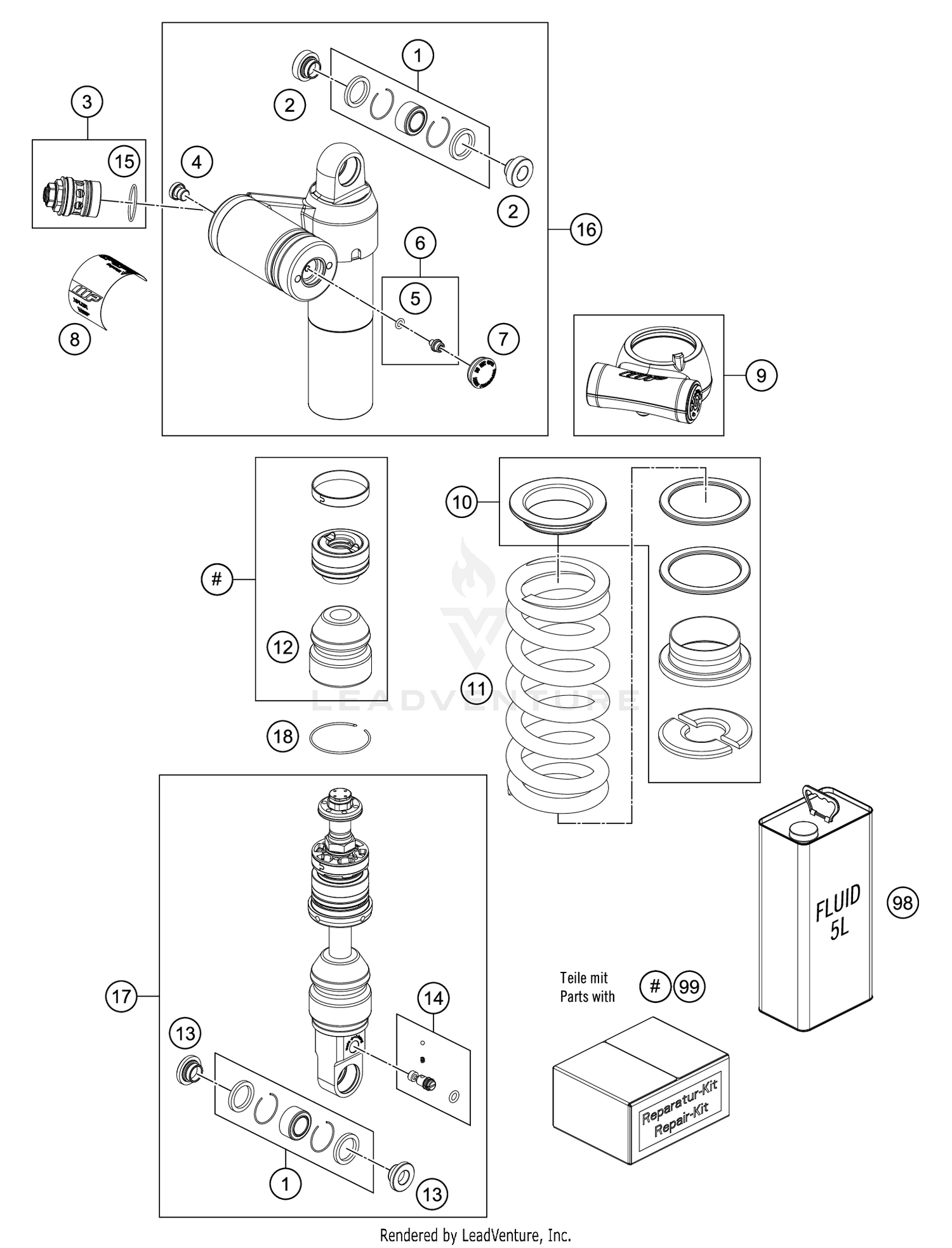

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Bearing bush 12x15/18/24,5x13,5
46180064
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
Compression adjuster cpl. Natural
50180213S28
|
$103.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG SCREW M5X6 CPL.
36120151S
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Sticker set XPLOR PDS 90x40
52000214
|
$37.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
Preload-Adjuster D46mm s10mm right grey
15000S23
|
$290.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
REP. KIT WASHERS
R15020
Superseded by R15020T
|
$61.99 | ||
|
Unavailable |
|||
|
#11
Main Spring (59) 95-210 shock white
91010366
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Rubber pad 17x50x54
50181080
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
Distance bush 12x15/18/24,5x10,5
46180007
|
$20.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
ADJUSTING SCREW M8X0,5 CPL.
50181094S
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-ring 27x1,5 Viton70 green ISO 3601-3S
50180217
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
shock upper part KTM 790 ADV R 19
46181324S1
|
$547.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
shock bottom part KTM 790 ADV R 19
46181327S1
|
$547.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
Distance bush 10x15/18/24,5x10,5
46180010
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Repair kit ADV. R
RP10013
Superseded by RP10013T
|
$97.01 | ||
|
Unavailable |
|||
