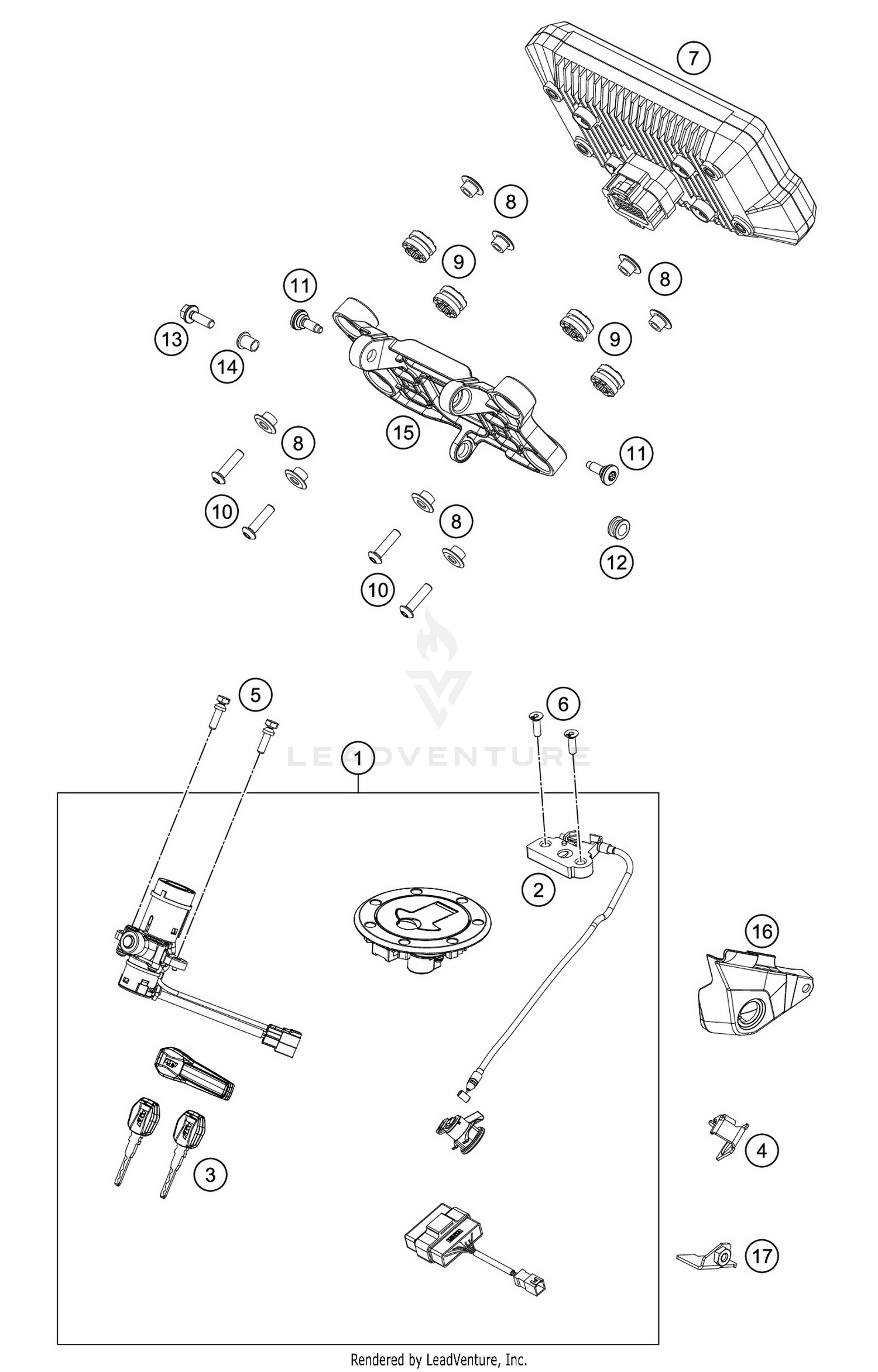

Instruments / Lock System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Lockset cpl.
63511066044
|
$405.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
Seat lever assy
63507050000
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
Blank Key KTM
64111067010
|
$37.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cable Bracket Lock
64107051000
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
Tear-off screw M6 ignition lock ISA30 MK
76011064000
Superseded by 76011064200
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Dashboard
63514069100
|
$1,493.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bushing
60714069050
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMP. COMPONENT SPEEDOMETER
61314069051
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
Lens head screw ISO 7380-M5X20A2
0738050202
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
special screw M5x17
69008021060
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
rubber bush windshield fixation
60708008070
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Collar bushing 5.3x7x10x10
63514011010
Superseded by 63514011110
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Instrument support
63514062000
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
Lock cover
63507050050
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
retaining bracket immobilizer cpl.
6351401006033
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
