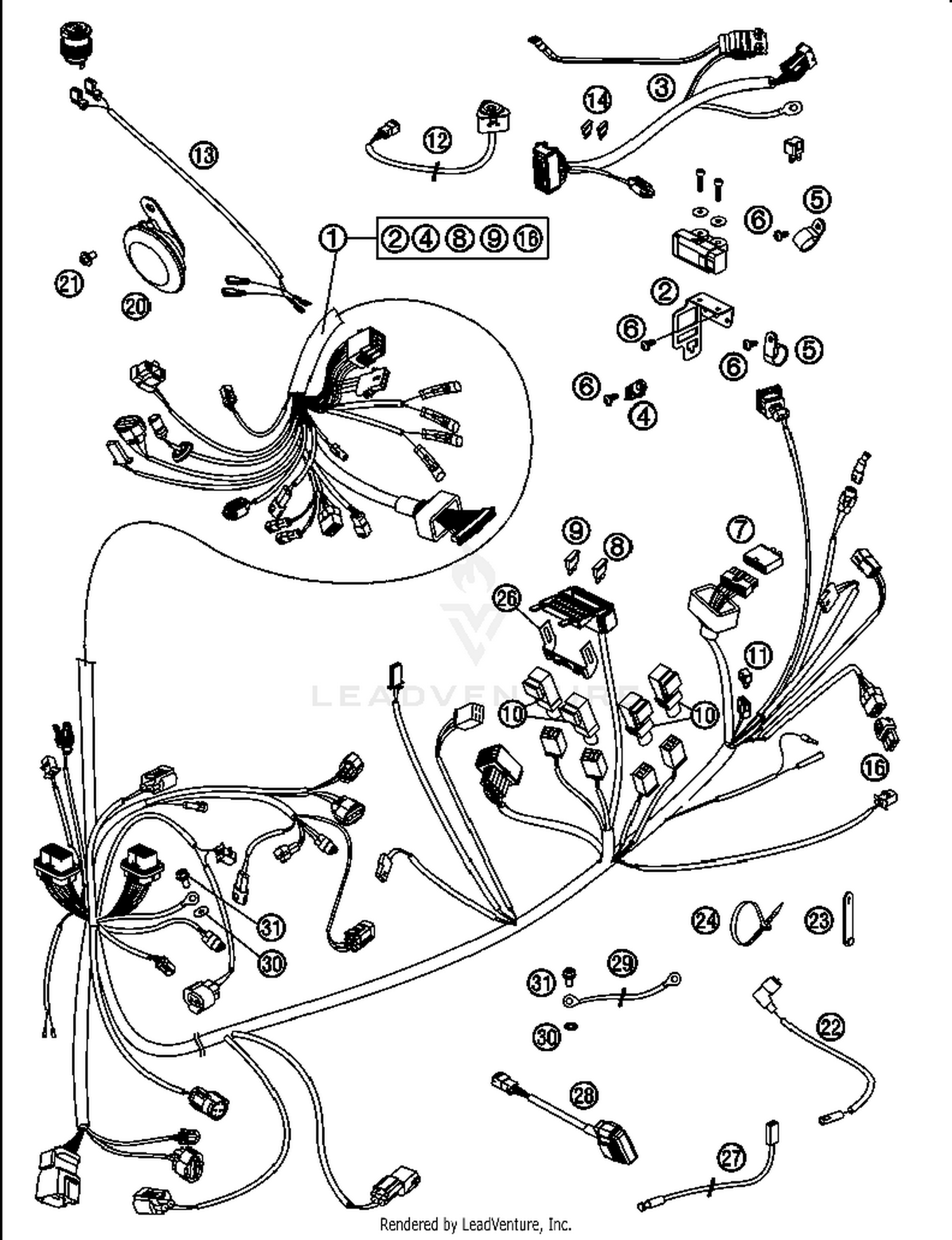

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN WIRING HARNESS
62111075000
|
$959.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG SUPPORT PANEL
62011083000
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRING HARNESS ABS
62111079000
|
$303.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET CABELFIXING
62011094000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
PVC CLAMP 17,4MM HEYCO 3381
57013070400
|
|||
|
Unavailable |
|||
|
#6
EJOT PT screw K50x12
0081050121
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUMMY PLUG ALARM SYSTEM 05
61011075020
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE 15A 07
75011088015
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE 10A 07
75011088010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIODE S3H-15 97
58411096100
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HAZARD WARNING BUTTON
60211022000
|
$176.32 | ||
|
Unavailable |
|||
|
#13
CABLE FOR SOCKET SMT
62111042060
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE 30 A
58011109130
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARE CONNECTOR BH 6-PINS
000700000BH
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
DC HORN 05
62511060000
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH collar screw M6x15 TX30
0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#22
OIL-PRESSURE SWITCH CABLE 03
60011092000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET FUSE BOX
62111087060
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#27
TEMPERATURE SENSOR
61111018000
Superseded by 61111018100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
STARTER INTERLOCK
61111020000
|
$115.16 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROUND CABLE 100MM 06
60111097000
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#30
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH collar screw M6x10 TX30
0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
