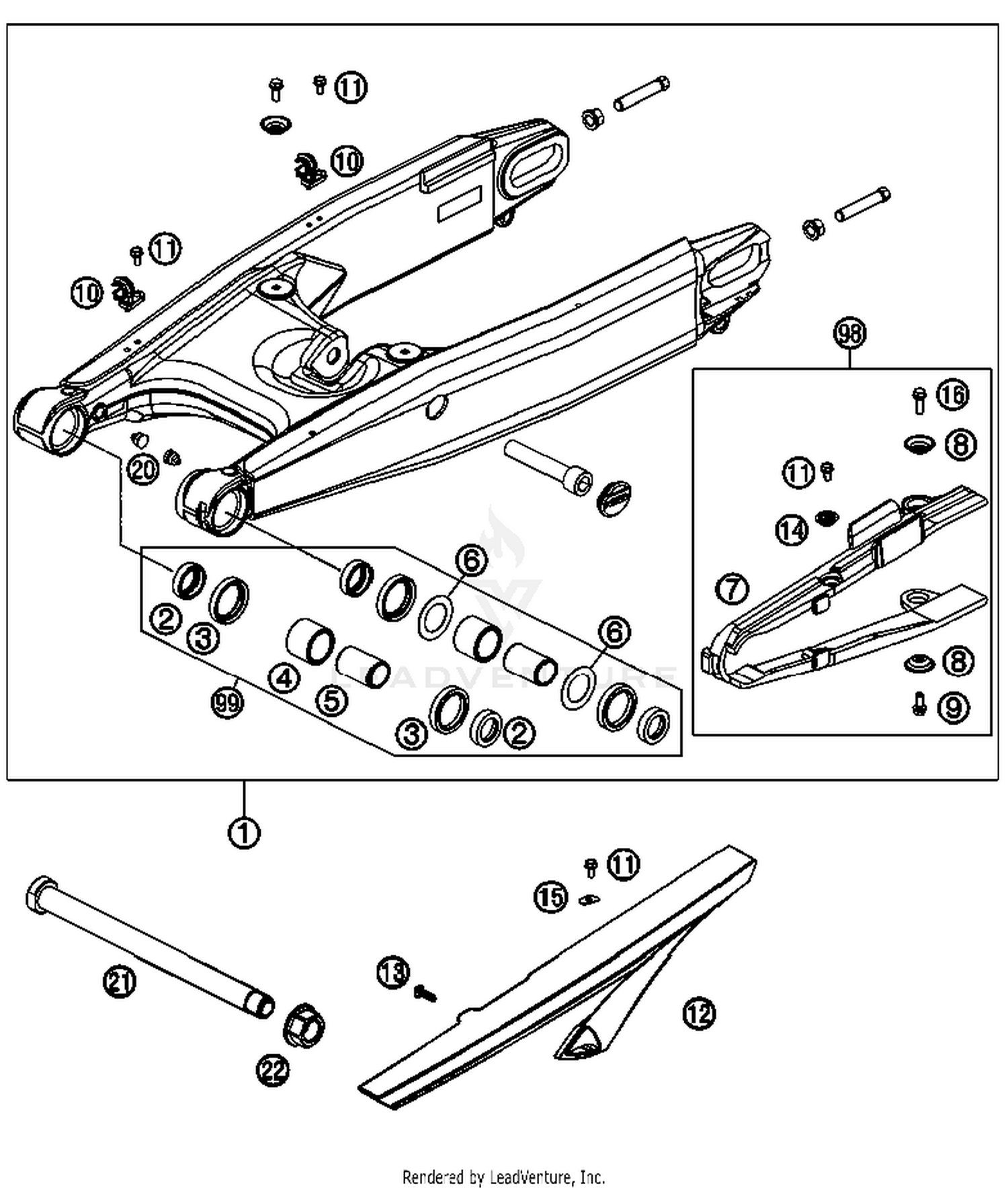

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWING ARM CPL. SM-R SD-R 07
6100403004433
|
$1,543.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUCKET F. SHAFT SEAL RING 03
60004034000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT SEAL RING 30X40X7
0760304073
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
INNER RING JR20X25X38,5 03
60004032000
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLE BUSH HK2526B 03
60004031000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP DISK 03
60004033000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN SLID.GUARD SWINGARM 10
63004066100
|
$32.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUCKET
72210079000
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
RET. CLAMP F. BRAKE HOSE
60104042000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#12
CHAINGUARD 05
61004060000
|
$11.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BUSH FOR CHAINSLIDER GUARD 02
46104066050
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER CHAINGUARD 05
61004060050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG SFL12 GREY 05
60004042000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWINGARM BOLT CPL.
60004037244
|
$71.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR NUT M19X1,5 SW=27MM
60004038000
Superseded by 60004038200
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#98
CHAIN GUARD KIT
60004066110
|
$44.98 | ||
|
Available to order. Add to View Price |
|||
|
#99
SWINGARM REP. KIT
60004230010
|
$101.85 | ||
|
Available to order. Add to View Price |
|||
