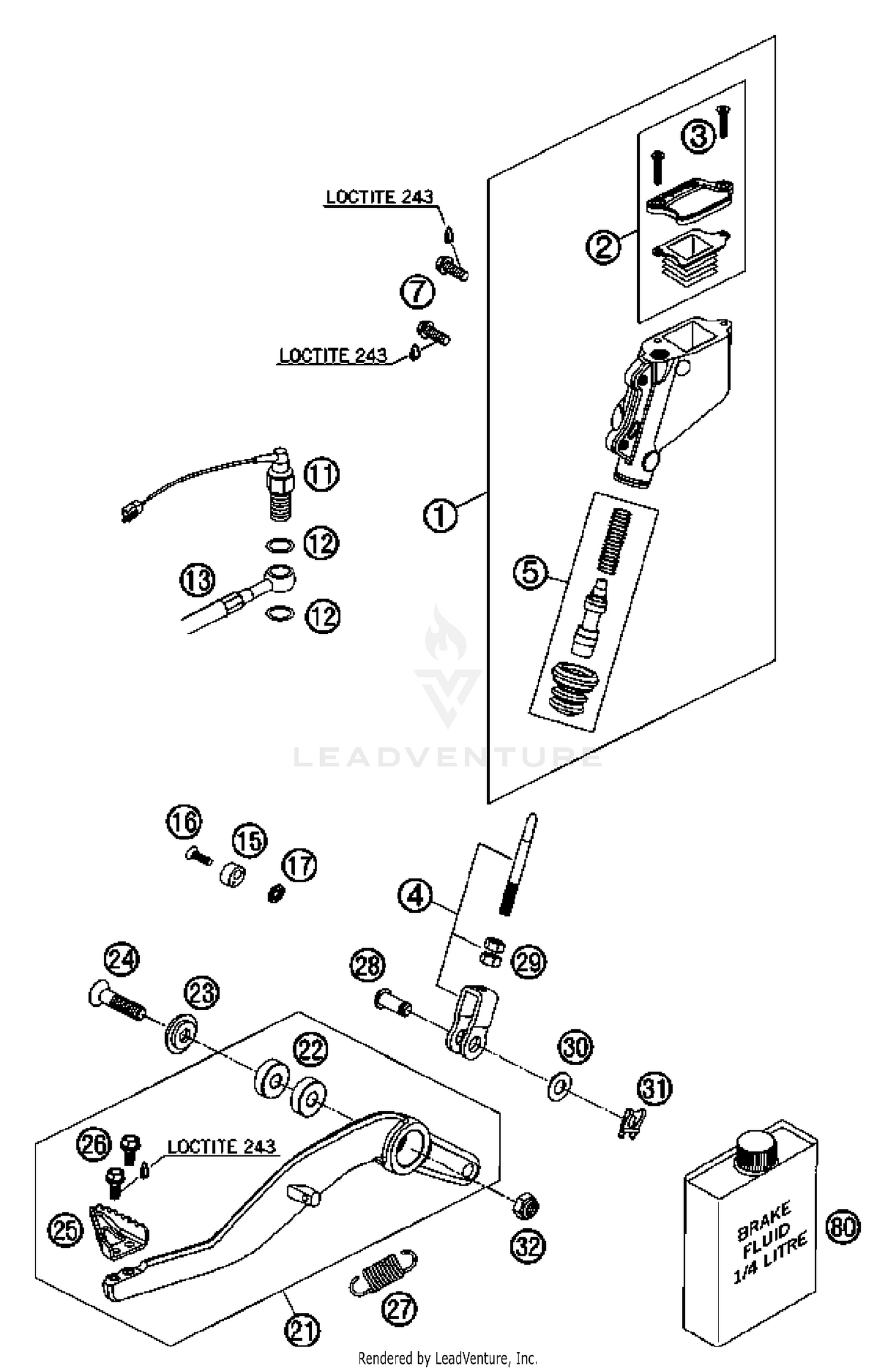

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN BRAKE CYLINDER CPL. 07
60013060100
Superseded by 60013060300
|
$239.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER MAIN BRAKE CYLINDER CPL.
60013059000
Superseded by 60013059100
|
$48.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLAT HEAD SCREW DIN0965-M 4X16
0965040161
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PUSH ROD CPL. 06
63013056044
|
$28.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
REPAIR KIT PISTON 03
60013061000
|
$58.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKE HOSE REAR 05
62513072000
|
$104.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRAKE LEVER STOP LC4 03
58413048000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOT BRAKE LEVER CPL. 07
60013050044
Superseded by 6001305004401S
|
$137.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPECIAL WASHER 8X24 ALU H=2,6
60003061000
Superseded by 62603062000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#25
STEP PLATE FOOT BRAKE LEVER 03
60013051000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
HH collar screw M5x12 TX30
0015050123
Superseded by 0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT F. LINK FORK 8X20X16,5
60013057000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SECURING CLIP D=8MM 03
60013058000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SELF LOCKING NUT DIN0985-M 8
0985080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
BRAKE FLUID DOT 4.0
306054
|
|||
|
Unavailable |
|||
