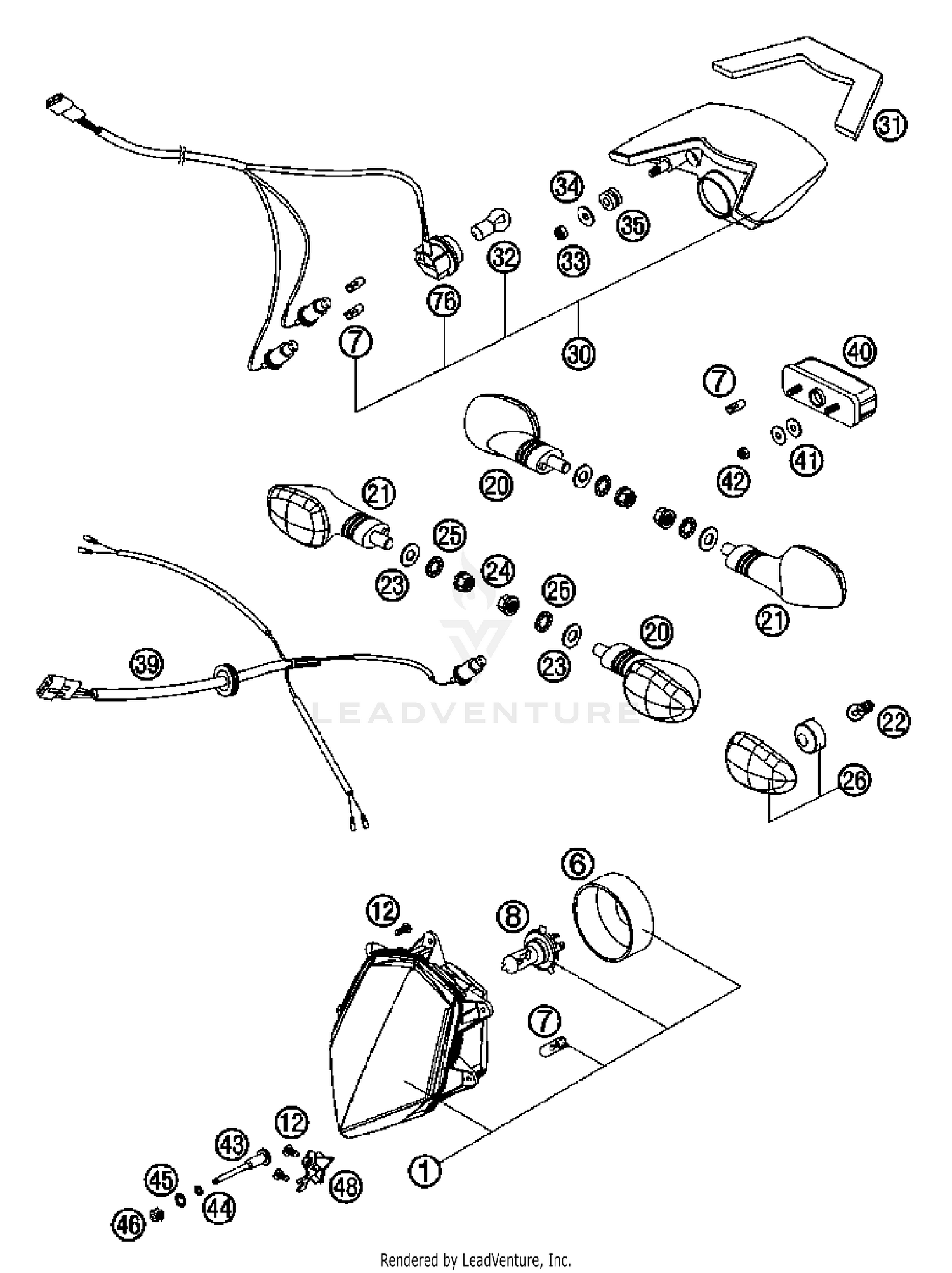

Lighting System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD LIGHT USA 05
58614001200
|
$127.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER CAP FOR HEAD LIGHT 05
58614001050
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB 12V 5W (W2,1X9,5D) PHIL.
49011435100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB H4 12V 60/55W (P43T)
57111038000
|
$51.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
EJOT PT screw K50x12
0016050121
Superseded by 0081050121
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FLASHER CPL.FRONT L/S REAR R/S
58414025100
|
$35.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
FLASHER CPL.FRONT R/S REAR L/S
58414026100
|
$34.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULB 12V 10W (BA15S)
44111015100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
LOCK WASHER DIN6797-J10,5 ZI
0797100003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
FLASHER LENS L/S & R/S 02
58414028100
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
REAR LIGHT CPL. RED 05
58614040044
|
$107.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
METAMOLL FOR REARLIGHT 05
58614040050
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
BULB 12V 21W
60014048000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
WASHER DIN9021-A 6,4
0021060003
|
$2.99 | ||
|
Unavailable |
|||
|
#35
rubber grommet 16x10.8x3
58214069051
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
WIRING HARNESS REAR 05
62511076000
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#40
LICENSE-PLATE ILLUMINATION '98
58414047000
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#41
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
ADJ. SCREW HEAD LIGHT 06
58614021100
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING 8X2 SILICONE
0770080020
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
CLAMPRING F. HEAD LIGHT ADJ.
58614024000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
ADJUSTINGNUT F. HEAD L. ADJ.05
58614018000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
TAB HEAD LIGHT ADJ. 05
62514063050
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#76
CABLE HARNESS REAR PART 05
58611076100
|
$55.54 | ||
|
Available to order. Add to View Price |
|||
