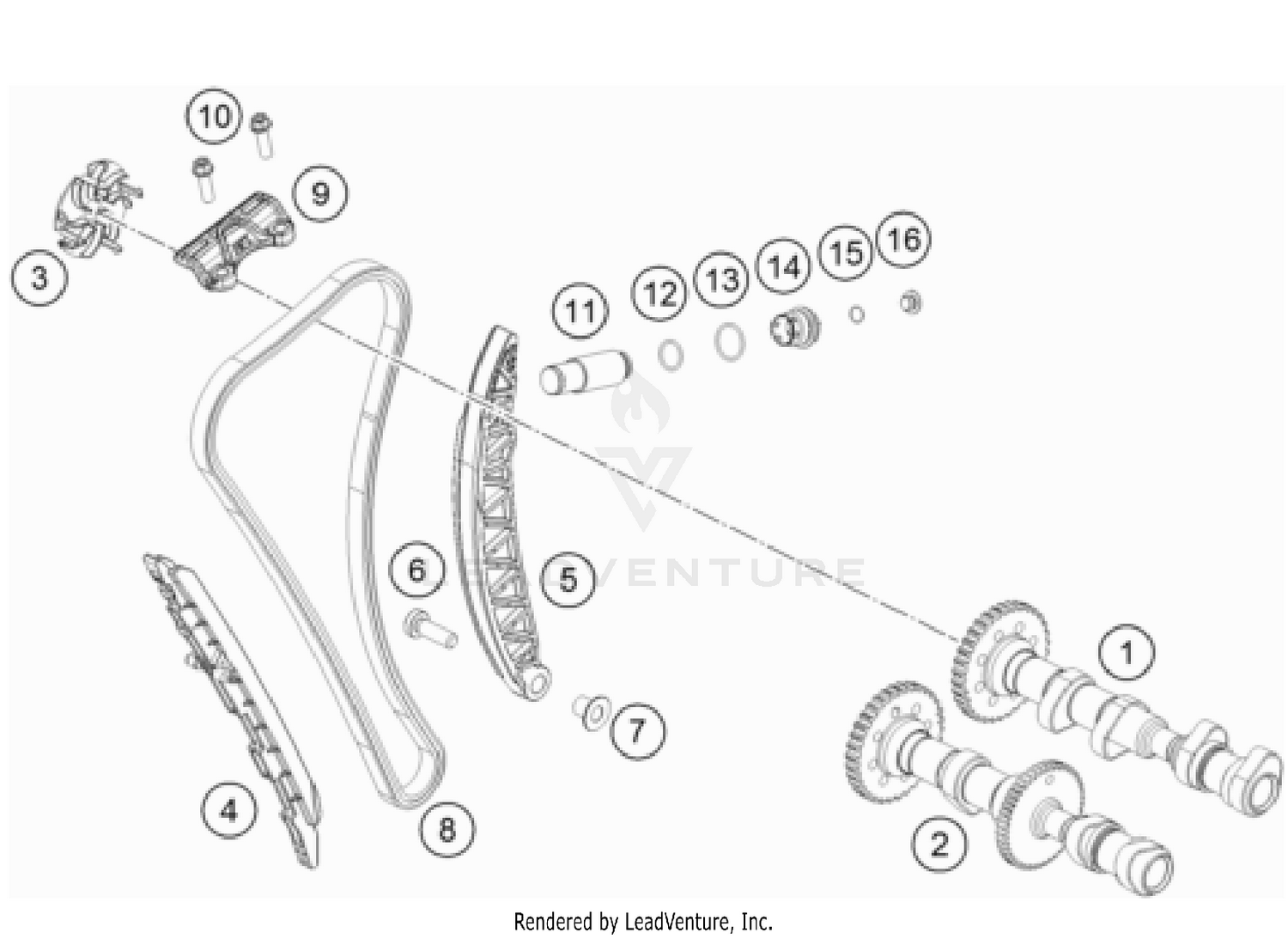

Timing Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Camshaft inlet valve cmpl.
63636009044
|
$372.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
Camshaft exhaust valve cmpl.
63636010044
|
$449.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
venting centrifuge
63536080000
Superseded by 63536080100
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
slide bars
63536001000
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
Slide rail
63636002000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
ISA collar screw M8x25 ISA45
0035080256S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Collar bush Ø8xØ10x13.2
63536002150
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
Timing chain
63636013000
Superseded by 63636013100
|
$62.03 | ||
|
Unavailable |
|||
|
#9
slide bars, top cpl.
63536005000
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M6x20 TX30
0025060206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
chain tension adjuster
77036003100
|
$75.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
o-ring 18.00x2.00 NBR70
0770180020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
o-ring 22.00x2.00 NBR70
0770220020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
chain tension adjuster plug cpl.
61236008200
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
o-ring 10.00x1.00 NBR70
0770010010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW PLUG
77236080100
Superseded by 77236080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
