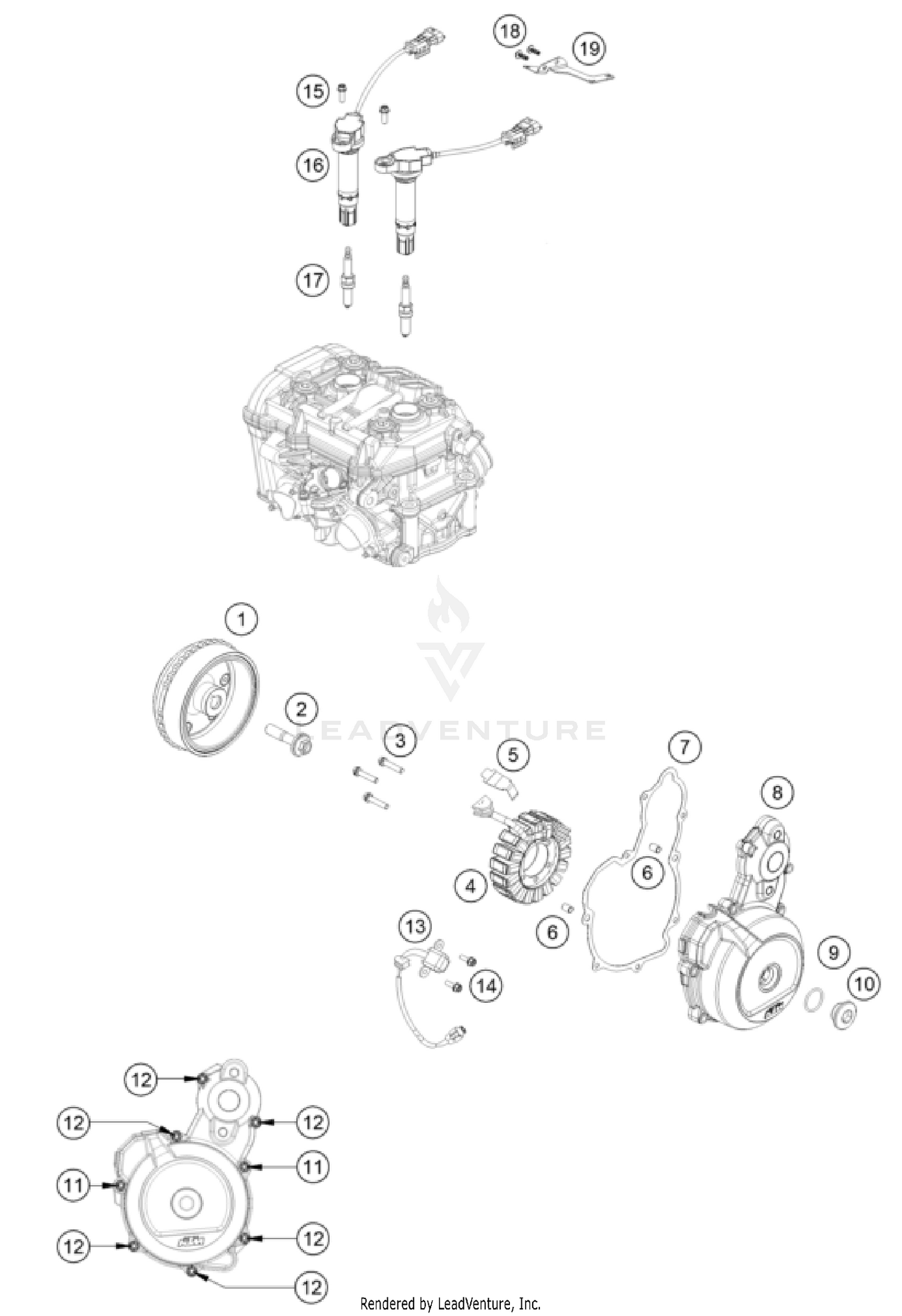

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rotor
63539005200
|
$315.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
special screw M12x1.5 WS15
60339003000
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M6x30 TX30
0025060306S
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Stator
63539004200
|
$138.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
generator line bracket
60039040020
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Dowel, 6x8x11.5
59030023100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ignition cover gasket
63530040000
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
Generator Cover
6353000200041
|
$94.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
o-ring 24.00x2.50 Viton
07700240251
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
threaded plug M24x1.5 PA 6.6
6003009400030
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M6x35 TX30
0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
pulse generator KOKUSAN 4K3-A/B
59039034000
|
$105.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH Collar Screw M5x16 ISA30 SS
0025050166S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Stick coil
63539006000
Superseded by 63539006100
|
$130.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
spark plug NGK LMAR9AI-10
77839093000
|
$26.72 | ||
|
Unavailable |
|||
|
#18
EJOT PT screw K50x14
0081050141
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Retaining bracket stick coil connector
64111038000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
