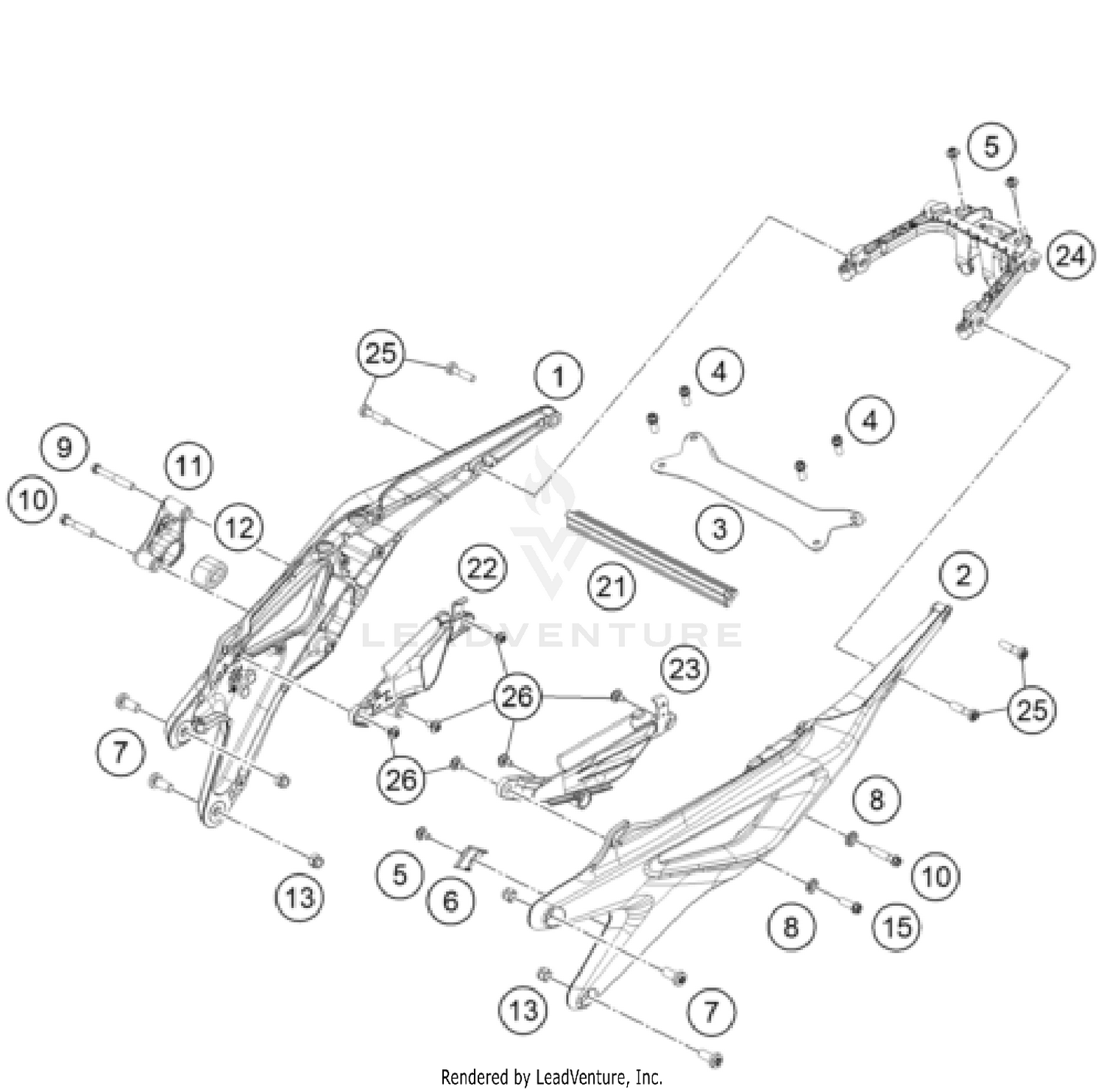

Subframe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Subframe right black
64103002006C1
|
$363.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
Subframe left black
64103002005C1
|
$368.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
Cross member
6410300200430
|
$226.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
HH collar screw M8x18 ISA40 SS
0025080186S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
special screw M6x12x3
83008000012
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
cable holder
64103002010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHCS M10x30 TX45
0035100309S
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER F. STEERING DAMPER RC8
69012060060
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex collar screw M8x60 ISA 40 SS
0025080606S
|
$4.99 | ||
|
Unavailable |
|||
|
#10
HH COLLAR SCREW M8X45 ISA40
0025080456S
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
silencer bracket
6410598800033S
|
$108.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPING RUBBER
61305068000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
Brace subframe
64103004100
|
$32.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
Cover inlet port right
64106041050
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
Cover inlet port left
64106040050
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
rear reinforcement
64108019050
|
$126.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW M8X35 ISA45 SS
0035080356S
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPECIAL SCREW M6X15X3
83008000015
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
