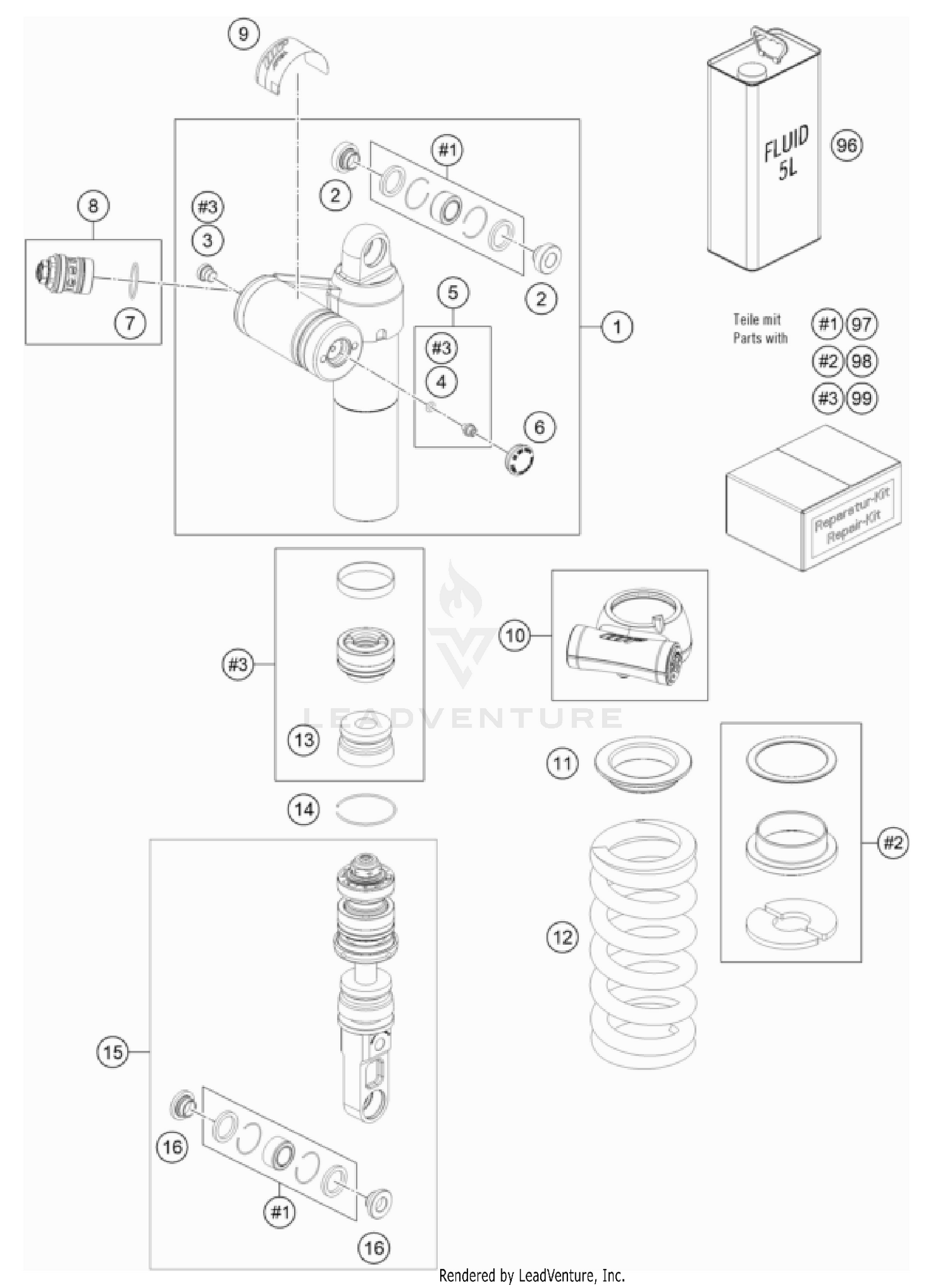

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Shock upper part
46181296S1
|
$526.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bearing bush 12x15/18/24,5x13,5
46180064
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG SCREW M5X6 CPL.
36120151S
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-ring 27x1,5 Viton70 green ISO 3601-3S
50180217
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
Compression adjuster cpl.black
50180213S31
|
$121.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
Sticker APEX 90x29
52000213
|
$40.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
PA cpl. KTM
15000O21
|
$389.61 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spring retainer 52,5x78x3
14460661
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
Main spring (59) 138-195 damper, white
91010427
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
main spring (59) 150-195 shock white
91010406
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Main spring (59) 162-195 damper, white
91010428
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rubber pad 17,2x45,2x30 black
46180365
|
$66.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
Round-wire snap ring 49x1,8
46810010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
Shock bottom part
46181286S1
|
$541.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
Distance bush 12x15/18/24,5x10,5
46180007
|
$20.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#96
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#98
Repair kit spring retainer
RP10023
|
$76.55 | ||
|
Available to order. Add to View Price |
|||
|
#99
REPAIR-KIT GASKET 05
R15002
Superseded by R15002T
|
$94.15 | ||
|
Unavailable |
|||
