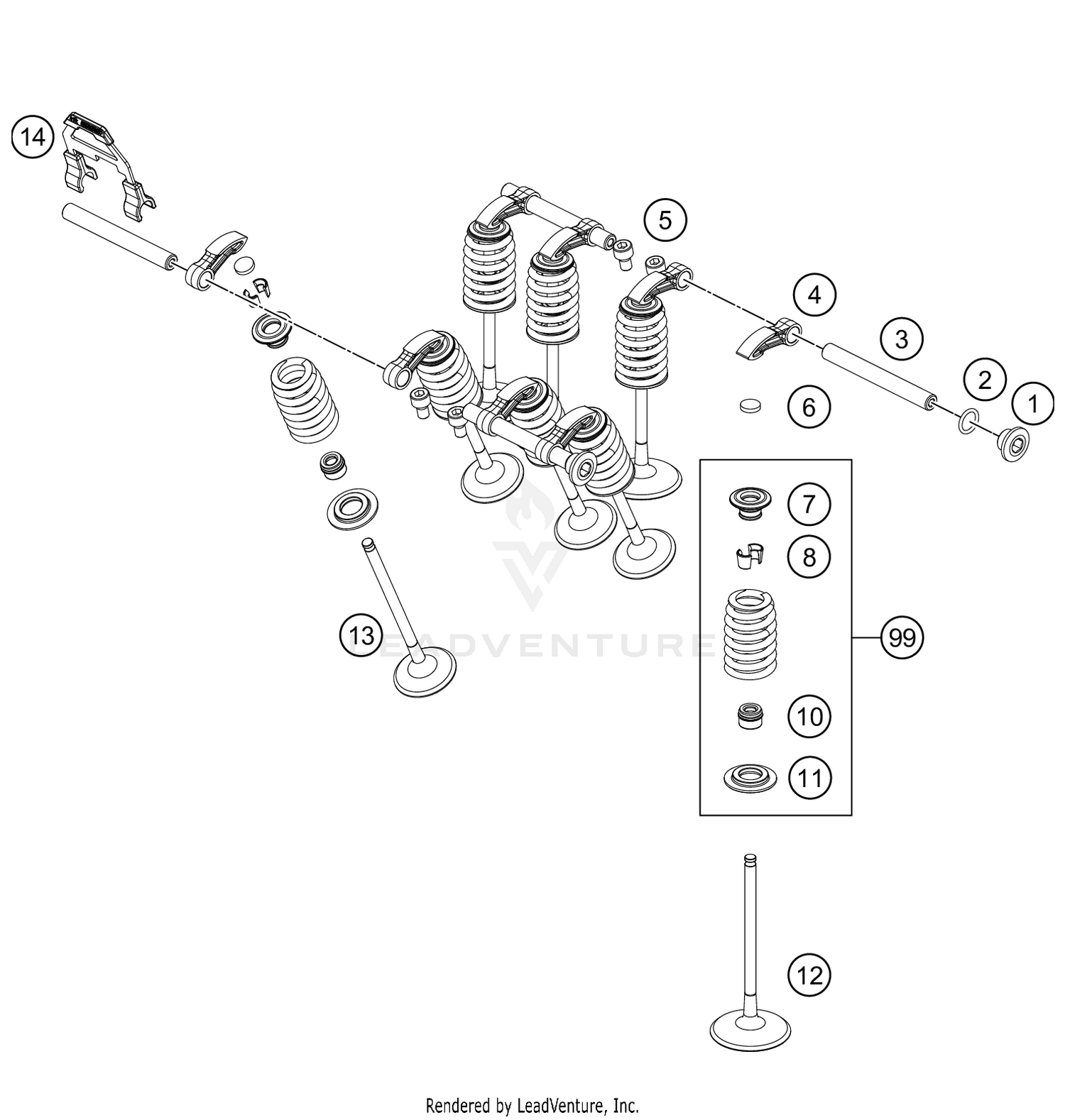

Valve Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW PLUG
77236080100
Superseded by 77236080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING 9x1,5 V80 SH
07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
cam follower shaft
63536056000
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cam follower
63536060000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cap head screw, ISO 14579, M5x8-10.9
014579050086S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/1,72
77036035172
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/1,76
77036035176
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/1,80
77036035180
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/1,84
77036035184
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHIM D=8,9/1,88
77036035188
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/1,92
77036035192
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHIM D=8,9/1,96
77036035196
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,00
77036035200
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,04
77036035204
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,08
77036035208
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHIM D=8,9/2,12
77036035212
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,16
77036035216
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,20
77036035220
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHIM D=8,9/2,24
77036035224
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHIM D=8,9/2,28
77036035228
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,32
77036035232
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,36
77036035236
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,40
77036035240
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,44
77036035244
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,48
77036035248
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,52
77036035252
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,56
77036035256
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM D=8,9/2,60
77036035260
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
valve spring retainer
63536032100
|
$17.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
valve collet
77036033000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
valve stem seal
90236027000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
Seat valve spring
63536036000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
inlet valve
63636130000
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
exhaust valve
63636131000
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
cam follower clip
63536056050
|
$7.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
VALVE SPRING KIT
63636028044
|
$49.49 | ||
|
Available to order. Add to View Price |
|||
