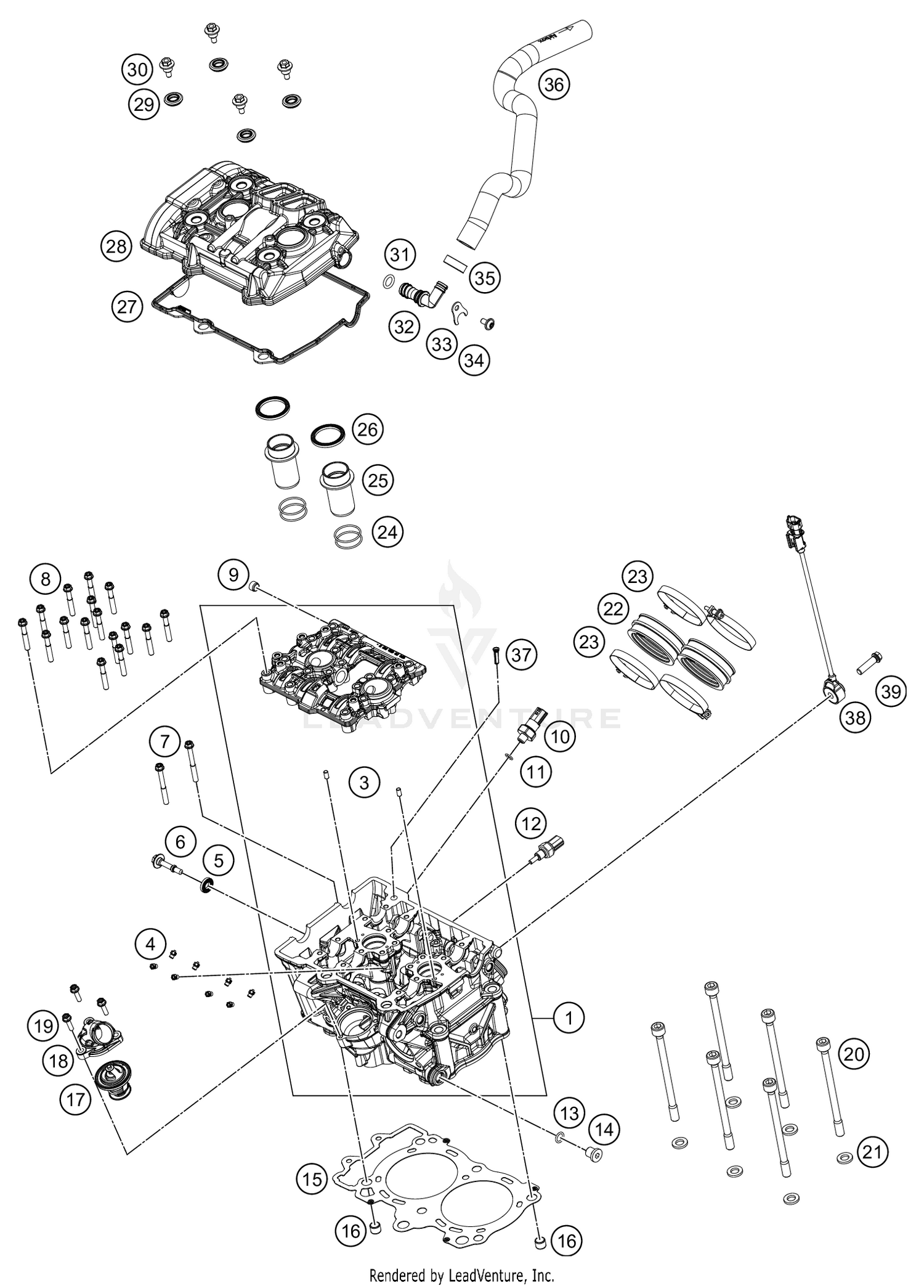

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cylinder head cmpl.
6363602000024
Superseded by 6363602004424
|
$1,074.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
needle roller DIN 5402 5x9.8
0402050980
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
decoupling element
75036052010
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
valve mechanism cover screw
75036055000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M6x55 TX30
0025060556
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH collar screw M6x40 ISA30
0025060405
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
pipe plug DIN 906 M10x1
0906100100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Oil pressure switch cpl. Bitron
61238091100
Superseded by 61238091144
|
$39.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING 9x1,5 V80 SH
07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
water temperature sensor
79435047000
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
o-ring 10.00x2.00 silicone
0770100020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
threaded plug DIN 908 M12x1.5
0908120153
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cylinder head gasket
63630136000
|
$79.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
dowl sleeve 10.2x12.5x10
58530014100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Thermostat
63635017000
|
$55.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
Water connection
63535019100
Superseded by 63535019200
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH Collar Screw M5x16 ISA30 SS
0025050166S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
cylinder head bolt M10x1.25 L=138
78630044000
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
washer 19x10.5x2.5
77336089010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Intake Sleeve
63536044000
|
$32.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
hose clamp Gemi 66
61236048000
|
$11.21 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING 29,87X1,78 VITON
0770298178
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spark plug shaft insert
63536075000
Superseded by 63536175000
|
$14.29 | ||
|
Unavailable |
|||
|
#26
Spark plug shaft seal
61136075050
Superseded by 61136175050
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Valve cover seal
63536053000
Superseded by 63536053100
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#28
Valve mechanism cover
6353605200033
Superseded by 63536052100C1
|
$120.11 | ||
|
Available to order. Add to View Price |
|||
|
#29
Sealing element
77036054150
Superseded by 77036054250
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
VALVE COVER SCREW
77336054150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING 12,00X3,0 VITON 75
0770012030
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
bleeder connector
63536081000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
connecting angle retaining plate
61236082150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
EJOT ALtracs 60x12 TX30
0080060123
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
VARIABLE ONE-EAR CLAMP 19,8MM
00050198706
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Pre-formed hose engine breather
63530087000
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
|
#37
Oil screen
61738016000
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#38
Knock control sensor
63641038000
|
$85.13 | ||
|
Available to order. Add to View Price |
|||
|
#39
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
