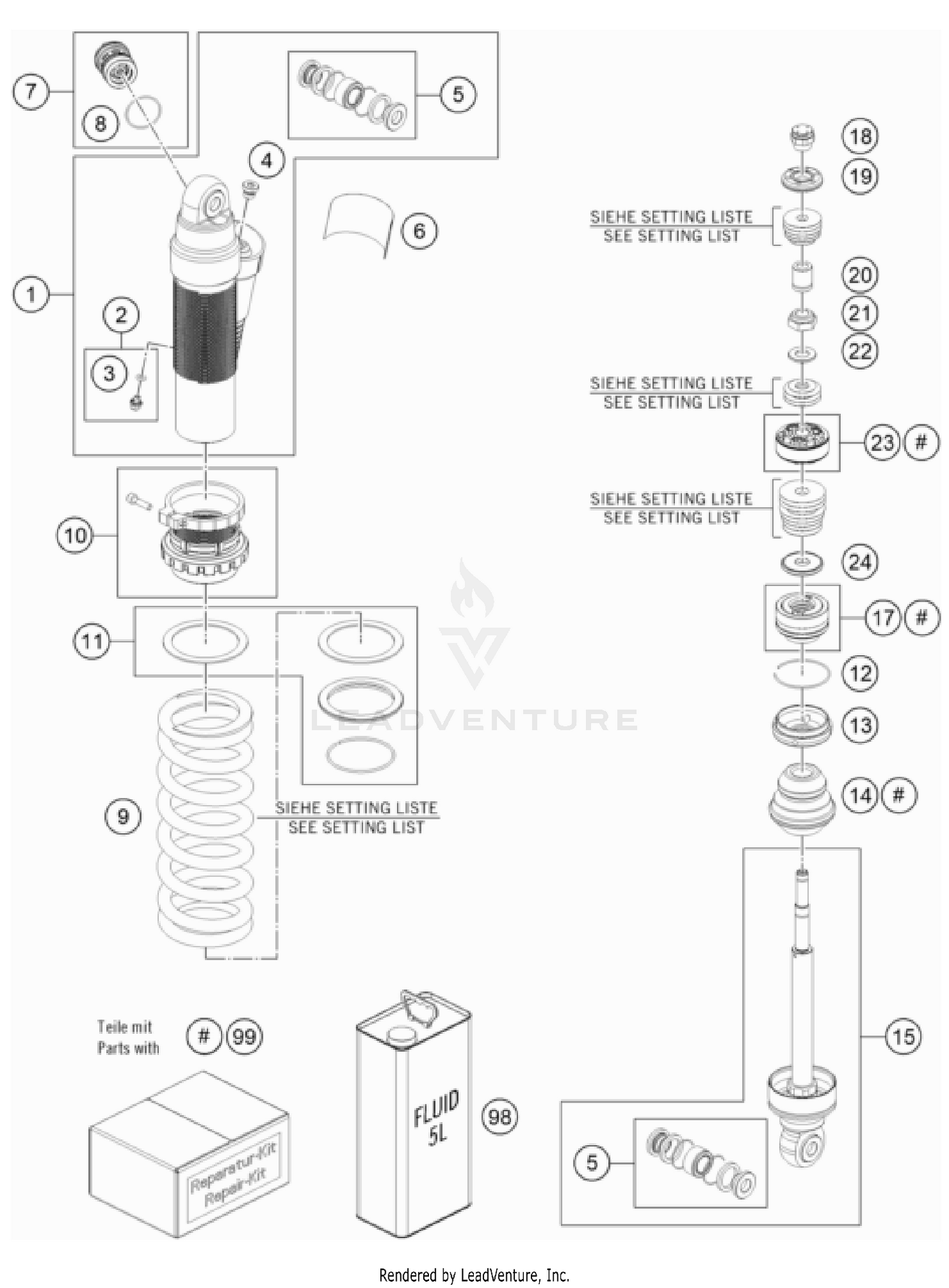

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Monoshock case M53x1 with pipe cpl.
46181242S6
|
$345.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG SCREW M5X6 CPL.
36120151S
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Ball joint bearing kit 12mm
RP10011
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Sticker XACT 85 SX
52000230
|
$37.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
Compression cpl.
50181101S40
|
$109.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-ring 27x1,5 Viton70 green ISO 3601-3S
50180217
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING (59) 215 30 N/MM
91010271S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING (59) 215 35 N/MM D=9,25
91010240S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING (59) 215 40 N/MM D=9,5
91010161S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Mainspring (59) 45-215 damper white
91010201
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Mainspring (59) 50-215 damper white
91010080
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 55 N/MM
91010170S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Plastic Spring Retainer D46 cpl.
46181382S
|
$38.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING CUP SET PDS 17
RP10005
|
$38.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
Round-wire snap ring 49x1,8
46810010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
Cover 46,12x15 h5,5 red
46181351
|
$32.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
Rubber pad 17x48x55
46181237
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bottom part M18x1 h54,5 cpl.
46181301S3
|
$309.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
Sealholder 46x28 cpl.
46180669S
Superseded by S614620000S0100
|
$83.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
Nut PDS M10x1 h17,2 WAF19 cpl.
46181365S
Superseded by 46181659S
|
$67.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
Piston 15,4x35,4x6
46181416
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bushing 10x17x21
46181561
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
Piston rod nut M12x1
46810474
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
Washer 12x24x2,5
46811258
|
$29.14 | ||
|
Available to order. Add to View Price |
|||
|
#23
Piston 12x46x20 cpl.
46181328S
|
$80.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
Rebound disc 12x36x4 h0
46181194
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Repairing kit shock absorber PDS 19
RP10020
Superseded by RP10020T
|
$142.99 | ||
|
Unavailable |
|||
