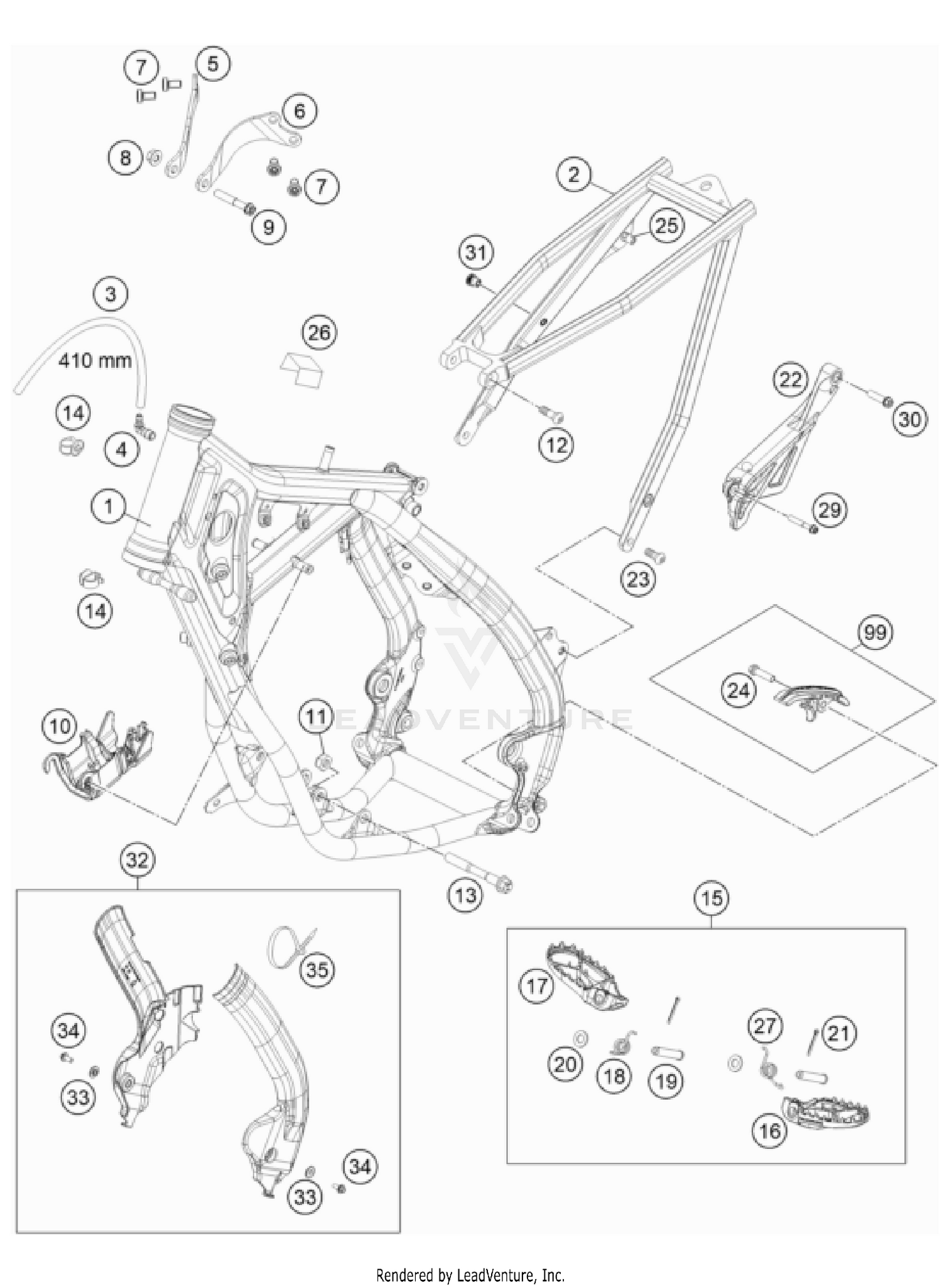

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Frame 472T3
47203001200EB
|
$2,074.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
Subframe
47203002000
|
$312.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
PVC-HOSE 6X9
50335030001
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
ANGLE PIECE 90 DEGREE M10X1
51030022000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
MOTORSTREBE RECHTS
47203014000
|
$19.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
Motorbracket left
47203013000
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
AH-COLLAR SCREW M8X15 TORX45
0035080156S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HH collar screw M8x50 TX40
0025080506
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Cable compartment
47211095000
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
ENGINE BRACKET SCREW 85 SX
47003013000
|
$9.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WIRING HOLDER 16MM
57013072100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FOOT PEGS SET CPL. 2016
79003040033
|
$119.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
FOOTREST L/S 2016
79003040000
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST R/S 2016
79003041000
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST SPRING R/S 2016
79003044000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Front sprocket cover
47203096000
Superseded by 47203096100
|
$31.89 | ||
|
Unavailable |
|||
|
#23
SPECIAL SCREW M8X18 TORX45 SS
79003003000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BLIND RIVET NUT EM6-60LF/HX
77303139000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FOOTREST SPRING L/S 2016
79003045000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BLIND RIVET NUT M6 KNURLED
79003002080
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Frame protector set
47203094000EB
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BUSH F. FRAME PROTECTION 03
54803092060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HH COLLAR SCREW M 5X12 WS=6
0014050123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
CHAIN SLIDING KIT BELOW CPL.16
79003053010
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
