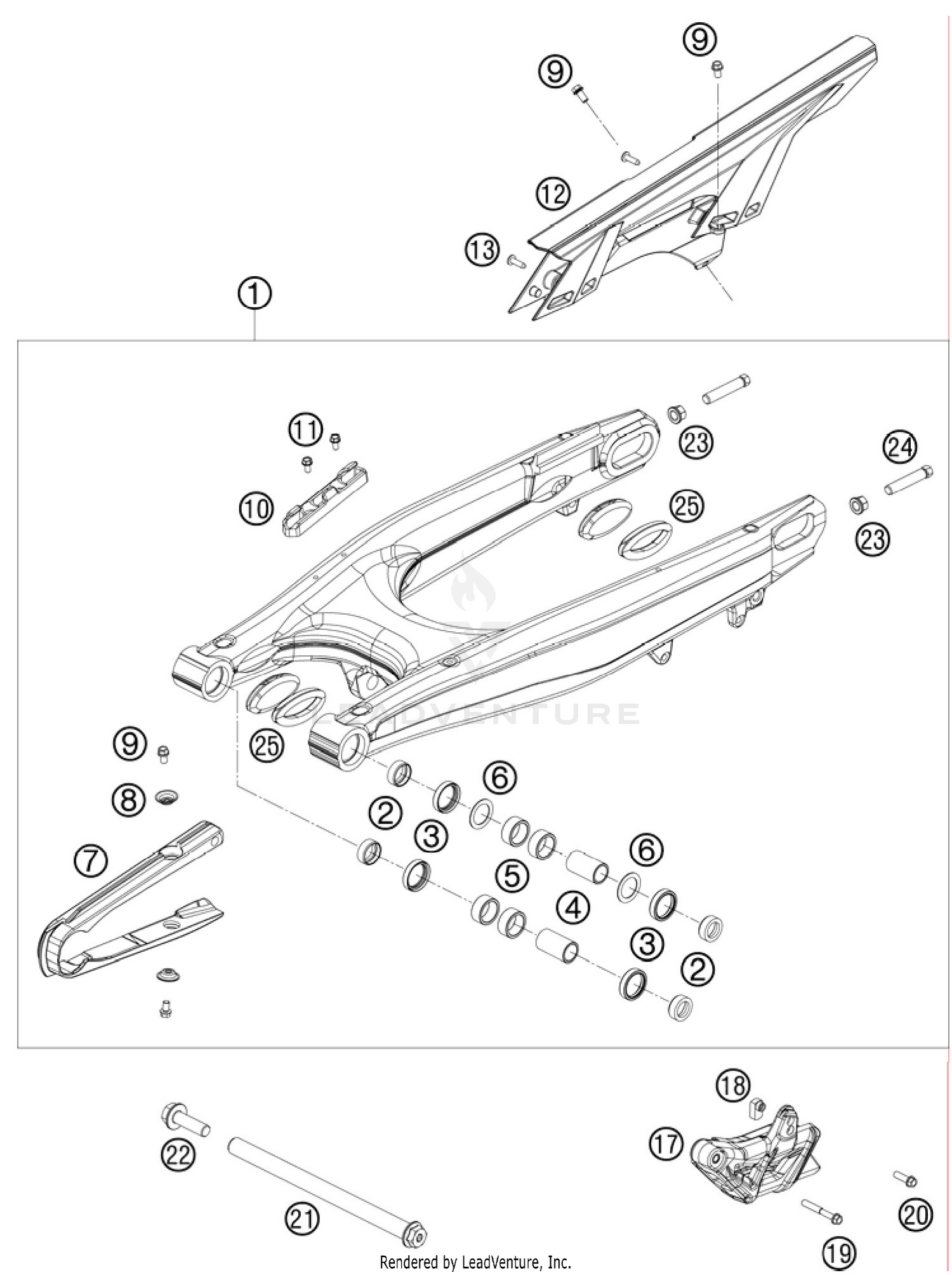

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
swing arm cpl.
76504030144
Superseded by 76904030044
|
$886.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUCKET FOR SHAFT SEAL RING
76504034000
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
radial shaft seal 25x32x7
0760253270
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING SLEEVE 17X22X38,7 03
59404032000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLEBEAR HK2212V 22/28/12 MB
59004031200
Superseded by 0618222812
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
stop disc 22.2/31.7/1
54603036000
Superseded by 63533032000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN SLIDING GUARD 07
76504066000
|
$19.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
Chain slider bushing
77304066050
Superseded by 77304066150
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BRAKE LINE GUIDE 08
76504042000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
EJOT SPIRAL SCREW SF M5X10-K
0009050103
Superseded by 0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#12
CHAIN GUARD 08
76504060000
|
$19.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW FOR PLASTIC K50X18 T20
0081500181
Superseded by 0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CHAIN GUIDE CPL.
78004070100
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
INSERTION NUT F. CHAIN GUIDE
77304070030
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH COLLAR SCREW M6X45 TX30
0025060456
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Swingarm pivot, L=246, M12x1.5
75304037044
Superseded by 75304037144
|
$78.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPECIAL SCREW M12X40 SW19
76504038000
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
screw M10x1.25x50 WS10
50304040100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLOSING COVER SWINGARM SM 03
58404041000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
