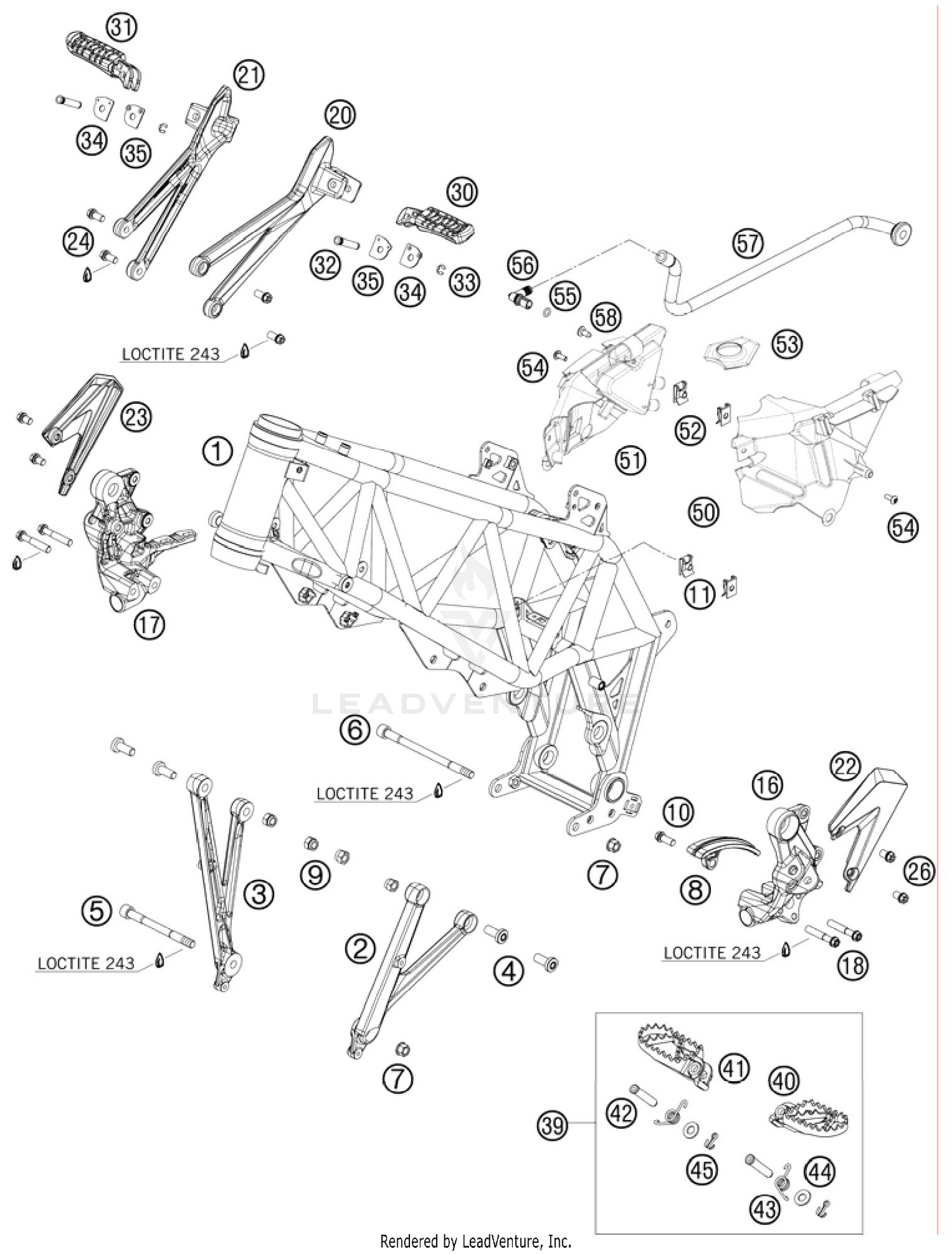

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ''765KA'' ORANGE
7650300100004
Superseded by 7650300110004
|
$1,868.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
ENGINE SUPPORT LEFT SIDE 08
7650300500001S
|
$116.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
ENGINE SUPPORT RIGHT SIDE 08
7650300600001S
|
$94.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHCS M10x24 TX45
0035100249
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPECIAL SCREW M10X115 ISK8 07
75003015000
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPECIAL SCREW M10X152 ISK8 07
75003014000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CHAIN SLID. GUARD 08
76504067000
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M8x20
0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RANGE CHANGE METAL NUT M4
54603048500
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FOOTREST BRACKET L/S 08
7650303804401S
|
$154.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH collar screw M8x45 TX40
0025080456
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOT REST BRACKET REAR L/S
7650304800001S
|
$151.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOT REST BRACKET REAR R/S
7650304900001S
|
$107.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
HEEL PROTECTOR LS 09
76503038150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
HEEL PROTECTOR RS 08
76503039050
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#24
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HH collar screw M8x12 TX40
0025080126
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FOOTREST CPL. L/S REAR 03
60003050000
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOOTREST CPL. R/S REAR 03
60003051000
|
$72.81 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT FOR FOOTREST REAR 03
60003044000
|
$10.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
retaining washer DIN 6799 - 6
0799060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
FOOTREST L/S + R/S CPL. 09
76503040033
Superseded by 78003040033
|
$136.50 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#41
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN FOR FOOT PED 51.5X9.8 MM
76503044000
Superseded by 54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#43
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
COVER FRAME L/S
76503083100
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#51
COVER FRAME R/S
76503084100
|
$190.69 | ||
|
Available to order. Add to View Price |
|||
|
#52
clip nut M5
69008021080
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
COVER FOR IGNITION LOCK
76503085000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#54
SCREW M5X14 TORX 25 07
58605083014
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
O-RING 8X2 SILICONE
0770080020
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
ANGLE CONNECTOR LC8 03
60038082000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
VENTILATION OIL SEPARATOR FOAM
76530087000
|
$35.41 | ||
|
Available to order. Add to View Price |
|||
|
#58
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
