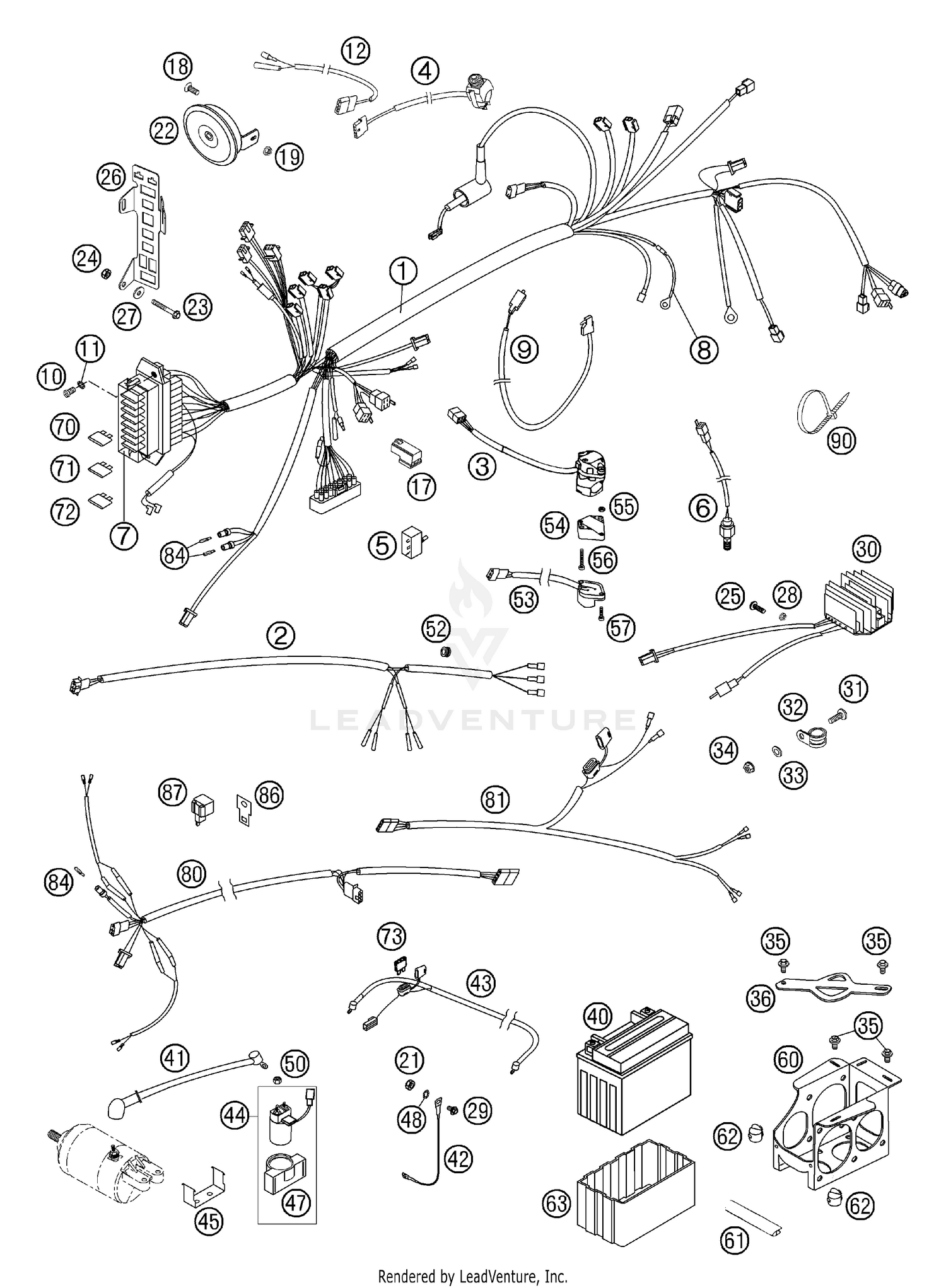

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN WIRING HARNESS RALLYE 03
58511075500
|
|||
|
Unavailable |
|||
|
#2
WIRING HARNESS REAR RALLYE 03
58511076100
|
|||
|
Unavailable |
|||
|
#3
H.LIGHT SWITCH CEV 2/4TAKT '98
50311070000
|
$76.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHORT CIRCUIT BUTTON 02
50311089200
|
$44.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ON/OFF RALLYE 03 IGNITION ON/OFF
58511069100
|
|||
|
Unavailable |
|||
|
#6
BRAKE LIGHT SWITCH LONG
58511051100
|
|||
|
Unavailable |
|||
|
#7
FUSE-BOX COVER
58511075510
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE F. TEMP. SWITCH
58511080000
|
|||
|
Unavailable |
|||
|
#9
BRAKE LIGHT SWITCH FRONT 2002
50311050100
|
$76.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
OVAL HEAD SCR. DIN7985-M 5X10
0985050103
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TOOTH LOCK WASH. DIN6797-J 5,3
0797050003
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
STARTER BUTTON ADAPTER CABLE
58511074050
|
|||
|
Unavailable |
|||
|
#17
STARTER RELAY '96
58411057000
|
$27.49 | ||
|
Unavailable |
|||
|
#18
FLAT HEAD SCR. DIN7991-M 6X16
0991060163
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SELF LOCKING NUT M6 10.9
56509064100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
DC HORN 12V K80/L LEB
50311060000
|
$37.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HH SCREW DIN931 M5X45
0931050453
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HEXAGON NUT DIN0934-M 5
0934050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BRACKET SOCKETS RALLY 2001
58511083100
|
|||
|
Unavailable |
|||
|
#27
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SELF LOCKING NUT M6 10.9
56509064100
|
$2.99 | ||
|
Unavailable |
|||
|
#29
HH collar screw M5x16 TX30
0015050163
Superseded by 0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
VOLT.REGULATOR-RECTIFIER 12V
58411034100
|
$252.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH COLLAR SCREW M 5X25 WS=8
0015050253
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CLAMP RSGU 15/12
49007439000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER DIN0125-A 5,3
0125050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Unavailable |
|||
|
#35
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BRACKET F. BATTERY BOX 01
58511054250
|
|||
|
Unavailable |
|||
|
#40
BATTERY 12V/8AH
58411053000
Superseded by 76011053100
|
$251.78 | ||
|
Available to order. Add to View Price |
|||
|
#41
STARTERCABLE 250MM
58411059200
|
|||
|
Unavailable |
|||
|
#42
GROUND CABLE 275MM
58411097300
|
|||
|
Unavailable |
|||
|
#43
BATTERY CABLE 600MM RALLYE 01
58511059000
|
|||
|
Unavailable |
|||
|
#44
STARTER RELAY WITH HOLD.RUBBER
58411058000
|
$83.35 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET FOR STARTRELAIS '99
58511058050
|
|||
|
Unavailable |
|||
|
#47
HOLD. RUBBER FOR STARTRELAY
58411058050
|
|||
|
Unavailable |
|||
|
#48
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
rubber grommet D=8mm open
31008060000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
FLASHER SWITCH CEV '98
50311029000
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#54
ADAPTER FOR FLASHER SWITCH '98
13011070060
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#55
HEXAGON NUT DIN0934-M 4
0934040003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
CYL.HEAD SCREW DIN0084-M 4X22A
0084040223
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
FLAT HEAD SCREW DIN7985-M 4X16
0985040163
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
BATTERY BOX RALLYE 01
58511054200
|
|||
|
Unavailable |
|||
|
#61
BORDER PROTEC. ADVENTURE 2002
58214070150
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#62
CABLE SUPPORT KHS NR.150-47610
58111076000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BATTERY COVER 96
58411053050
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#70
FUSE 5 A 2003
58011109005
Superseded by 58011109105
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
FUSE 15 A
58011109015
|
|||
|
Unavailable |
|||
|
#73
FUSE 20 A
58011109120
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
FLAS.WIRINGHARN. FRONT 125-380
50311080100
|
$41.95 | ||
|
Available to order. Add to View Price |
|||
|
#81
FLAS.WIRINGHARN. REAR 125-380
50311081000
|
|||
|
Unavailable |
|||
|
#84
BULB 12V 2,3W (W2X4,6D)
49111425000
Superseded by 49111425200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#86
BRACKET FOR FLASHER RELAY
58211031100
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#87
FLASHER UNIT 97
44611207200
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#90
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
