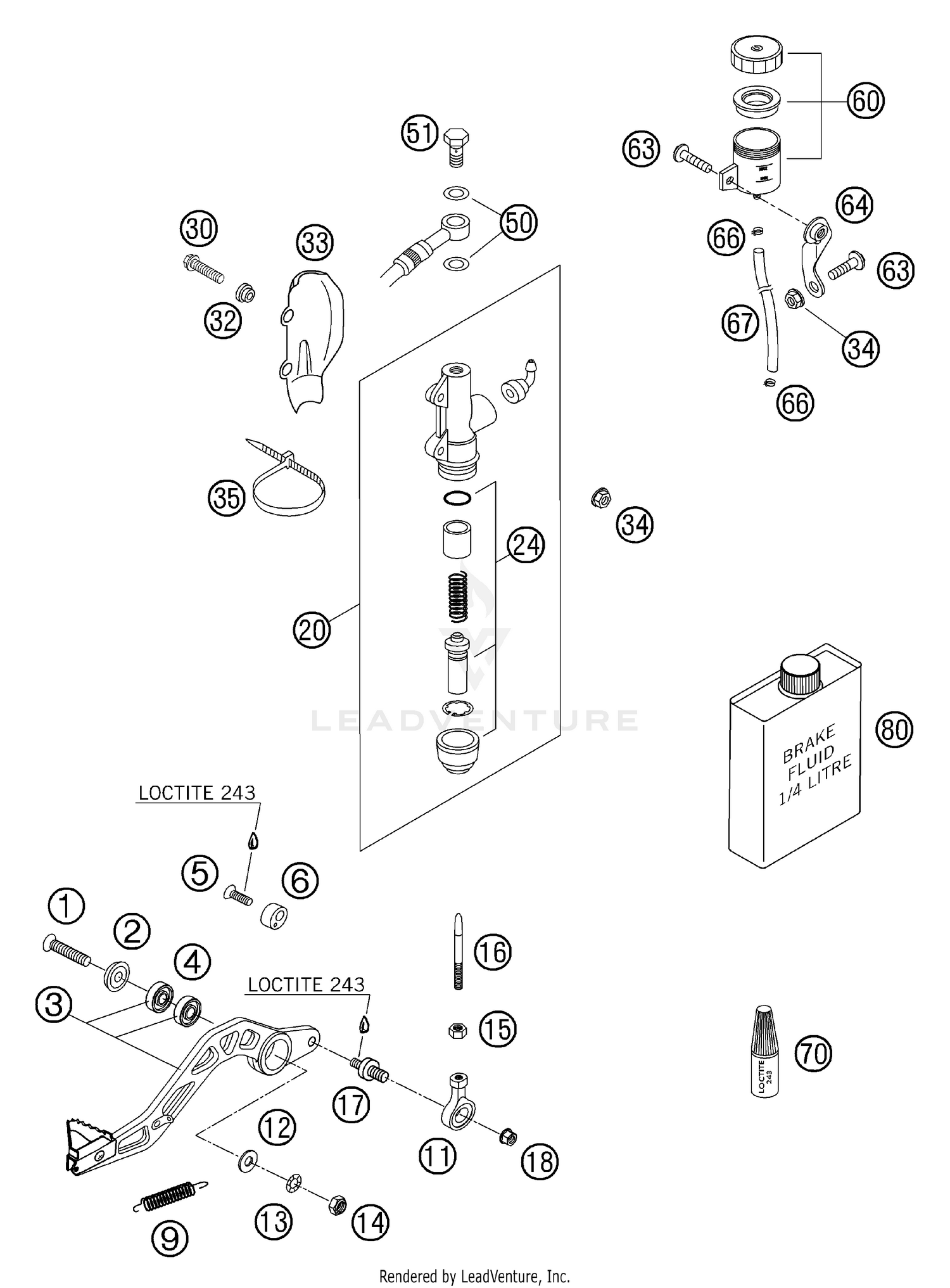

Rear Brake System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPECIAL WASHER ALU 8 X 24 MM
58303061000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
FOOT BRAKE LEVER KPL. LC4 2001
58403070044
|
$79.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRAKE LEVER STOP '93
58303063000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETURN SPRING
13003062000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWIVEL HEAD M6 FOOT BRAKE LEV.
54603069000
|
$43.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
LOCK WASHER 8MM
360030140
|
|||
|
Unavailable |
|||
|
#14
SELF LOCKING NUT DIN0985-M 8
0985080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PUSH ROD STEEL 100MM M6 01
58503068000
|
|||
|
Unavailable |
|||
|
#17
BRAKE LEVER AXLE RALLY 2001
58503060050
|
|||
|
Unavailable |
|||
|
#18
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
MAIN BRAKE CYLINDER
54513101044
Superseded by 54513101144
|
$149.09 | ||
|
Unavailable |
|||
|
#24
REPAIR KIT PISTON 13MM
54513150000
|
$54.66 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
COLLAR BUSHING
50213161000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRAKE CYL. PROTECTOR RALLYE 04
58513038000
|
|||
|
Unavailable |
|||
|
#34
SELF LOCKING NUT M6 10.9
56509064100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
HOLLOW SCREW M10X1X19
50213025000
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
BRAKE FLUID RESERVOIR '89
54513030044
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#63
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
BRACKET BRAKE FLUID RESERVOIR
59013068000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
CLAMP YDNAC 10128 12MM
58031005000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#67
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#70
LOCTITE 243 BLUE 5 ML
6899785
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
BRAKE FLUID DOT 5.1
306054
|
|||
|
Unavailable |
|||
