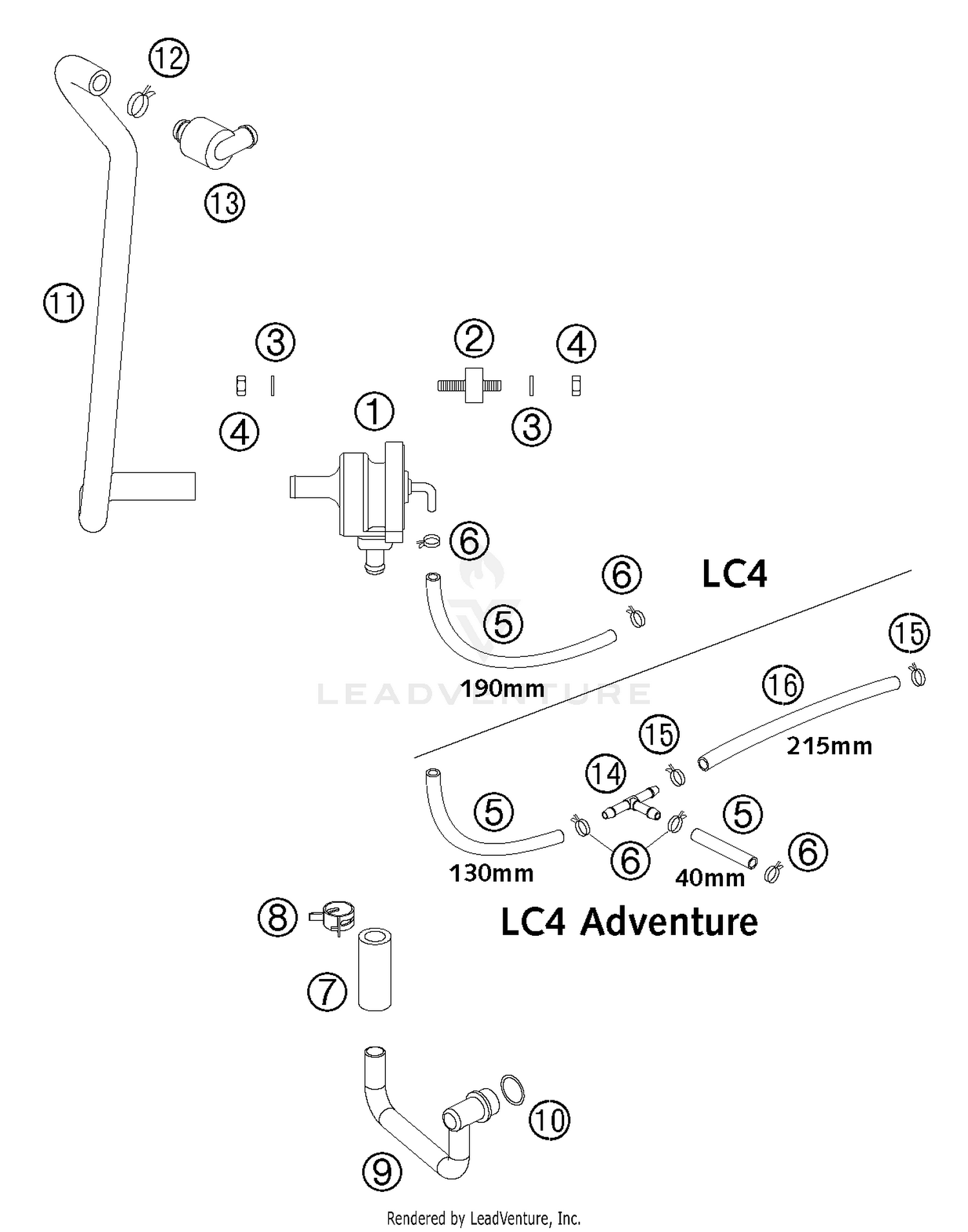

Secondary Air System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SAS-VALVE 04
58405026100
|
|||
|
Unavailable |
|||
|
#2
SILENTBLOCK 20X10 M6X10/M6X16
58405021000
|
|||
|
Unavailable |
|||
|
#3
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ND-HOSE 4X9 PER METER
58405029001
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
YDNAC-CLAMP FUEL HOSE (8MM)
45031005000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE SAS-VALVE - CONNECT. TUBE
58405019000
|
|||
|
Unavailable |
|||
|
#8
CLAMP STD DN19
00049190121
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTING TUBE SAS 04
58405027100
|
|||
|
Unavailable |
|||
|
#10
CU-SEAL RING 12 X 16 X 2
58436054000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PREFORMED HOSE SAS 04
58405020000
|
$12.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
YDNAC-CLAMP 10173 (16MM) '98
58431082100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
AIR FILTER LC4 '98
58431070000
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
T-CONNECTION 5MM TS5 FOR ADV.
58405030000
|
|||
|
Unavailable |
|||
|
#15
YDNAC-CLAMP 10107 10MM
58007117000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOSE 5,4X9,4 NBR, METER
58205035001
Superseded by 60007126001
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
