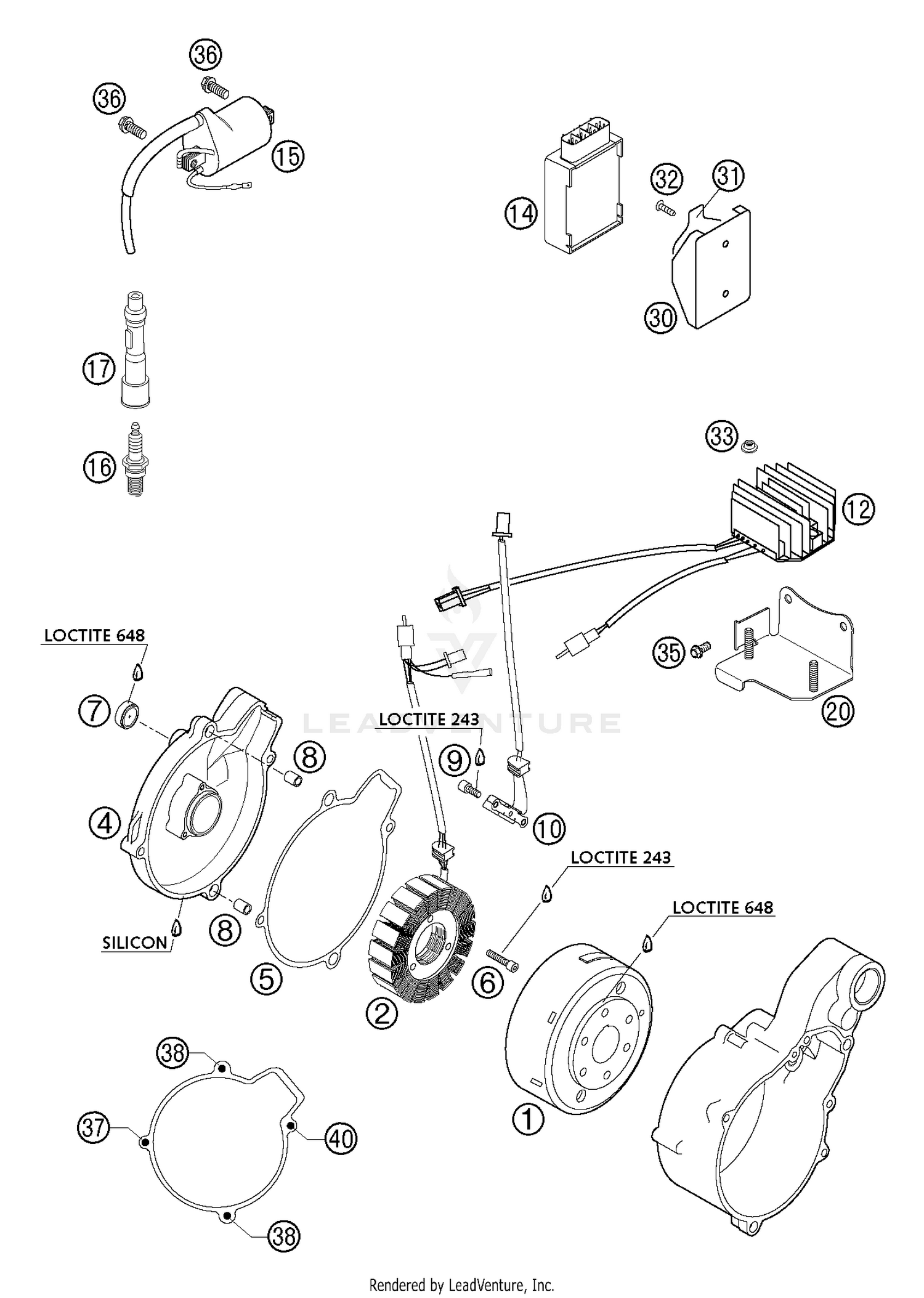

Ignition System Kokusan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHEEL KOKUSAN GP9128 '97
58439005100
|
$400.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR KOKUSAN LOOSE '96
58439004000
|
$244.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
IGNITION COVER CPL. GREY 03
5843000214423
|
$87.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COVER GASKET '96
58430040000
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH SCREW DIN0912-M 5X25
0912050253
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSPECT.GLASS GW 20-7 MINERAL
58430095000
Superseded by 58430095100
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
DOWEL 9,8 X7X10
49030090000
Superseded by 49030090100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHCS DIN 912 M5x8
0912050083
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PULSER COIL
58439034000
|
$122.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
VOLT.REGULATOR-RECTIFIER 12V
58411034100
|
$252.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIGITAL BOX CDI 04
58439031700
|
|||
|
Unavailable |
|||
|
#15
IGNITIONCOIL IG3826 KOKUSAN'96
58439006000
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG NGK DCPR8E 03
59039093100
|
$8.24 | ||
|
Unavailable |
|||
|
#17
SPARK PLUG CONNECT. SD05EG 03
58439090000
|
$23.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
BATTERY BRACKET 03
58411055200
|
|||
|
Unavailable |
|||
|
#30
RUBBER BRACKET FOR DIGI-BOX 03
58439030200
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#31
SUPPORT FOR RUBBER BRACKET 03
58439030250
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW FOR PLASTIC D=5X18
0017050181
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SELF LOCKING NUT M6 10.9
56509064100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HH collar screw M6x30 TX30
0015060303
Superseded by 0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
HH COLLAR SCREW M6X80 TX30
0015060803
Superseded by 0025060806
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
