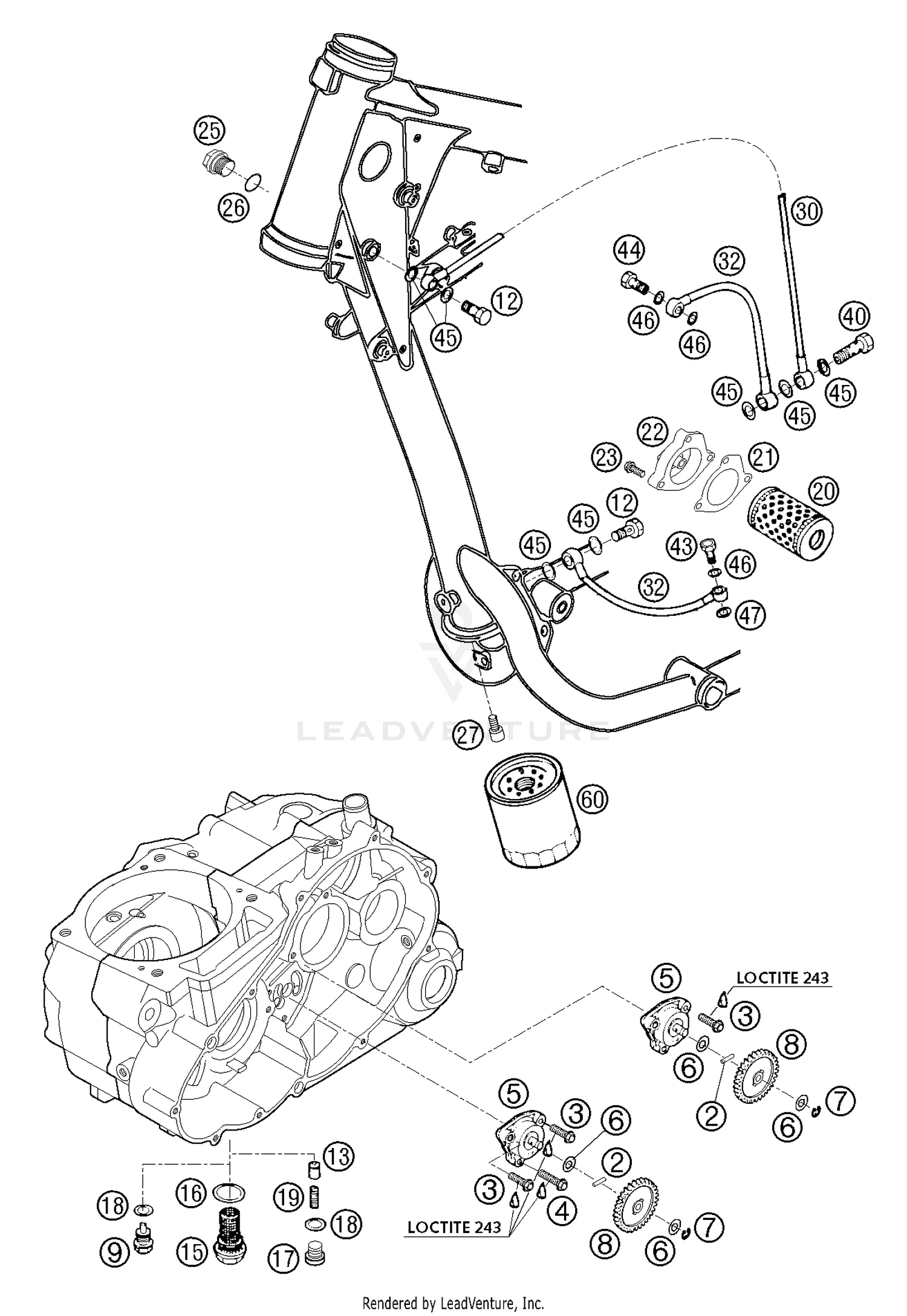

Lubricating System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
OIL PUMP MIKUNI G-73-10
58038007700
|
$114.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP DISK 8,1 X 15 X 0,5
58038007755
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TAB WASHER DIN6799-RS 6,0
0799060000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL PUMP GEAR 26-T
58438001000
|
$11.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Banjo bolt, type A DIN 7643-3 DN4 M10x1
54313025000
Superseded by 0076431001900
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE PISTON D=10MM
58038028000
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL DRAIN PLUG M22X1,5
58038019100
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CU-SEAL RING DIN7603-22X27X2
58038017100
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
threaded plug DIN 908 M12x1.5
0908120153
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PRESSURE SPRING L=25MM D=1MM
58038023300
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
OIL FILTER LONG
58038005000
|
|||
|
Unavailable |
|||
|
#21
OIL FILTER COVER GASKET 2001
58530041000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL FILTER COVER 2001
58030008700
|
$152.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
Unavailable |
|||
|
#25
PLUG DIN0910-M16X1,5
0910160153
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
CU-SEAL RING 16X22X2
0603162220
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
AH SCREW DIN7984-M 6X10
0984060103
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL LINE FILTER-FRAME TUBE
58038234700
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL LINE CLUTCH COVER-FRAME
58338034000
|
$47.73 | ||
|
Available to order. Add to View Price |
|||
|
#40
DUAL BANJO BOLT M10X1
58038033100
Superseded by 58038033200
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET SCREW M 8 X 1 ''150''
58038130000
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#44
BANJO BOLT M8X1
58038030000
Superseded by 58038029000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
sealing ring DIN 7603 10x14x1
0603100141
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
COPPER GASK.DIN7603- 8,2X13X1
0603082131
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
CU-SEAL RING 8 X 12 X 1,5
58038032300
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SCREW TYPE FILTER
58338045000
Superseded by 58338045100
|
$28.15 | ||
|
Available to order. Add to View Price |
|||
