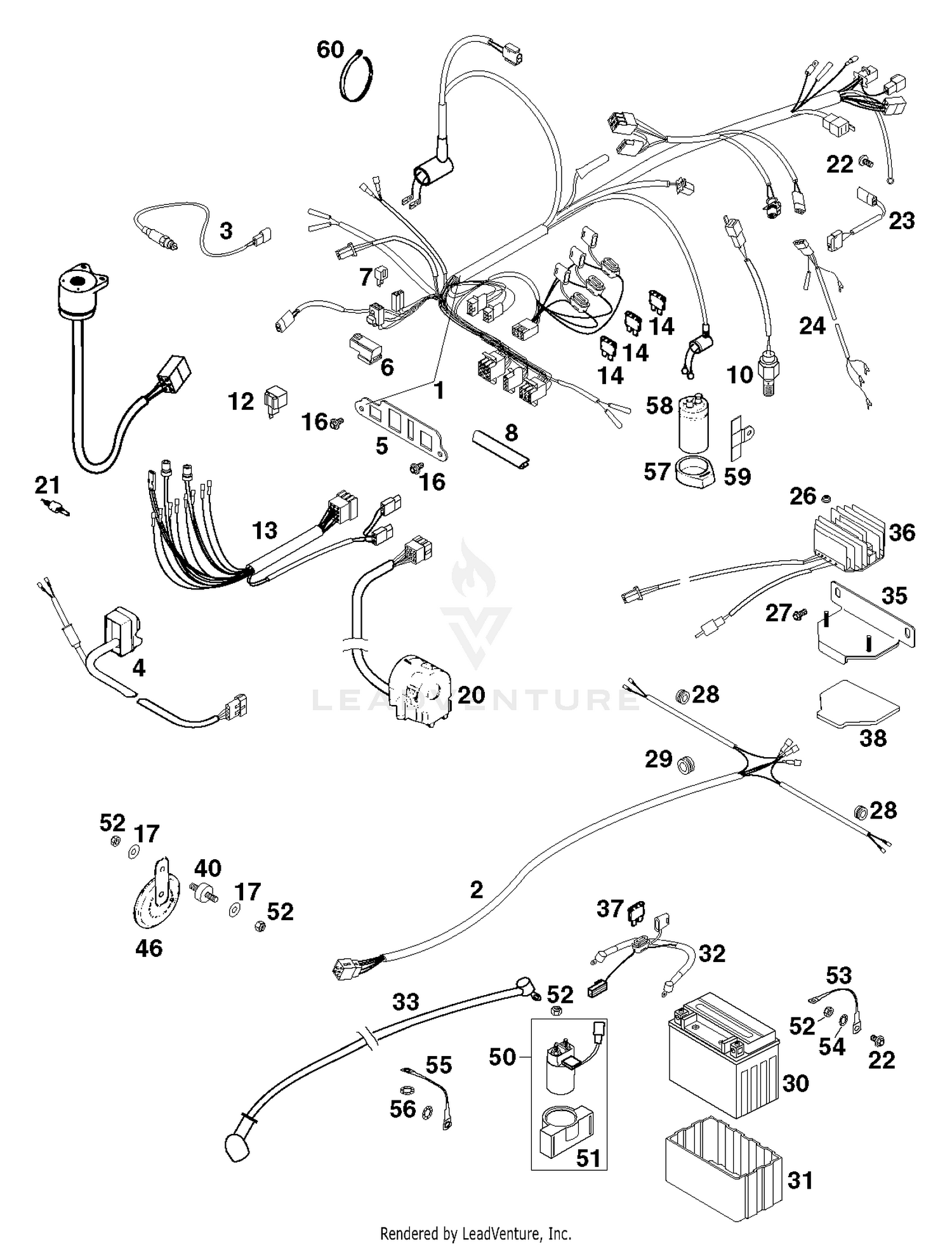

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN WIRING HARNESS ADV. '99
58211075200
|
|||
|
Unavailable |
|||
|
#2
WIRING HAR. REAR LC4-E/DUKE'97
58411176000
|
|||
|
Unavailable |
|||
|
#3
CLUTCH SWITCH '96
58411049000
|
$38.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
START-STOP SWITCH ADVENTURE'97 SYMBOLS WHITE
58211074000
|
|||
|
Unavailable |
|||
|
#5
BRACKET FOR PLUGS ADVENTURE'97
58211083000
|
|||
|
Unavailable |
|||
|
#6
STARTER RELAY '96
58411057000
|
$27.49 | ||
|
Unavailable |
|||
|
#7
DIODE S3H-15 97
58411096100
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
EDGE PROTECTOR PER METER
58312085100
|
$26.50 | ||
|
Unavailable |
|||
|
#10
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLASHER UNIT 97
44611207200
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRING HAR. F.CONTROLS ADV.'97
58211078000
|
|||
|
Unavailable |
|||
|
#14
FUSE 10 A 2000
58011109010
Superseded by 58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LIGHT SWITCH CPL. CEV ADV.'97
58211070000
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BREAK LIGHT SWITCH
51011050000
Superseded by 51011050100
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
Unavailable |
|||
|
#23
MICRO SWITCH LC4 '98
58431065100
|
|||
|
Unavailable |
|||
|
#24
WIRING HARN. EPC F. ENGINE LC4
58411085000
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
SELF LOCKING NUT M6
56509064000
|
|||
|
Unavailable |
|||
|
#27
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
RUBBER SLEEVE D=6MM OPEN
57511027000
|
|||
|
Unavailable |
|||
|
#29
rubber grommet D=8mm open
31008060000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BATTERY 12V/8AH
58411053000
Superseded by 76011053100
|
$251.78 | ||
|
Available to order. Add to View Price |
|||
|
#31
BATTERY COVER 96
58411053050
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#32
BATTERY CABLE 190MM 20A '98 BATTERY - STARTRELAISE
58411059250
|
|||
|
Unavailable |
|||
|
#33
STARTERCABLE 700 MM '97
58411059100
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#35
BATTERY BRACKET LC4-E/DUKE'97
58411055100
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
VOLT.REGULATOR-RECTIFIER 12V
58411034100
|
$252.33 | ||
|
Available to order. Add to View Price |
|||
|
#37
FUSE 20 A
58011109020
Superseded by 58011109120
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
METAMOLL FOR BATTERY BRACKET
58411055150
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#40
RUBBER GROMMET 20X10-M6X12 (2)
49001426000
|
|||
|
Unavailable |
|||
|
#46
DC HORN 12V NIKKO
54511060100
|
|||
|
Unavailable |
|||
|
#50
STARTER RELAY WITH HOLD.RUBBER
58411058000
|
$83.35 | ||
|
Available to order. Add to View Price |
|||
|
#51
HOLD. RUBBER FOR STARTRELAY
58411058050
|
|||
|
Unavailable |
|||
|
#52
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
GROUND CABLE D=8MM L=140MM '97
58411097200
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#56
CONTACT WASHER M8 VSV-K8
58411098000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#57
CAPACITOR BRACKET
54511048000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#58
CONDENSATOR 25V, 10.000 MF
49111435100
|
$67.75 | ||
|
Available to order. Add to View Price |
|||
|
#59
BRACKET FOR CAPACITOR
54611448000
|
|||
|
Unavailable |
|||
|
#60
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
