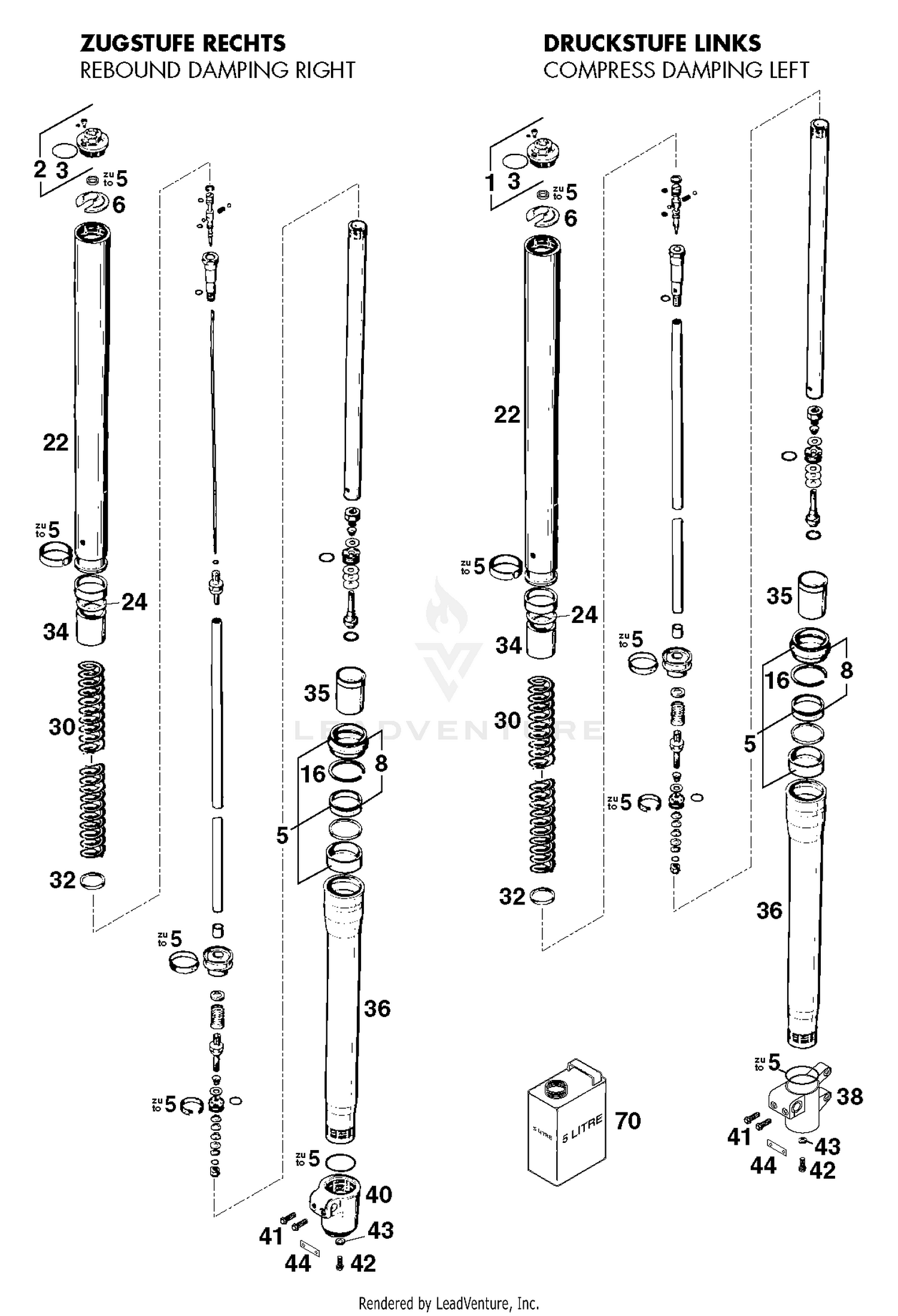

Fork Legs White Power Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW CAP CPL.COMPRESS DAMPING
58301408000
|
|||
|
Unavailable |
|||
|
#2
SCREW CAP CPL. REBOUND DAMPING
58301409000
|
|||
|
Unavailable |
|||
|
#3
O-RING 40,00X2,00
0770400020
|
|||
|
Unavailable |
|||
|
#5
GASKET SET WITH SLIDING BUSH
58301414000
|
|||
|
Available to order. Add to View Price |
|||
|
#6
SPRING RETAINER WITH SLOT
58301423000
|
|||
|
Unavailable |
|||
|
#8
REPAIR KIT SHAFT SEAL RINGS
58301415000
|
|||
|
Unavailable |
|||
|
#16
CIRCLIP D=50MM
58301429000
|
|||
|
Unavailable |
|||
|
#22
FORK TUBE D=50MM/L=668MM '98
54701003000
|
|||
|
Unavailable |
|||
|
#24
WASHER 32X45X2
58301419000
|
|||
|
Unavailable |
|||
|
#30
SPRING 3,8 N/MM SET
54701021038
|
|||
|
Unavailable |
|||
|
#30
SPRING 4,0 N/MM SET
54701021040
|
|||
|
Unavailable |
|||
|
#30
SPRING 4,2 N/MM SET
54701021042
|
|||
|
Unavailable |
|||
|
#30
SPRING 4,4 N/MM SET
54701021044
|
|||
|
Available to order. Add to View Price |
|||
|
#30
SPRING 4,6 N/MM SET
54701021046
|
|||
|
Unavailable |
|||
|
#30
SPRING 4,8 N/MM SET
54701021048
|
|||
|
Unavailable |
|||
|
#32
RING 35X41,5X2,5
54701016000
|
|||
|
Unavailable |
|||
|
#34
BUSHING 44,5X35X80
54701022000
|
|||
|
Unavailable |
|||
|
#35
SLIDING BUSH HYDRO-STOP L=73,5
54701018000
|
|||
|
Unavailable |
|||
|
#36
OUTER TUBE L=439MM
54701004000
|
|||
|
Unavailable |
|||
|
#38
AXLE CLAMP L/S 300MM M8 '98
58201006100
|
|||
|
Unavailable |
|||
|
#40
AXLE CLAMP R/S EXTREME M8 '98
54701007000
|
|||
|
Unavailable |
|||
|
#41
HH collar screw M8x25
0015080253
Superseded by 0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
HH collar screw M8x20
0015080203
Superseded by 0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SEAL RING 8 X 12 X 2
58038032100
|
$0.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
CLAMPING PLATE 13,5X42,5
58301006050
|
|||
|
Unavailable |
|||
|
#70
FORK OIL SAE5 5 LITER
306007
|
|||
|
Unavailable |
|||
