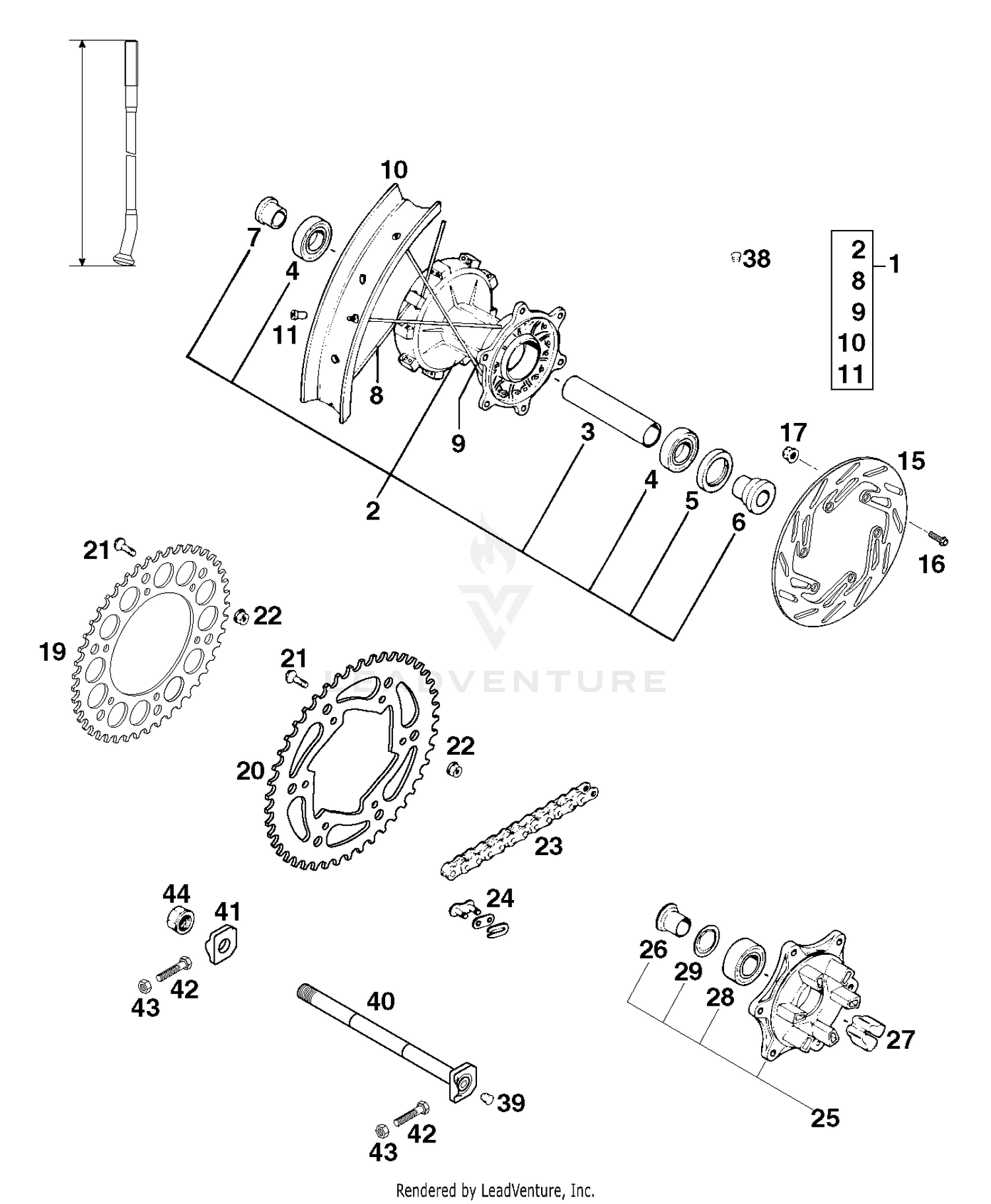

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL 2,50X18'' DID
58310001044
|
$781.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR WHEEL HUB DAMPED CPL. '93
58310010044
|
|||
|
Unavailable |
|||
|
#3
BEARING SPACER TUBE L=98,5MM
54610411100
|
|||
|
Unavailable |
|||
|
#4
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT SEAL RING 32X52X7 B
0760325272
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING FOR HUB 08
54610016000
Superseded by 78010016000
|
$38.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BUSHING FOR REAR DAMPED HUB
54610416300
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE M5X223-10G 18''
54610471000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE M5X200-10G 18" DDE
58310071200
|
|||
|
Unavailable |
|||
|
#10
REAR RIM 2,50X18'' DID
58010470100
|
$219.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spoke nipple Quadrax M5
58309072000
Superseded by 60310072200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
REAR BRAKE DISK 220MM COUNTERS
58010060600
|
$215.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SELF LOCKING NUT M6
56509064000
|
|||
|
Unavailable |
|||
|
#19
REAR SPROCKET 38-T
58310051038
|
$76.44 | ||
|
Unavailable |
|||
|
#19
REAR SPROCKET 40-T
58310151040
|
$74.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
REAR SPROCKET 42-T
58310051042
|
$76.44 | ||
|
Unavailable |
|||
|
#19
CORONA 45 T
58310151045
Superseded by 7771015104501
|
$87.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
REAR SPROCKET 48-T
58310151048
Superseded by 7771015104801
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR SPROCKET 50-T
58310151050
Superseded by 7771015105001
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR SPROCKET 52-T
58310151052
Superseded by 7771015105201
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPROCKET SCREW-AH M 8X26
54510052000
|
|||
|
Unavailable |
|||
|
#22
SELF LOCKING NUT M8
54310086000
|
|||
|
Unavailable |
|||
|
#23
O-RING CHAIN 5/8X1/4" DID 118 ROLLS
50010065100
|
|||
|
Unavailable |
|||
|
#23
O-RING CHAIN 5/8X1/4"PER METER
50010065101
|
|||
|
Unavailable |
|||
|
#24
RIVETING LINK FOR 78010167118
50010066100
Superseded by 78010266100
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH. F.SPROCKETSUPPORT L=25MM
54610417300
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER DAMPING BLOCK '91
54610459000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
GR. BALL BEARING 3205B-2RSRTNG
0625032057
|
$89.96 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL WASHER 3205 AV
54610018000
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLUG FOR RIM
55003135000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
COVERING CAP SFL16
50210086000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WHEEL SPINDLE REAR CPLL=264MM
50210085044
|
$84.79 | ||
|
Available to order. Add to View Price |
|||
|
#41
CHAIN TENSIONER '95
56510084100
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#42
HH SCREW M8X40 WS=10
50203030090
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HEXAGON NUT M20X1,5 '98
50310099000
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
