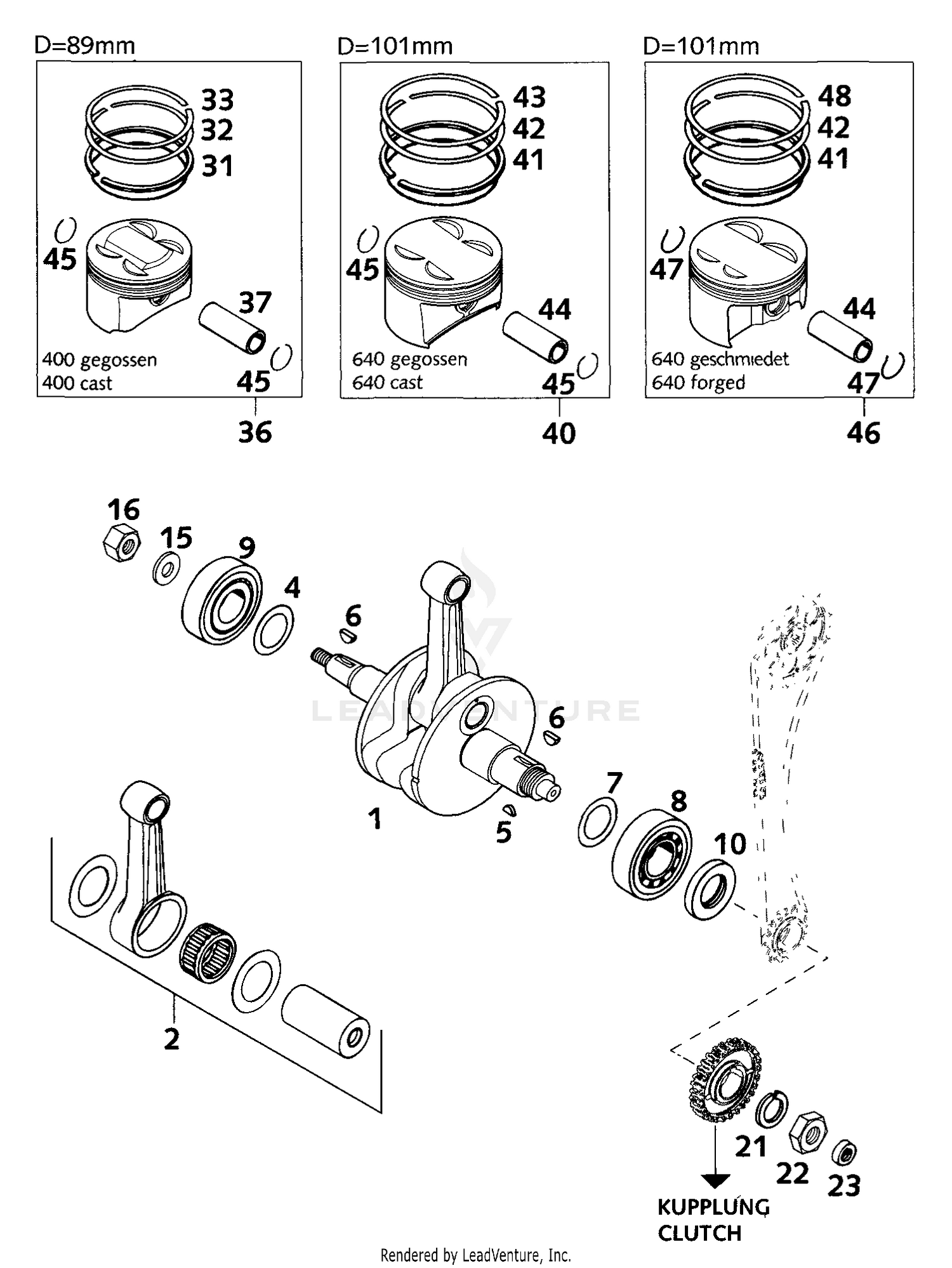

Crankshaft, Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT CPL. 400 LC4-E '97 (STROKE 64MM)
57730018100
|
|||
|
Unavailable |
|||
|
#1
CRANKSHAFT CPL. 640 LC4-E '98 (STROKE 78MM)
58430018100
|
|||
|
Unavailable |
|||
|
#2
CONNECTING ROD REPAIR SET LC4
58030015044
|
$501.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTING ROD REPAIR SET LC
58330015044
|
$416.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM WASHER 36X48X0,10
56530081000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM WASHER 36X48X0,15
56530081100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM WASHER 36X48X0,30
56530081300
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WOODRUFF KEY DIN6888-3X5X13
0888030050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WOODRUFF KEY 5X6,5 HARDED
6946005
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
THRUST WASHER 30,5X45X0,10
56030081000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
THRUST WASHER 30,7X47X0,15
56030081100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
THRUST WASHER 30,5X45X0,30
56030081200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYL.ROLLER BEARING NJ 306 C3
58030082000
|
$135.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLIND.ROL.BEAR. NJ207ET2XCS42
56530123100
Superseded by 56530123200
|
$125.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT SEAL RING 30X47X7 VITON
0760304771
|
|||
|
Unavailable |
|||
|
#15
STEEL WASHER 16 X 30 X 3
58330095000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
HEX NUT M16x1,25 L/S
58430028000
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCKING RING VSK 20
58030019000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
HEXAGON NUT DIN0936-M20X1,5
0936200155
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHAFT SEAL RING 12 X 22 X 7 B
0760122270
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SCRAPER RING 89MM
57530031000
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#32
TAPERED COMPR.PISTON RING 89MM
57530132000
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#33
RECTANGULAR RING 89MM
57530032000
|
$54.11 | ||
|
Available to order. Add to View Price |
|||
|
#36
PISTON I 89MM CPL. CAST '99
57730007000 I
|
$297.79 | ||
|
Available to order. Add to View Price |
|||
|
#36
PISTON II 89MM CPL. CAST '99
57730007000 II
|
$286.89 | ||
|
Available to order. Add to View Price |
|||
|
#37
PISTON BOLT 22X13X54,2 '99
57730033000
|
|||
|
Unavailable |
|||
|
#40
PISTON I 101MM CPL. CAST 2000
58330007500I
|
|||
|
Unavailable |
|||
|
#40
PISTON II 101MM CPL. CAST 2000
58330007500II
|
|||
|
Unavailable |
|||
|
#41
OIL SCRAPER RING 101x2,5
58330031300
|
$40.36 | ||
|
Available to order. Add to View Price |
|||
|
#42
TAP.COMPR.PISTON RING 101X1,25
58330932100
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#43
RECTANGULAR RING 101x1,25
58330832000
|
$45.69 | ||
|
Available to order. Add to View Price |
|||
|
#44
PISTON PIN 22 X 13 X 60
58330833000
|
$54.44 | ||
|
Available to order. Add to View Price |
|||
|
#45
CIRCLIP C 22 X 1,5
58030074100
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#46
PISTON I CPL.101MM FORGED 2000
58430007000I
|
|||
|
Unavailable |
|||
|
#46
PISTON II 101MM FORGED 2000
58430007000II
|
|||
|
Unavailable |
|||
|
#47
CIRCLIP 22 X 1,6
58430074000
|
$11.32 | ||
|
Available to order. Add to View Price |
|||
|
#48
L-RING 101X93,5X1,5 2000
58430032000
|
$53.78 | ||
|
Available to order. Add to View Price |
|||
