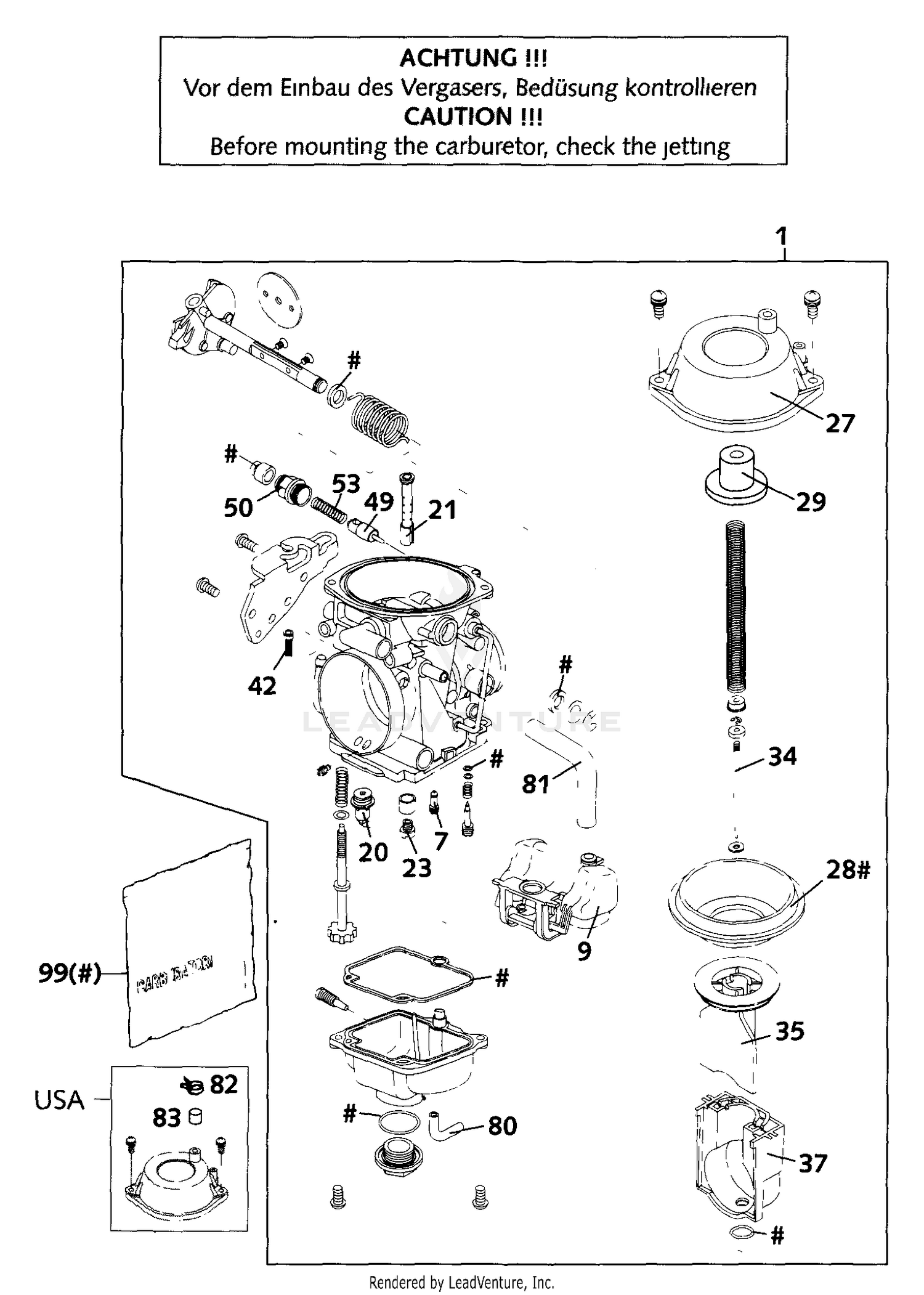

Carburetor Bst 40 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR MIKUNI BST40-225'98
58431001400
|
|||
|
Available to order. Add to View Price |
|||
|
#7
IDLING JET 45
58431007045
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLOAT 6,1 GRAMM MIKUNI
58431009000
|
$54.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE VALVE 2,8MM
58431020000
|
$63.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE JET 689 X-6
58431021689
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
MAIN JET 140
58431023140
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
MAIN JET 142,5
58431023142
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
MAIN JET 145
58431023145
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#27
DIAPHRAGM COVER MIKUNI
58431027000
|
$43.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
DIAPHRAGM FOR THROTTLE VALVE
58431028000
|
$49.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
SLIDE STOP L=17MM MIKUNI
58331029017
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
JET NEEDLE 6G5
58431034665
|
|||
|
Unavailable |
|||
|
#35
THROTTLE VALVE ''1''
58431035000
|
$65.33 | ||
|
Available to order. Add to View Price |
|||
|
#37
THROTTLE VALVE GUIDE PLASTIC
58431037000
|
$43.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
FUEL SCREEN MIKUNI
58431042000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#49
STARTING PISTON MIKUNI
58431049000
|
$38.71 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW M12 STARTSYSTEMN
58431050000
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
SPRING 22,5MM FOR START.PISTON
58431053000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#80
PVC-HOSE 3X5MM
52031137001
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
HOSE ID 7,5 PER METER
54435024001
|
$28.04 | ||
|
Available to order. Add to View Price |
|||
|
#82
CLAMP YDNAC 10128 12MM
58031005000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#83
PLUG CAP FOR EPC CONNECTION
57931001010
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#99
GASKET SET MIKUNI BST40-225
58431099000
|
$73.58 | ||
|
Available to order. Add to View Price |
|||
