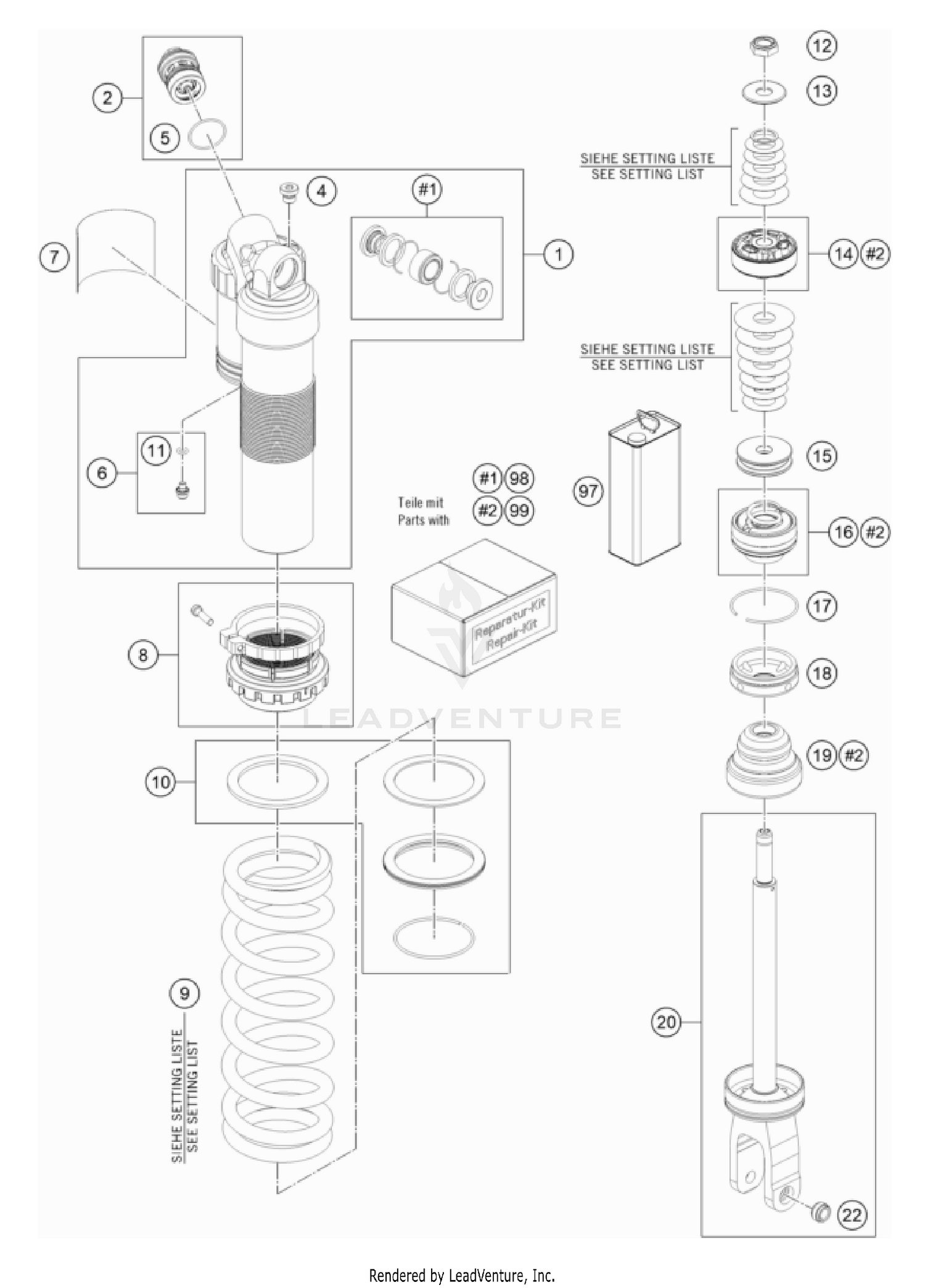

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Shock housing M57,5x1 h30,5 cpl.
50181144S3
|
$385.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
compression cpl.
50181101S45
|
$113.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-ring 27x1,5 Viton70 green ISO 3601-3S
50180217
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG SCREW M5X6 CPL.
36120151S
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
sticker XACT 90x54
52000239
|
$37.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
Plastic Spring Retainer cpl.
50181347S
|
$37.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
Mainspring (62/65) 30-250 damper white
91210129
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Mainspring (62/65) 33-250 damper white
91210126
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Spring 255 36 N/MM
91210128S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 39 N/MM
91210123S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 42 N/MM
91210124S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 45 N/MM
91210100S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 48 N/MM
91210101S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 51 N/MM
91210102S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 54 N/MM
91210103S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 57 N/MM
91210104S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 60 N/MM
91210105S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING PLATE SET
50180824S
|
$44.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
Locking nut M12x1 h9 WAF19
50181207
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rebound disc 12x34x2 h0
50181092
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
Piston 12x50x20 cpl.
50181255S1
|
$57.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Rebound disc 12x43x12,5 h8
50181091
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
DichtungstrSger 50x28 cpl.
50180603SA
Superseded by 50180603S7
|
$74.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
Round-wire snap ring 53x1,75
50180126
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
Cap 50,12x16 h6
50181349
|
$29.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rubber pad 18x58x46 black
50181100
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
MONOSHOCK BOTTOM PART CPL.
50181148S1
|
$388.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bush M10x12/15/13x9,5
46811205
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#97
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
REPAIR KIT BEARINGS 07
R15006
|
$121.26 | ||
|
Available to order. Add to View Price |
|||
|
#99
shock absorber repair kit
RP10032T
|
$159.16 | ||
|
Available to order. Add to View Price |
|||
