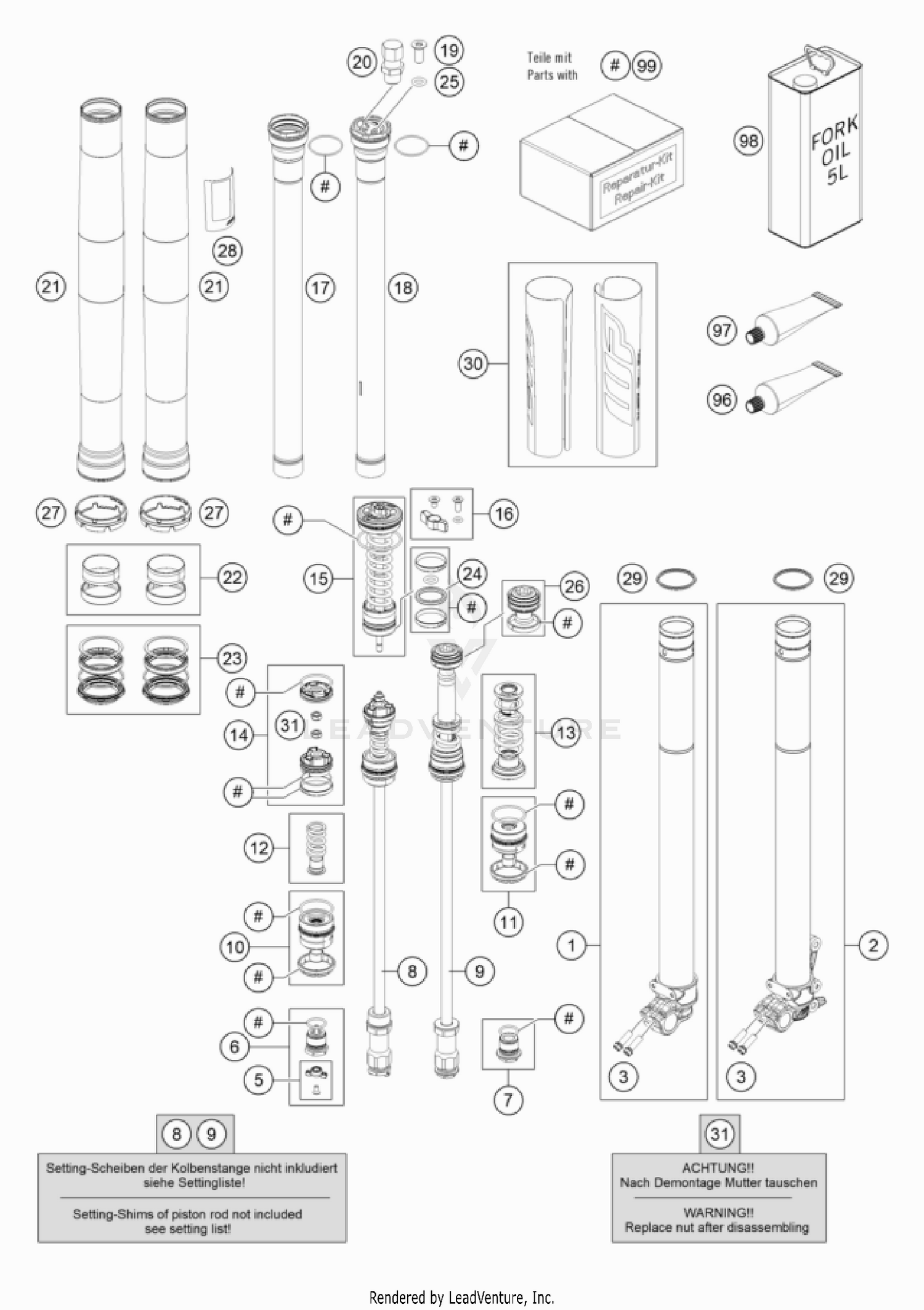

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Axle clamp ri. with inner tube cpl.
48602046S2
|
$420.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
Axle clamp le. with inner tube cpl.
48602045S2
|
$445.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Repair kit adjuster rebound red
RP10033T
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
adjuster housing M20x1 cpl.
48602052S
|
$37.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M20x1x18 cpl.
48601533S
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
Pistonrod D12 M9x1 L385 cpl.
48601574S5
|
$418.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
piston rod 12x470 cpl.
48601501S2
|
$341.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw sleeve M35,5x0,8 cpl
48602131S2
|
$63.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
Screw sleeve M35,5x0,8 cpl.
48602138S2
|
$56.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spring (13,9) 37-32 rebound cpl.
48600578S
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
Spring (22) 60-30 rebound cpl.
48601820S
|
$30.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
Repair kit piston air fork
RP10035T
|
$67.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
Basevalve cpl.
48602049S2
Superseded by 48602049S5
|
$187.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
adjuster kit screw cap compression
RP10029
Superseded by RP10029T
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
Schraubdeckel M51x1,5 kpl.
48602048S1
|
$267.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
screw cap M51x1,5 cpl.
48602047S2
|
$318.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
ISA countersunk head screw M4x8 acc draw
00600003
Superseded by 00700007
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
Schrader valve M8x1 cmpl.
48601494S
Superseded by 48601494ST
|
$29.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
fork outer tube 49.13x577 dt54 db60
48602096
|
$302.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seal kit 48mm SKF black
RP10012
Superseded by RP10048T
|
$78.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
X-ring 26,57x3,53 FKM80
04100002
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
O-ring 4x1,5 NBR70
50180222
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
Piston 33,6x35,4 cpl.
48602135S
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
Fork protection ring 59,8mm
48601948
Superseded by S639200001000FA
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#28
sticker ""warning""
52000248
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#29
Stroke indicator 48mm red
48602007
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#30
Sticker set XACT 5 AER CC 182.5x238
52000235SET
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Nut M6 h5,4 SW10
48602128
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#96
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#97
special grease AER Fork 400g
00062010053
|
$99.54 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Dichtungskit Luftfedergabel
RP10034T
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
