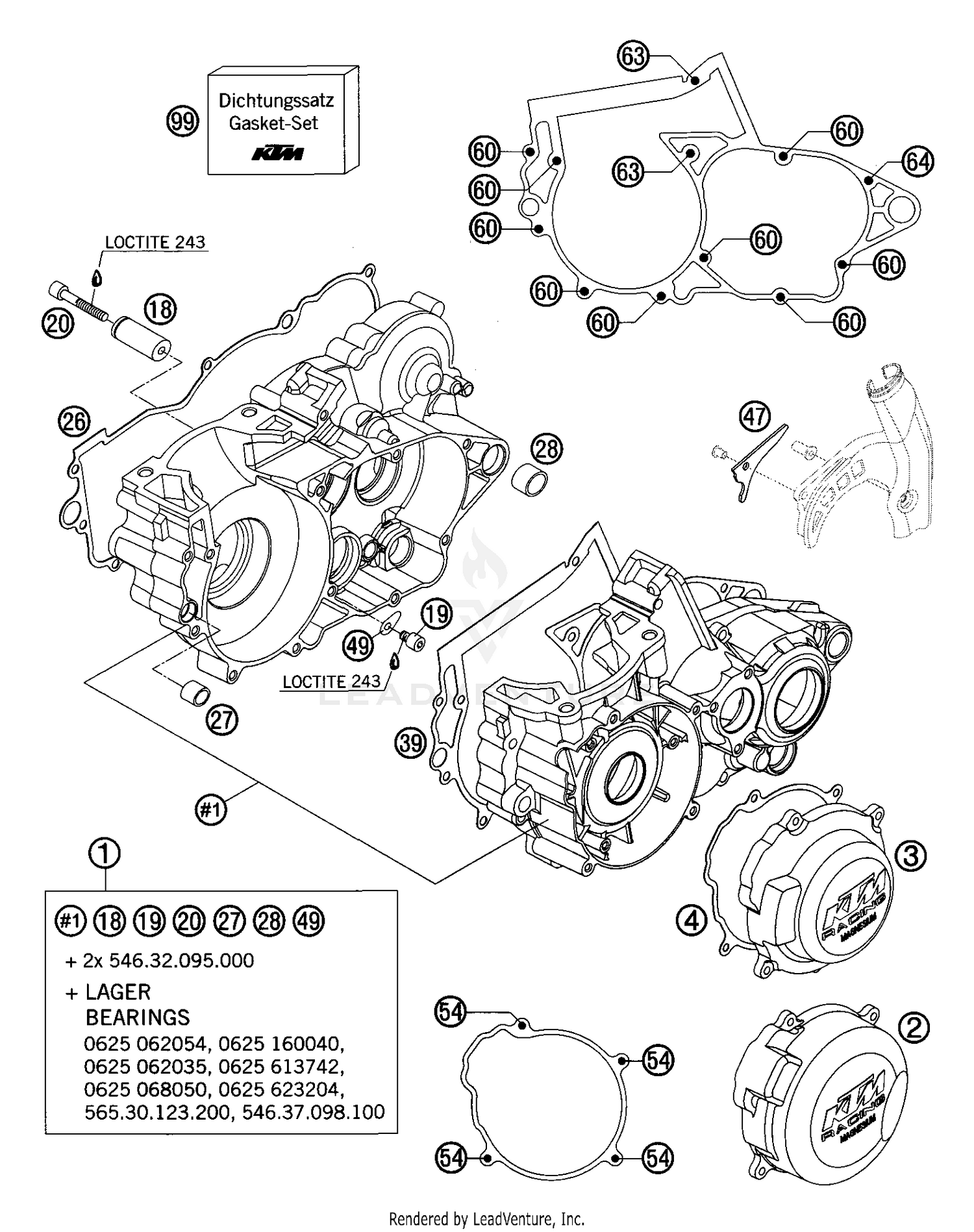

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL.W. BEARING 13
54830000044
Superseded by 54830000244
|
$1,106.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
IGNITION COVER GREY
54830002000
Superseded by 5483000200025
|
$64.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COVER SX 250 03
5483000210098
|
$61.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
IGNITI.COVER GASKET 250/300 03
54830040000
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSHING PIN 2000
59033018000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
AH SCREW DIN0912-M 6X 8
0912060083
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
AH SCREW DIN0912-M 6X40 A2
0912060404
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CLUTCH COVER GASKET INSIDE
54830024000
Superseded by 54830024100
|
$31.23 | ||
|
Available to order. Add to View Price |
|||
|
#27
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#28
Dowel, 21x12
54830027000
Superseded by 54830027100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
ENGINE CASE GASKET 2003
54830039000
|
$18.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
CHAIN FAIL. PROTECTION 04
54830047000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#49
RETAINING PLATE
54634049000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
HH COLLAR SCREW M 5X16 WS=6
0014050163
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
HH COLLAR SCREW M 6X55 WS=8
0015060553
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#64
HH collar screw M6x60 TX30
0015060603
Superseded by 0025060606
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
GASKET SET 250/300 2003
54830099000
|
$174.23 | ||
|
Available to order. Add to View Price |
|||
