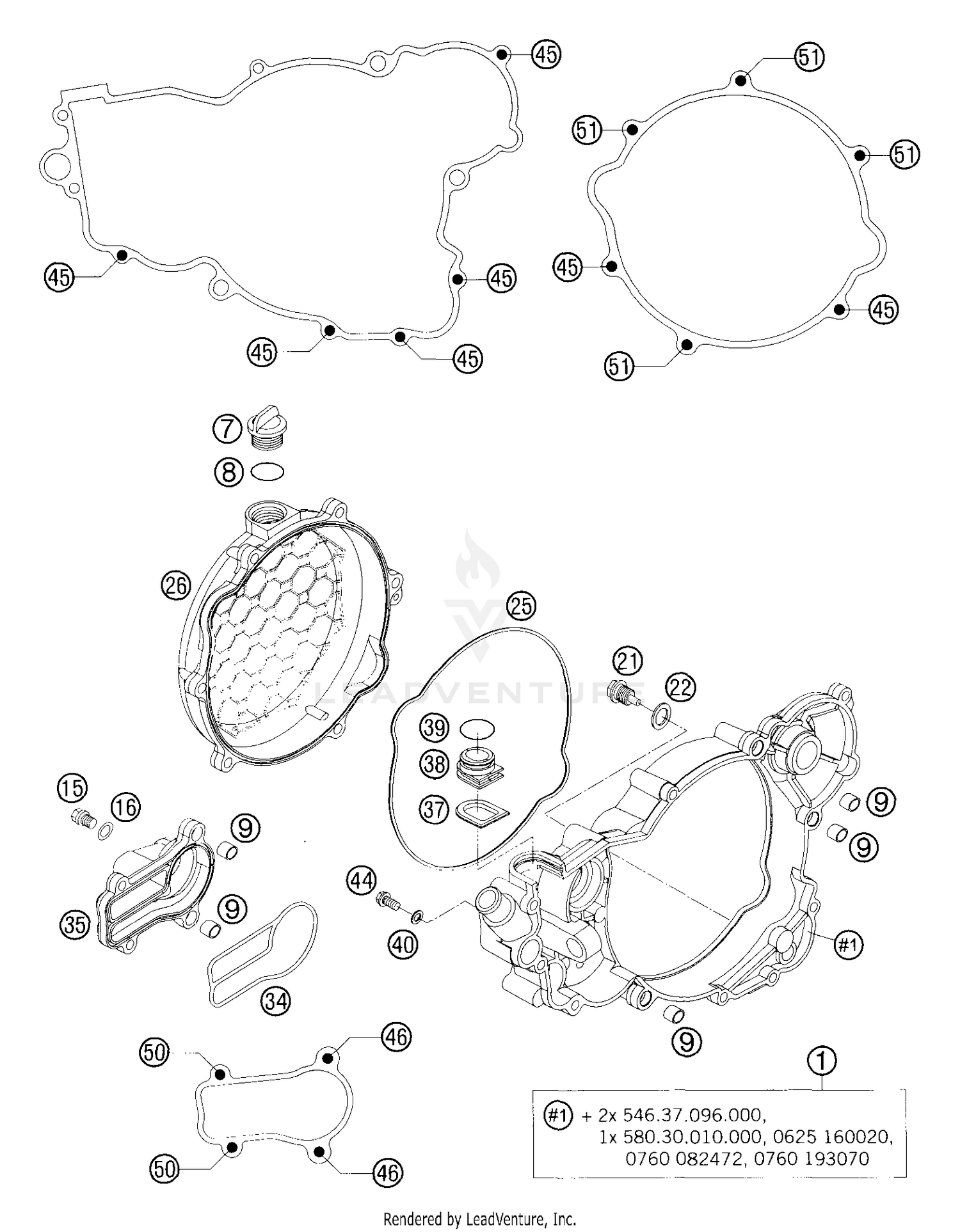

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
INTERM. CLUTCH COVER CPL.
54830001044
Superseded by 54830001244
|
$253.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
oil plug cpl. M24x3
58030020000
Superseded by 58030020100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING 19,00X3,00 NBR
0770191015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
DOWEL 9,8 X7X10
49030090000
Superseded by 49030090100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG DIN0910-M 10X1
0910100003
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
sealing ring DIN 7603 10x14x1
0603100141
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CLUTCH COVER GASKET
54830025000
Superseded by 55130027000
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH COVER OUTSIDE 09
5483002600098
Superseded by 5513002600015
|
$87.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
GASKET WAPU-COVER 250 2003
54835003000
|
$7.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WATERPUMP COVER 250/300 03
54835001000
|
$55.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
SEALING ELEMENT BOTTOM
54637107000
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEALING CARRIER 03
54837091000
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#39
0-RING 18,72X2,62
0770021160
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
HH collar screw M6x12 TX30
0015060123
Superseded by 0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
HH COLLAR SCREW M 6X55 WS=8
0015060553
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#51
HH collar screw M6x60 TX30
0015060603
Superseded by 0025060606
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
