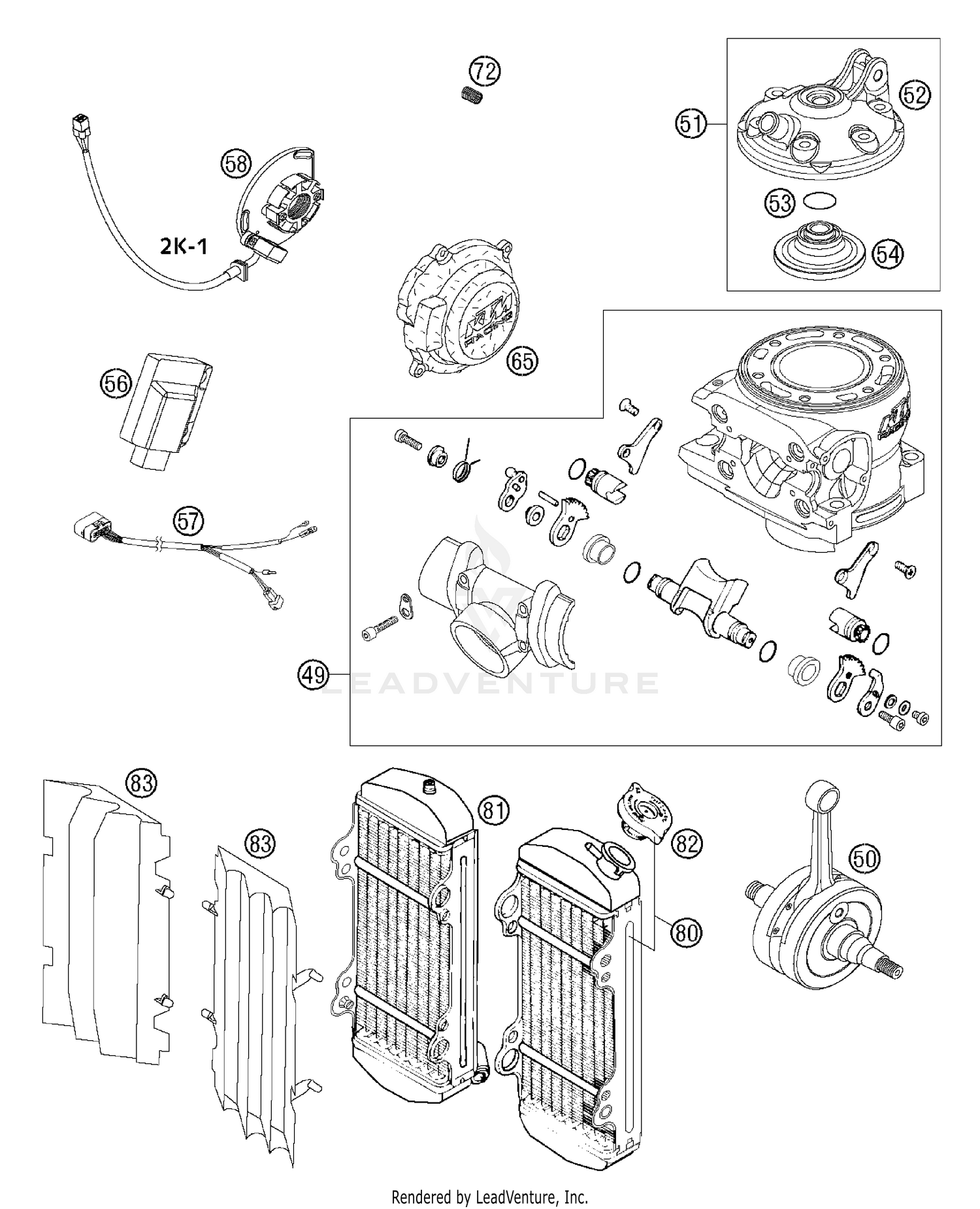

New Parts Engine Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#49
CYLINDER CPL. 250 SXS 04
SXS04250001
|
|||
|
Unavailable |
|||
|
#50
CRANKSHAFT CPL. 250 SX
54830018200
Superseded by 54830018400
|
$1,102.08 | ||
|
Available to order. Add to View Price |
|||
|
#51
CYLINDER HEAD KIT 250 SXS
SXS03250010
|
|||
|
Unavailable |
|||
|
#52
CYLINDER HEAD 250 SXS 03
SXS03250003
|
|||
|
Unavailable |
|||
|
#53
O-RING 22,00X2,5 VITON 75SH
0770220025
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#54
COMB.-CHAMB.INSERT 1 (22,5) 03
SXS03250004
|
|||
|
Unavailable |
|||
|
#54
COMB.-CHAMB.INSERT 2 (21,9) 03
SXS03250005
|
|||
|
Unavailable |
|||
|
#54
COMB.-CHAMB.INSERT 3 (21,0) 03
SXS03250006
|
|||
|
Unavailable |
|||
|
#56
CDI UNIT 250 SXS 2006
54839031200
|
$218.29 | ||
|
Available to order. Add to View Price |
|||
|
#57
WIRING HARNESS FOR CDI 2-ST.07
54839032000
Superseded by 54839032200
|
$92.39 | ||
|
Available to order. Add to View Price |
|||
|
#58
STATOR KOKUSAN 2K-1 2006
54839004000
|
$279.72 | ||
|
Available to order. Add to View Price |
|||
|
#65
IGNITION COVER CARBON 250 03
SXS03250025
|
|||
|
Unavailable |
|||
|
#72
CLUTCH SPRING 2,5X41,9 8,75W
54832080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#80
RADIATOR L/S SXS 125 2001
SXS00125600
|
|||
|
Unavailable |
|||
|
#81
RADIATOR R/S SXS 125 2001
SXS00125601
|
|||
|
Unavailable |
|||
|
#82
RADIATOR CAP SMALL 20,3 PSI
58035016000
|
$30.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#83
RADIATOR PROTECTION BLACK 06
59035040000
Superseded by 5903504000030
|
$9.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
