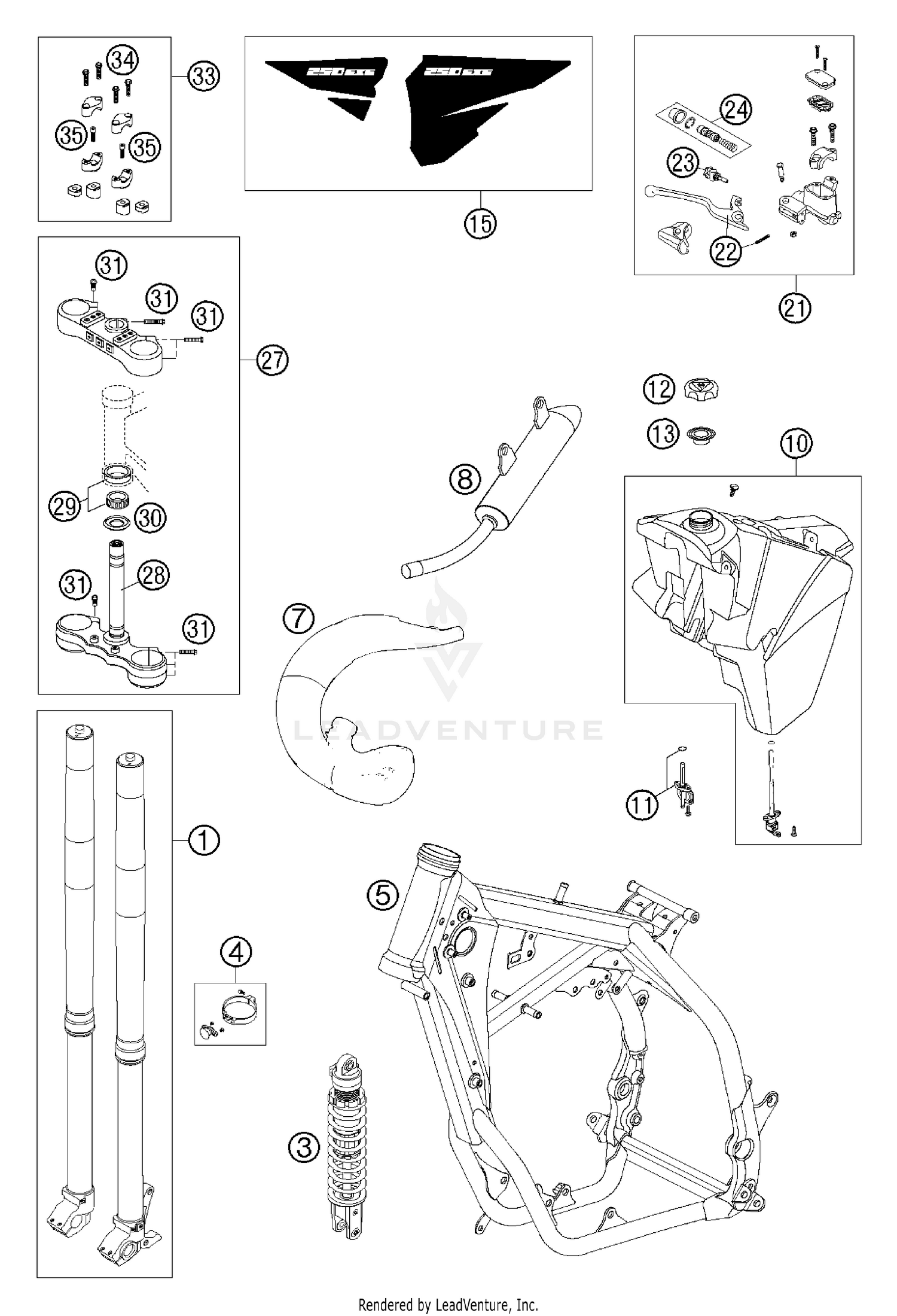

New Parts Chassis Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
% FORK 4860 MXMA 48MM
1418Y761
|
$1,834.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
% MONOSHOCK 5018 PDS SXS
1218Y779
|
$1,513.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
FACTORY START 04
SXS04540100
|
|||
|
Unavailable |
|||
|
#5
FRAME 250 SXS 04
SXS04250050
|
|||
|
Unavailable |
|||
|
#7
EXHAUST PIPE 250 SXS 03
SXS03250500
|
|||
|
Unavailable |
|||
|
#8
EXHAUST SILENCER 250 SXS 04
SXS04250551
|
|||
|
Unavailable |
|||
|
#10
FUEL TANK CPL. 9L 03
5030711320044
|
$284.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
GAS COCK MIKUNI ON/OFF 2001
50307005000
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SXS FUEL TANK CAP
SXS03540700
|
$14.99 | ||
|
Unavailable |
|||
|
#13
GASKET FOR FILLER CAP HIGH
59007009000
|
$9.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
DISPLACEM. STICKER 250 SXS 04
54808091300
|
|||
|
Unavailable |
|||
|
#21
HAND BRAKE CYLINDER CPL. SX 05
54813001000
|
$176.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HAND BRAKE LEVER + SPRING 2006
54813002000
Superseded by 54813002100
|
$36.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
ADJUSTING SCREW CPL. SX 2005
54813007000
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
REP.SET PISTON D=10MM SX 05
54813008000
|
$60.16 | ||
|
Unavailable |
|||
|
#27
TRIP.CLAMP KIT MILLED CPL.18MM
59501099018
|
|||
|
Unavailable |
|||
|
#28
FORK TUBE L=244
50101033100
Superseded by 54801133000
|
$100.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
TAPERED ROLLER BEARING CPL. 06
54201081000
Superseded by 54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING SUPPORT W. SEALING LIP
54601084100
Superseded by 77701084000
|
$22.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
HANDLEBAR SUPPORT KIT CPL.D=28
59501039044
|
|||
|
Unavailable |
|||
|
#34
HH collar screw M8x25
0015080253
Superseded by 0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
AH-COLLAR SCREW M10X25 ISA45
0912100250
Superseded by 0032100256S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
AH-COLLAR SCREW M10X35 ISA45
0912100356
Superseded by 0032100356S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
AH SCREW DIN6912-M10X45 10.9
0912100456
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
