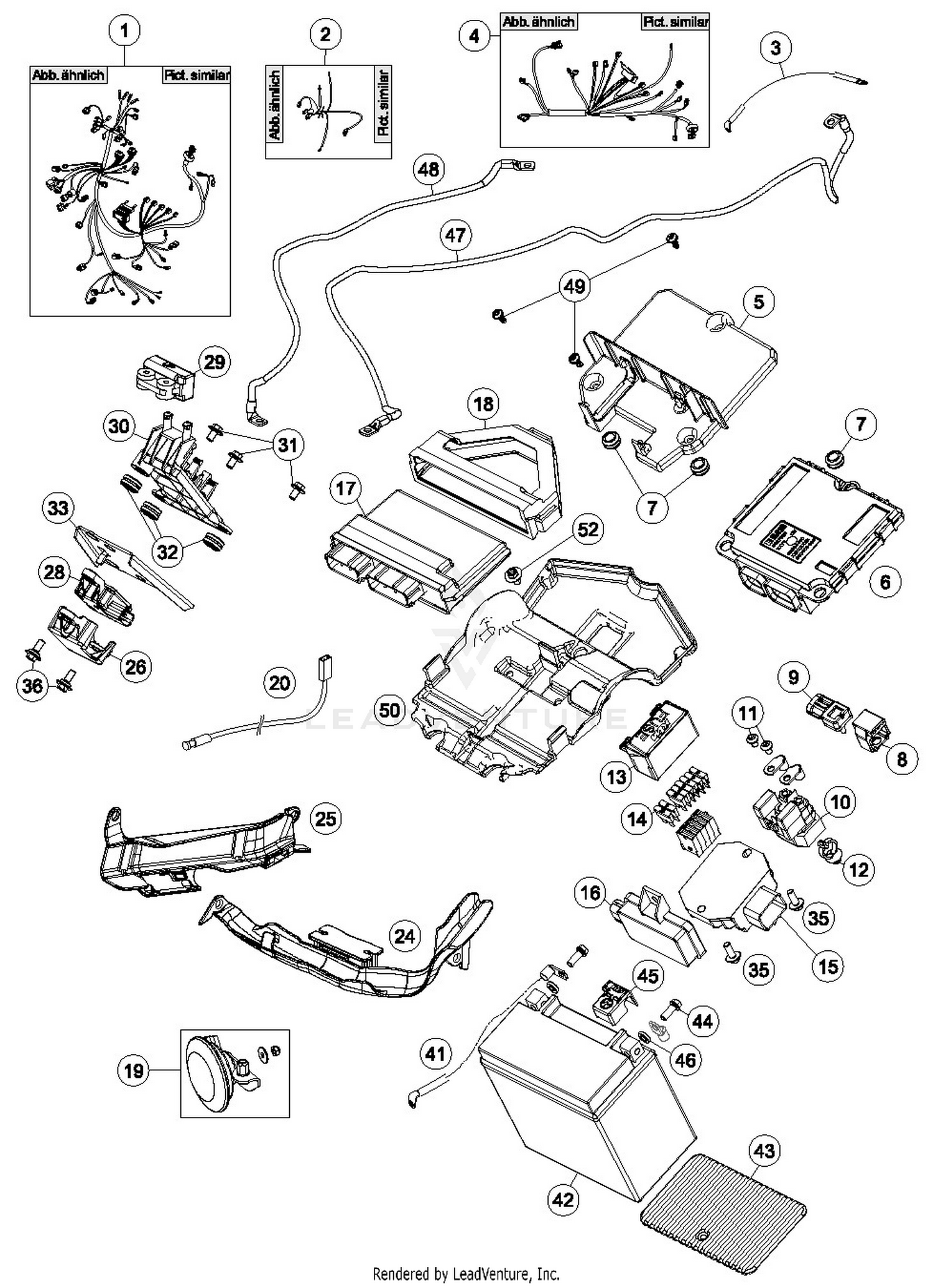

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN WIRING HARNESS CPL.
61311075033
|
$1,012.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRING ENGINE
60311085000
Superseded by 60311085100
|
$539.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
BATTERY CABLE
61311059050
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR WIRING HARNESS
61311076000
Superseded by 61311076100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER MCU
61308018060
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTORCYCLE CONTROL UNIT 2.1
60311033200
|
$985.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
rubber grommet 9x11x16x8.5 mm
60006001022
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PRESSURE SENSOR 06
61041085100
|
$169.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER SUPP. PRESSURE SENS. 06
61041085150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER RELAY 07
76211058000
|
$93.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE TIE W. SOCKET D=6,5
69011092000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER CASING FUSE BOX
61311087050
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE 30 A
58011109130
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Regulator rectifier
60311034000
Superseded by 60311034100
|
$142.19 | ||
|
Unavailable |
|||
|
#16
RECEIVER AIR PRESSURE SENSOR
60312032000
|
$199.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
Engine control unit
61341031000
|
$747.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
ECU RUBBER BRACKET
60341031050
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
DC HORN CPL. 05
61011060000
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
TEMPERATURE SENSOR
61111018000
Superseded by 61111018100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE CHANNEL L/S
60311046000
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE CHANNEL R/S
60311047000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER SENSOR BOX
61342090050
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
inertial sensor
60342090000
Superseded by 60342090100
|
$548.56 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROLLOVER SENSOR 05
61041088000
|
$79.63 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG BRACKET
61311083000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH COLLAR SCREW M6X10 TX30
0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
DAMP. COMPONENT ABS MODUL
62142041000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SUPPORT SLOPING POS. SENSOR
61342090040
|
$46.74 | ||
|
Available to order. Add to View Price |
|||
|
#35
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SPECIAL SCREW M6X15X3
83008000015
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
GROUND CABLE BATT.-FRAME 16MM
61311098000
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#42
BATTERY YUASA YTX14-BS
61311053000
|
$327.35 | ||
|
Available to order. Add to View Price |
|||
|
#43
RUBBER PLATE FOR BATTERY
61311053050
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#44
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
COVER POSITIVE POLE
62111059060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER 6 X 12 X 3
12011016000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
STARTER CABLE 16MM
61311059000
|
$44.21 | ||
|
Available to order. Add to View Price |
|||
|
#48
GROUND CABLE ENGINE-FRAME 16MM
61311097000
|
$23.97 | ||
|
Available to order. Add to View Price |
|||
|
#49
EJOT PT screw K50x14
0081050141
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Support
61311055000
Superseded by 61311055100
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#52
special screw M6x12x3
83008000012
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
