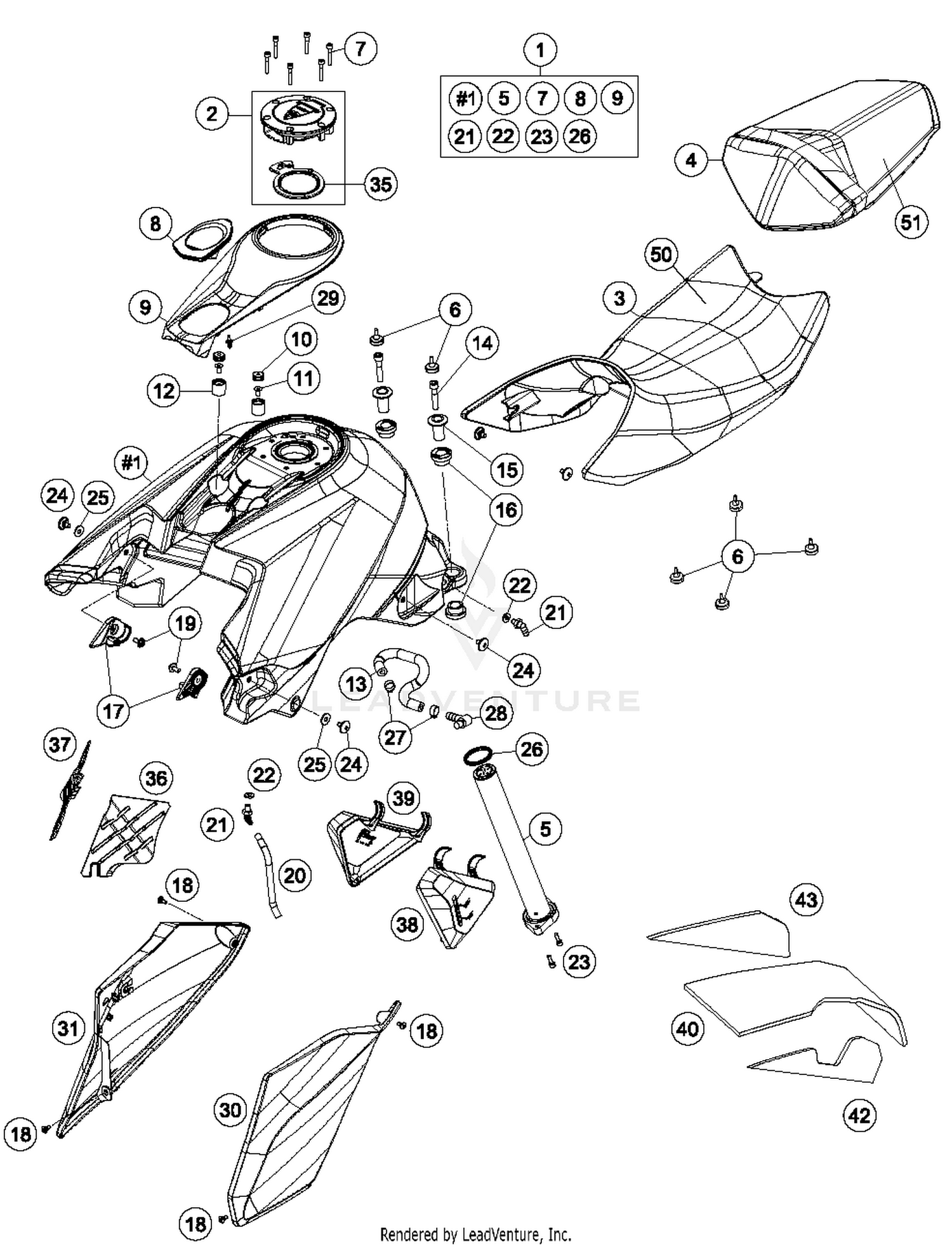

Tank, Seat, Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fuel tank Super D. black 14
6130701304430A
Superseded by 6130701314430A
|
$1,501.49 | ||
|
Unavailable |
|||
|
#2
TANK CAP CPL.
61307008100
|
$513.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT DRIVER CPL.
61307040000
|
$119.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT PILLION CPL.
61307047000
|
$197.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
Fuel lever sensor
61307080000
Superseded by 61307080200
|
$158.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISTANCE RUBBER AIRBOX 03
60006001021
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
AH SCREW DIN0912-M 5X25
0912050253
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER IGNITION LOCK
61307059000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER FUEL TANK
61307058000
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER SLEEVE 5X7.6X13MM
76008052050
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLAT HEAD SCREW DIN7991-M 6X12
0991060126
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSHING 13X20X18,5MM
76008052000
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUEL HOSE PUMP
61307017050
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHCS DIN 912 M8x40
0912080403
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bearing sleeve, external
61007060000
Superseded by 6100716000001
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
collar bushing, front tank holder
61007065000
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
TANK MOUNTING FRONT L/S & R/S
61307021044
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
special screw M5x12
69008021160
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HH collar screw M6x13 TX30
0024060136
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE 5,4X9,4 NBR, METER
60007126001
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
CONNECT.PIECE F.OVERFLOW M7 03
60007024000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET FOR CONNECTING PIECE 03
60007024050
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
AH SCREW DIN0912-M 5X16
0912050163
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Seat screw M6x11.5 ISA30
58407011100
Superseded by 0900000601200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER DIN9021-A 6,4
0021060003
|
$2.99 | ||
|
Unavailable |
|||
|
#26
GASKET FUEL LEVEL SENSOR
60307080090
|
$59.61 | ||
|
Available to order. Add to View Price |
|||
|
#27
VARIABLE ONE-EAR CLAMP 15,7MM
00050157706
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PLUG CPC
7720701000030
|
$43.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
QUICK RELEASE-NIPPLE 03
54806008051
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
TANK SPOILER L/S BLACK 2014
61308050000CAB
|
$321.74 | ||
|
Available to order. Add to View Price |
|||
|
#31
TANK SPOILER BLACK 2014
61308051000CAB
|
$321.74 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET TANK CAP
60307008190
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#36
FRAME COVER L/S
61303085000
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
FRAME COVER RIGHT
61303086000
Superseded by 61403086000
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
KNEE PAD L/S
61303091000
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
KNEE PAD R/S
61303092000
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#40
INSULATION MAT MIDDLE
61306095010
|
$24.41 | ||
|
Available to order. Add to View Price |
|||
|
#42
INSULATION MAT L/S
61306095020
|
$20.01 | ||
|
Available to order. Add to View Price |
|||
|
#43
INSULATION MAT R/S
61306095030
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#50
SEAT COVER
61307040050
|
$42.83 | ||
|
Available to order. Add to View Price |
|||
|
#51
SEAT COVER
61307047050
|
$33.38 | ||
|
Available to order. Add to View Price |
|||
