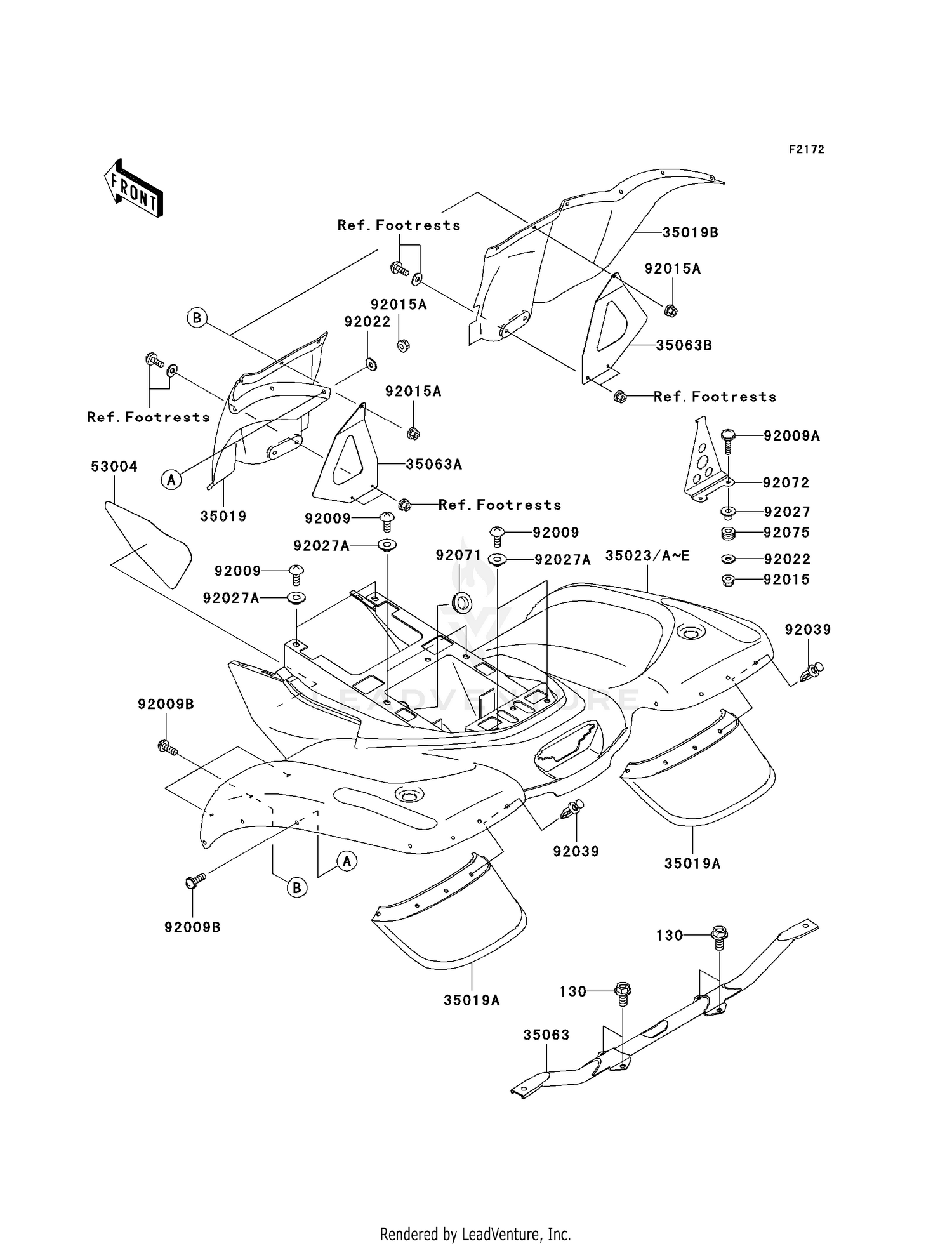

Rear Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X16
130BB0816
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP,RR,FR,LH,F.BLACK
35019-1334-6Z
|
$54.29 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,RR,FR,F.BLACK
35019-1336-6Z
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
|
#35019B
FLAP,RR,FR,RH,F.BLACK
35019-1375-6Z
|
$54.29 | ||
|
Available to order. Add to View Price |
|||
|
#35023B
FENDER-REAR,A.RED
35023-1579-260
|
$233.76 | ||
|
Available to order. Add to View Price |
|||
|
#35023C
FENDER-REAR,W.GREEN
35023-1579-286
|
$233.77 | ||
|
Available to order. Add to View Price |
|||
|
#35023E
FENDER-REAR,P.WHITE
35023-1579-6F
|
$245.63 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,REAR FENDER
35063-7505
|
$50.37 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,REAR FENDER,LH
35063-7508
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#35063B
STAY,REAR FENDER,RH
35063-7509
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#53004
MAT,REAR FENDER
53004-1173
|
$11.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X16
92009-1166
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X25
92009-1465
|
$4.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92009B
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,6MM
92015-1367
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X16X1.0
92022-1093
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,L=4.7
92027-1964
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1229
Superseded by 92039-0865
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-1237
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND
92072-1361
|
$11.92 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CASE
92075-222
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
