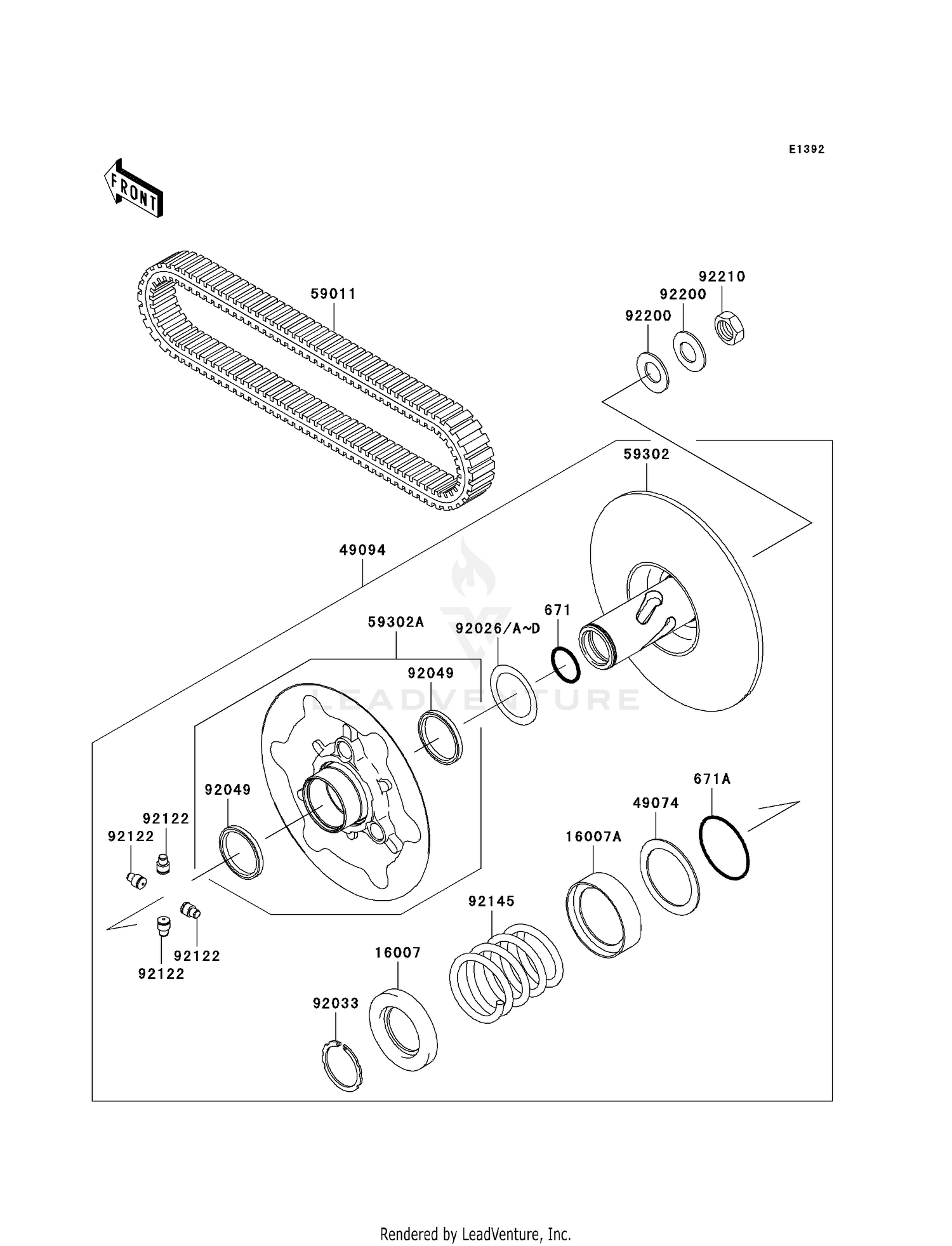

Driven Converter/drive Belt Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#671
O RING
671D2530
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#671A
O RING
671D2550
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-1203
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#16007A
SEAT-SPRING,SHEAVE MOVABLE
16007-1221
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#49074
PLATE-THRUST
49074-1055
|
$37.28 | ||
|
Available to order. Add to View Price |
|||
|
#49094
CONVERTER-ASSY-DRIVEN
49094-0019
Superseded by 49094-0051
|
$684.10 | ||
|
Available to order. Add to View Price |
|||
|
#59011
BELT
59011-0003
|
$121.26 | ||
|
Available to order. Add to View Price |
|||
|
#59302
SHEAVE-COMP,FIXED
59302-0001
Superseded by 59302-0077
|
$344.81 | ||
|
Available to order. Add to View Price |
|||
|
#59302A
SHEAVE-COMP,MOVABLE
59302-0002
Superseded by 59302-0039
|
$344.81 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,T=0.30
92026-0034
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,T=1.00
92026-1565
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92026B
SPACER,T=0.60
92026-1569
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92026C
SPACER,T=1.40
92026-1570
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92026D
SPACER,T=0.80
92026-1617
|
$8.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1317
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1528
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER
92122-1209
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,PURPLE
92145-1499
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1505
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,18MM
92210-1367
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
