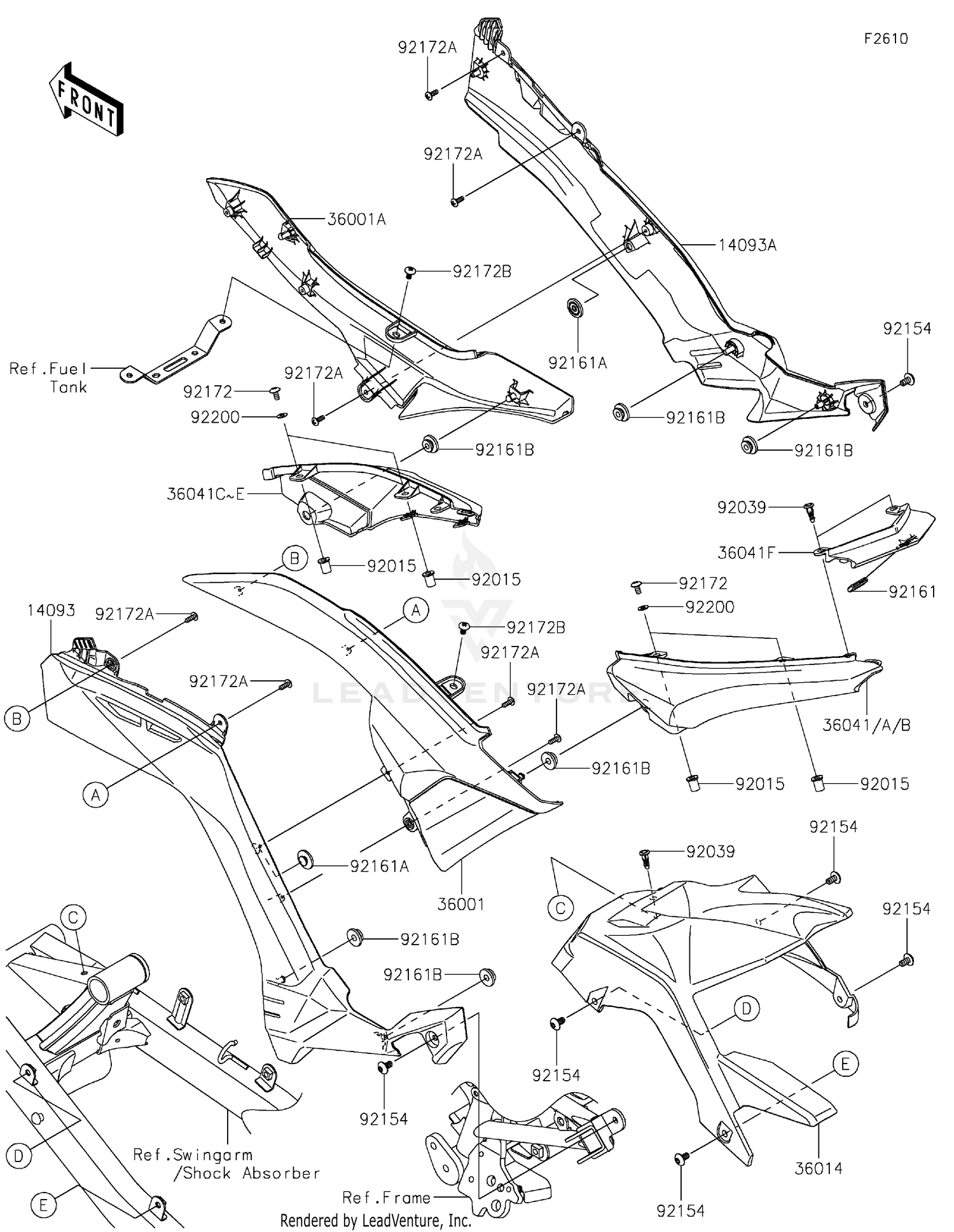

Side Covers/chain Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14093
COVER,PIVOT,LH,F.BLACK
14093-0330-6Z
|
$29.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14093A
COVER,PIVOT,RH,F.BLACK
14093-0331-6Z
|
$29.36 | ||
|
Available to order. Add to View Price |
|||
|
#36001
COVER-SIDE,LH,F.BLACK
36001-0634-6Z
|
$47.69 | ||
|
Available to order. Add to View Price |
|||
|
#36001A
COVER-SIDE,RH,F.BLACK
36001-0635-6Z
|
$47.69 | ||
|
Available to order. Add to View Price |
|||
|
#36014
CASE-CHAIN
36014-0568
|
$39.20 | ||
|
Available to order. Add to View Price |
|||
|
#36041
COVER-TAIL,LH,P.L.ORANGE
36041-0020-36V
|
$53.57 | ||
|
Unavailable |
|||
|
#36041A
COVER-TAIL,LH,M.M.D.GREEN
36041-0020-63Y
|
$53.57 | ||
|
Unavailable |
|||
|
#36041B
COVER-TAIL,LH,C.C.BEIGE
36041-0020-63Z
|
$53.57 | ||
|
Unavailable |
|||
|
#36041C
COVER-TAIL,RH,P.L.ORANGE
36041-0021-36V
|
$53.57 | ||
|
Unavailable |
|||
|
#36041D
COVER-TAIL,RH,M.M.D.GREEN
36041-0021-63Y
|
$53.57 | ||
|
Unavailable |
|||
|
#36041E
COVER-TAIL,RH,C.C.BEIGE
36041-0021-63Z
|
$53.57 | ||
|
Unavailable |
|||
|
#36041F
COVER-TAIL,F.BLACK
36041-0022-6Z
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WELL,5MM
92015-1757
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0709
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X12
92154-1484
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,12X23
92161-1367
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,8X22X10
92161-1685
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER
92161-1810
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,5X16
92172-0322
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,4X12
92172-0959
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#92172B
SCREW,5X10
92172-1090
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,NYLON,5.3X11.5X0.5
92200-1480
|
$1.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
