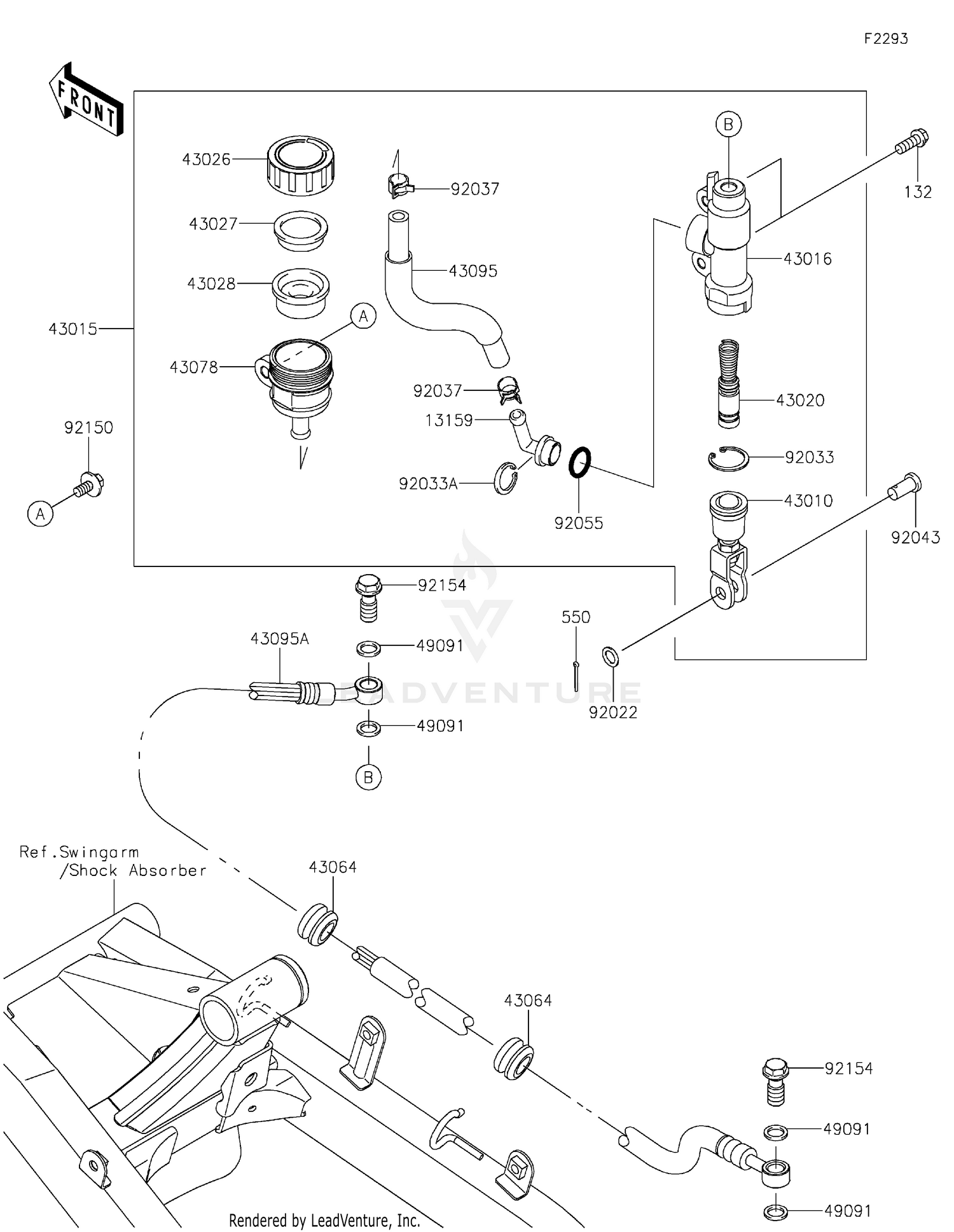

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13159
CONNECTOR
13159-1056
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1068
|
$52.23 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,RR
43015-0635
Superseded by 43015-0881
|
$300.41 | ||
|
Unavailable |
|||
|
#43016
CYLINDER-MASTER
43016-1149
|
$195.30 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1094
|
$66.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1062
|
$30.69 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1053
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1065
|
$19.43 | ||
|
Available to order. Add to View Price |
|||
|
#43064
GROMMET,HOSE CLAMP
43064-006
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1080
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,RESERVOIR
43095-0904
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,RR,559MM
43095-0905
|
$86.18 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92022
WASHER,8.5X13X1
92022-1028
|
$4.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92033
RING-SNAP,20.9X24.6X1.2
92033-0079
|
$8.01 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,20.5MM
92033-1186
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1710
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-0004
|
$11.46 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-0741
|
$3.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92150
BOLT,6X14
92150-1340
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,10X23
92154-0732
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132BA0616
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
