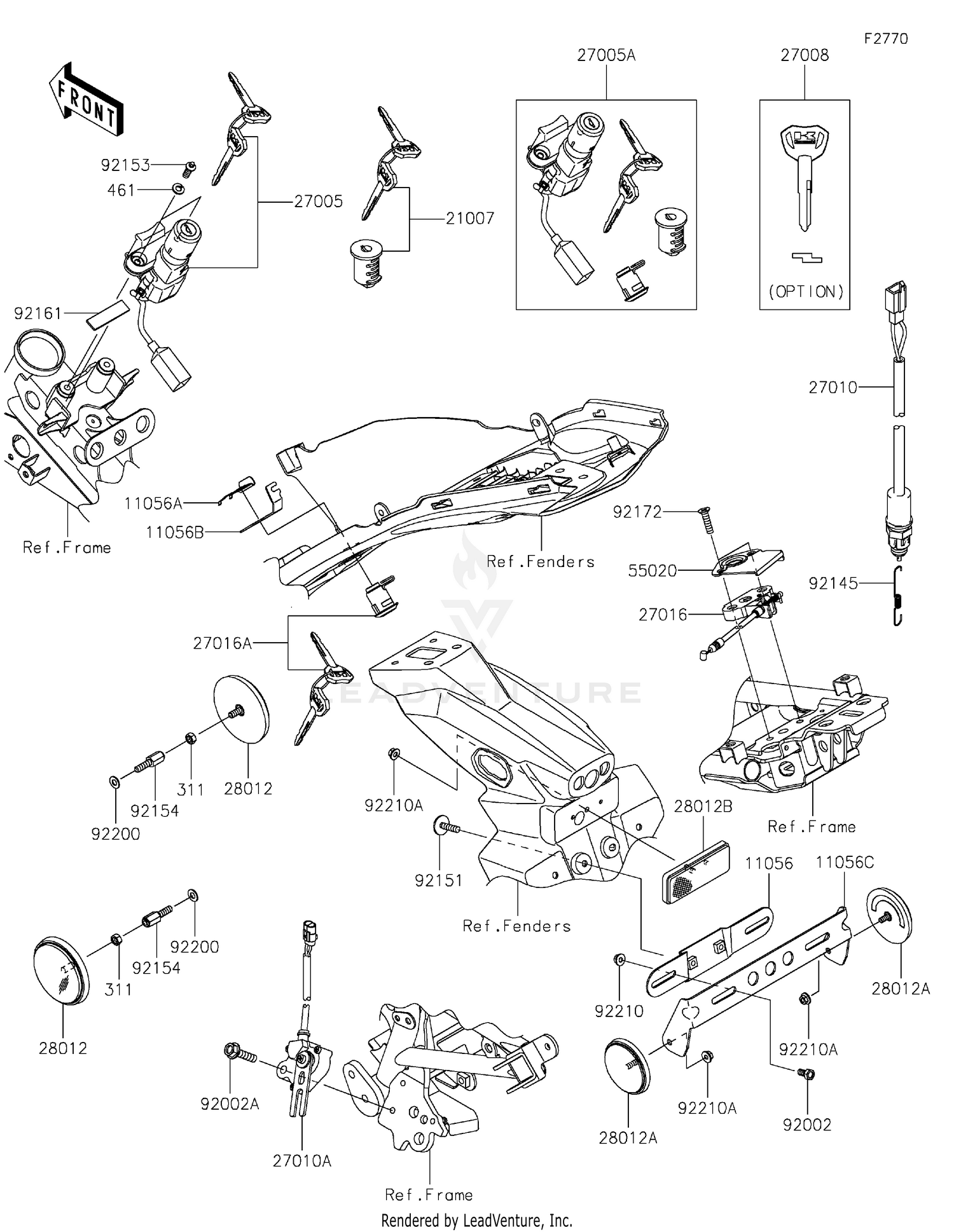

Ignition Switch/locks/reflectors 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,LICENSE PLATE
11056-0139
|
$20.28 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET,CLASP
11056-0238
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#11056B
BRACKET,SEAT LOCK
11056-2119
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#11056C
BRACKET
11056-7906
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,LOCK,TANK CAP
21007-5088
|
$82.88 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-0685
|
$155.95 | ||
|
Available to order. Add to View Price |
|||
|
#27005A
SWITCH-ASSY-IGNITION
27005-5182
|
$269.12 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-0650
|
$21.97 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,RR BRAKE
27010-0828
|
$36.83 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,SIDE STAND
27010-0829
|
$119.84 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,SEAT STRIKER
27016-0081
|
$45.46 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,SEAT
27016-5415
|
$69.37 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,FR,SIDE
28012-0001
|
$24.56 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-0002
|
$24.56 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX
28012-1077
|
$23.67 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,SEAT LOCK
55020-0554
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-UPSET
92002-1132
Superseded by 112BA0612
|
$1.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,6X25
92002-1582
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1723
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X25
92151-1241
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,TORX,6X16
92153-0967
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,6X20
92154-2193
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-1359
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X25
92172-0965
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X16X1.0
92200-0796
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,6MM
92210-1514
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,FLANGED,5MM
92210-1607
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311AB0500
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461DA0600
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
