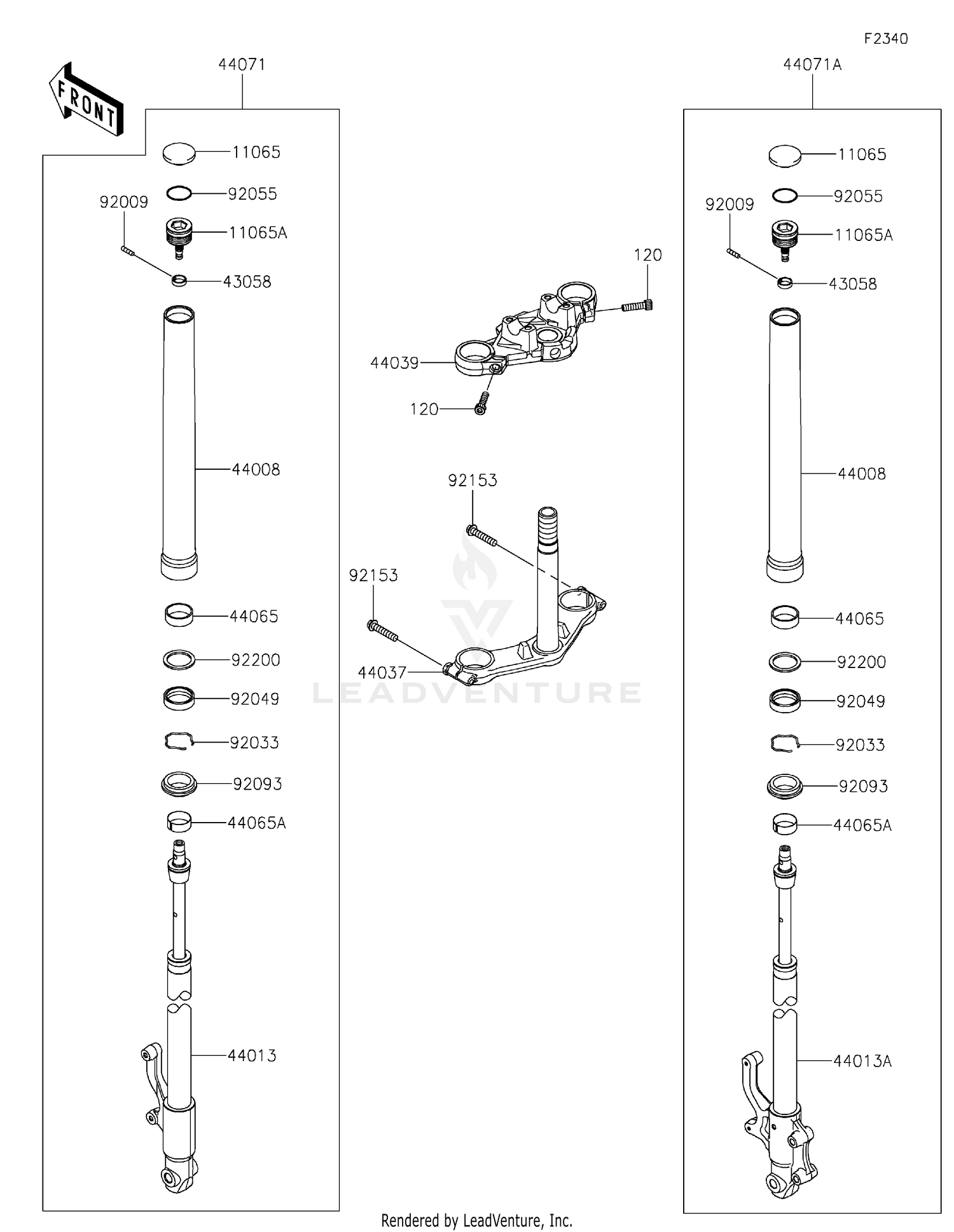

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP
11065-0005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#11065A
CAP
11065-0926
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#43058
RING
43058-1072
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER,R.GOLD
44008-0081-484
|
$458.56 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH,F.S.BLACK
44013-0306-18R
|
$287.51 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH,F.S.BLACK
44013-0307-18R
|
$287.51 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0163
|
$299.98 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0165-18R
|
$206.42 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-1099
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1101
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#44071
DAMPER-ASSY,FORK,LH,R.GOLD
44071-1259-484
|
$862.19 | ||
|
Available to order. Add to View Price |
|||
|
#44071A
DAMPER-ASSY,FORK,RH,R.GOLD
44071-1260-484
|
$862.19 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1625
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1038
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER TUBE
92049-0003
|
$18.39 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK TOP CAP
92055-1051
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-0001
|
$18.57 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,8X40
92153-0020
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1061
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,8X30
120CB0830
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
