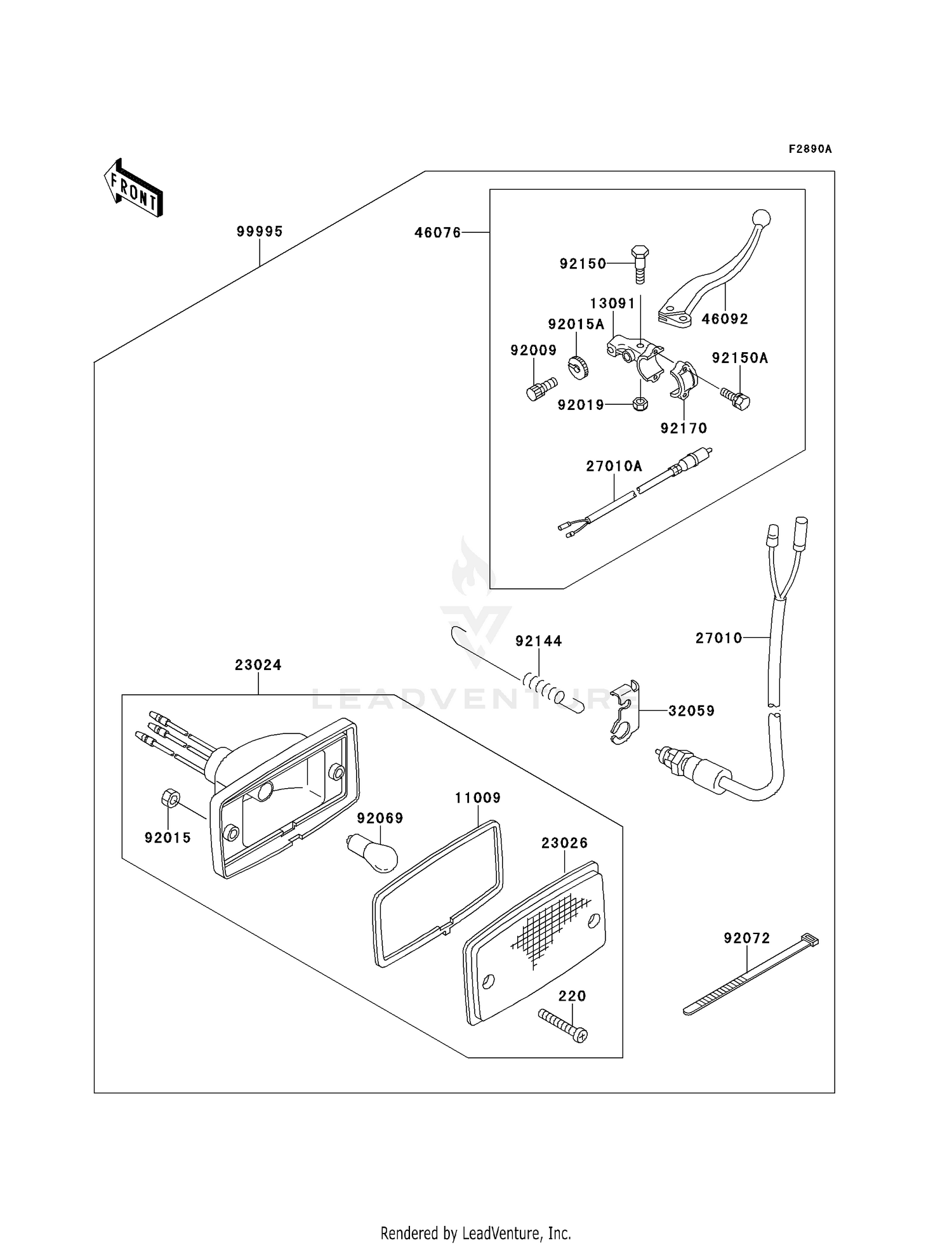

Optional Parts (brake Lamp) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN CROS,4X25
220B0425
Superseded by 220AA0425
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET
11009-4004
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#13091
LEVER-ASSY-GRIP,RH
13091-1719
Superseded by 46076-1179
|
$53.49 | ||
|
Available to order. Add to View Price |
|||
|
#23024
LAMP-ASSY-TAIL
23024-1119
Superseded by 23024-1139
|
$124.41 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,TAIL LAMP
23026-4003
|
$21.04 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE LIGHT
27010-025
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,STOP
27010-1296
|
$38.89 | ||
|
Available to order. Add to View Price |
|||
|
#32059
BRACKET-SWITCH,REAR B
32059-1106
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#46076
LEVER-ASSY-GRIP,RH
46076-1179
|
$53.49 | ||
|
Unavailable |
|||
|
#46092
LEVER-GRIP,RH
46092-1168
|
$20.18 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,CABLE ADJUST,8MM
92009-1435
Superseded by 46055-003
|
$16.73 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,4MM
92015-1550
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CABLE ADJUST LOCK,8MM
92015-1596
Superseded by 46056-005
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#92019
NUT,LOCK,6MM
92019-008
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 27/8W
92069-059
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,BRAKE PEDAL RE
92144-1542
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1457
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1458
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,LEVER HOLDER
92170-1219
|
$29.40 | ||
|
Available to order. Add to View Price |
|||
|
#99995
KIT.,BRAKE SWITCH
99995-1444
|
|||
|
Unavailable |
|||
