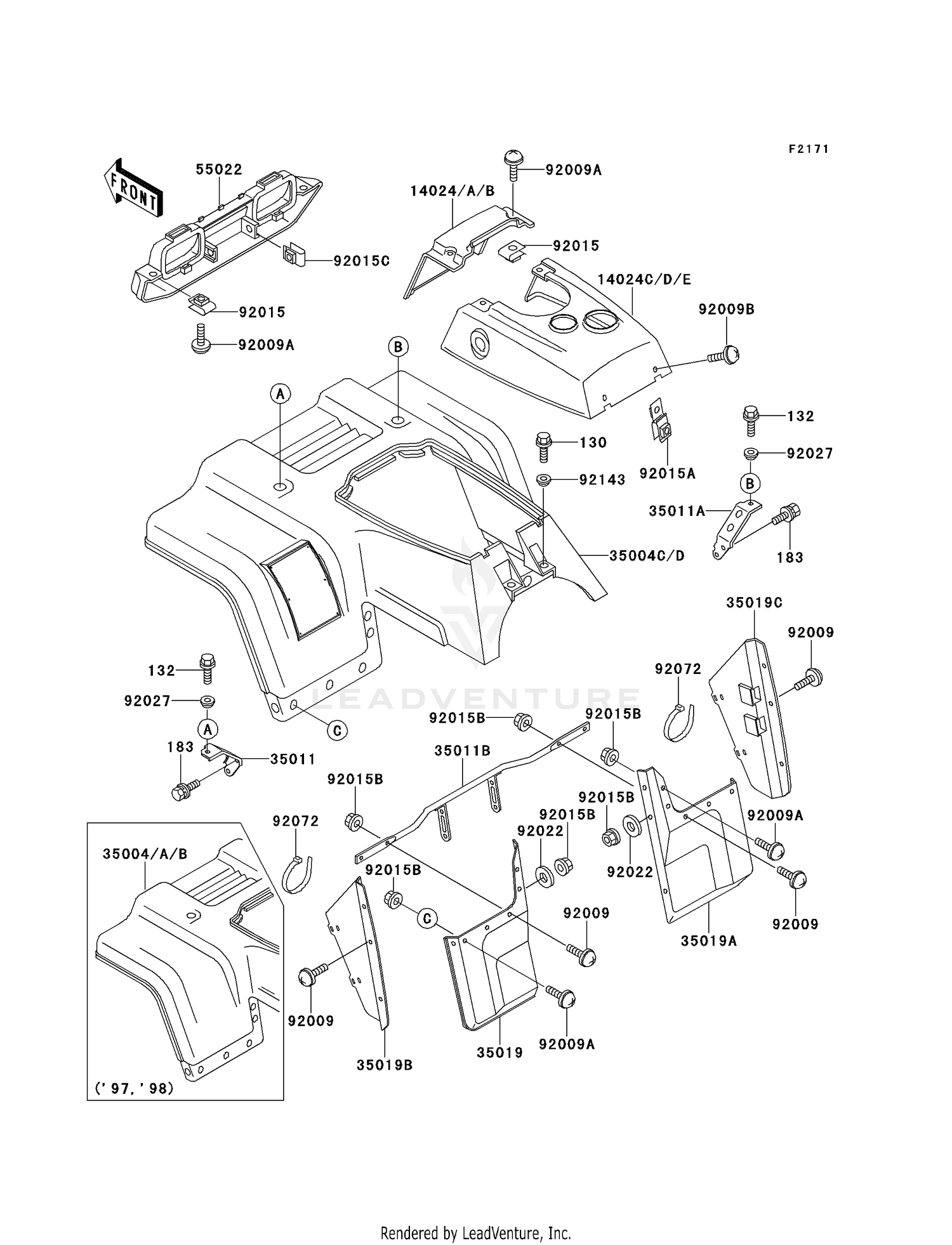

Front Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED
130C0616
Superseded by 130AB0616
|
$0.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL
132J0820
Superseded by 132BB0820
|
$4.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183J0814
Superseded by 183BB0814
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,FRONT FENDER,FR
14024-1475-6A
|
$26.68 | ||
|
Available to order. Add to View Price |
|||
|
#14024B
COVER,FR FENDER,F.RED
14024-1475-6L
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#14024D
COVER,FRONT FENDER,RR
14024-1476-6A
|
$26.68 | ||
|
Available to order. Add to View Price |
|||
|
#14024E
COVER,F.FENDER,RR RED
14024-1476-6L
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#35004A
FENDER-FRONT,H.GREEN
35004-1207-6A
Superseded by 35004-1380-6A
|
$196.37 | ||
|
Available to order. Add to View Price |
|||
|
#35004B
FENDER-FRONT,F.RED
35004-1207-6L
Superseded by 35004-1380-6L
|
$200.91 | ||
|
Unavailable |
|||
|
#35011
STAY,FRONT FENDER,LH
35011-1361
|
$19.94 | ||
|
Available to order. Add to View Price |
|||
|
#35011A
STAY,FRONT FENDER,RH
35011-1362
|
$19.94 | ||
|
Available to order. Add to View Price |
|||
|
#35011B
STAY,FRONT FLAP
35011-1368
|
$49.38 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP,FRONT,LH
35019-1195
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,FRONT,RH
35019-1196
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#35019B
FLAP,FR.INSIDE.LH
35019-1197
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#35019C
FLAP,FR.INSIDE,RH
35019-1198
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#55022
COVER
55022-1060-6D
|
$61.39 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X18
92009-1181
Superseded by 92172-0002
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X14
92009-1288
Superseded by 92009-1662
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,6X10
92009-1402
Superseded by 92172-0005
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1094
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,PLATE
92015-1667
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,LOCK,FLANGED,6MM
92015-1675
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,8MM
92015-1691
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-1804
Superseded by 92200-0283
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1908
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=149
92072-031
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=6.5
92143-1025
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
