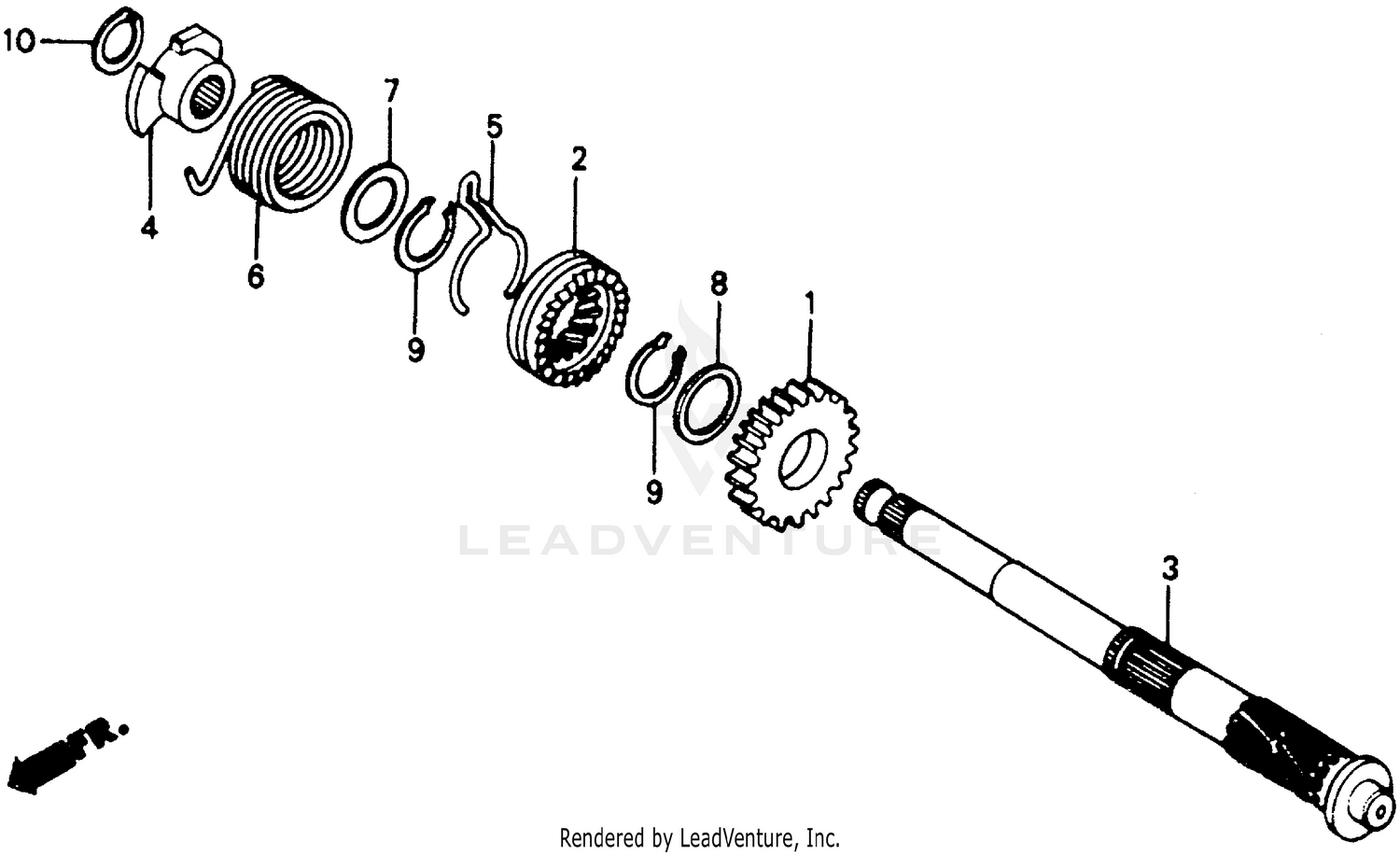

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION, KICK STARTER (21T)
28211-086-700
|
$92.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
RATCHET, STARTER DRIVE (10T)
28221-086-700
|
$59.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPINDLE, KICK STARTER
28251-086-701
|
$99.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, KICK SPRING
28262-041-730
Superseded by 28262-041-731
|
$19.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, KICK SPRING
28262-041-731
|
$19.16 | ||
|
Unavailable |
|||
|
#5
SPRING, STARTER PINION FRICTION
28271-121-690
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, KICK STARTER (NIPPON HATSUJO)
28281-035-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, KICK STARTER (CHUO HATSUJO)
28281-035-018
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (17MM)
90452-115-000
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, THRUST (20MM)
90454-107-000
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
SET-RING (20MM)
90605-200-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP (OUTER) (16MM)
94510-16000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
