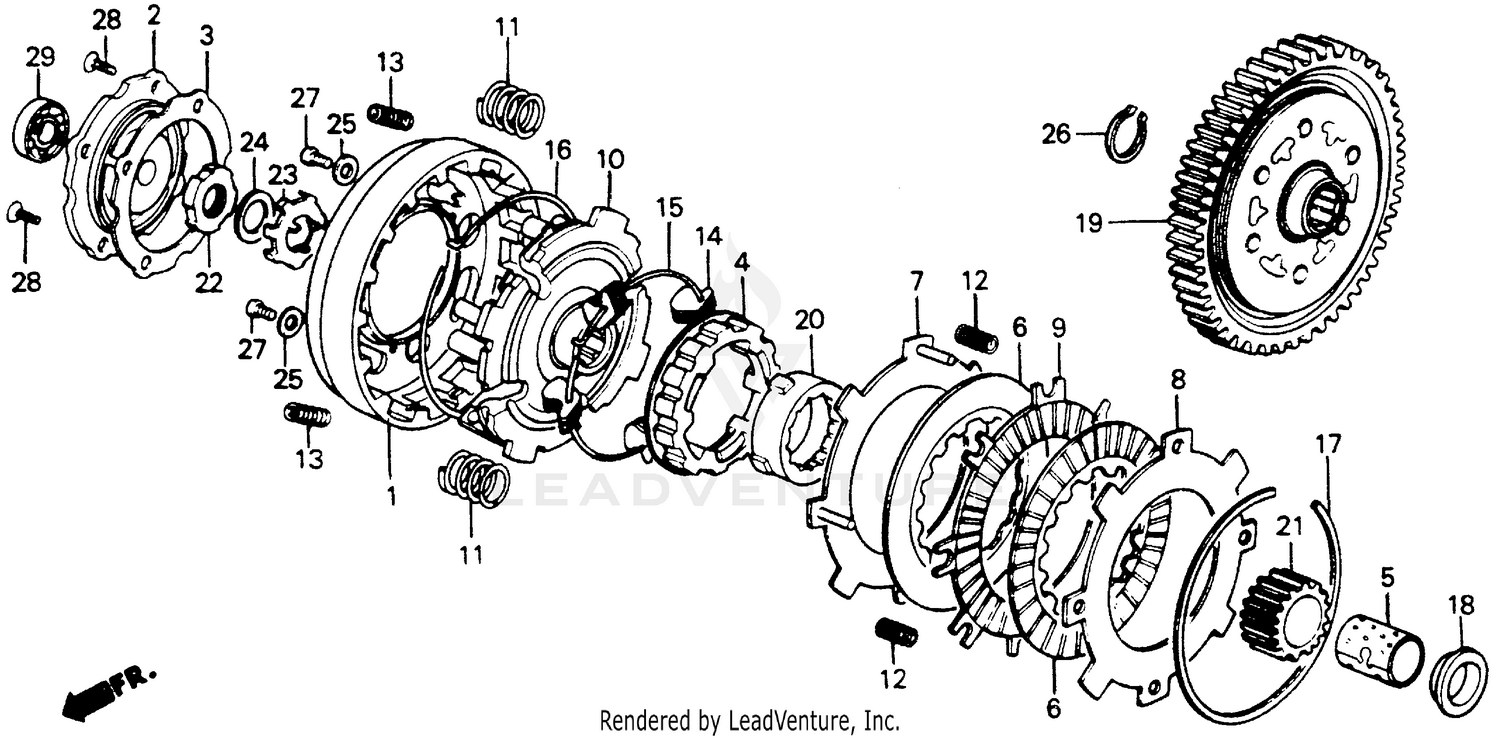

Clutch 88-93 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER
22101-178-000
|
$61.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, CLUTCH (OUTER)
22111-178-000
Superseded by 22111-178-010
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, CLUTCH (OUTER)
22111-178-010
|
$12.55 | ||
|
Unavailable |
|||
|
#3
GASKET, CLUTCH COVER (OUTER)
22119-GW8-680
Superseded by 22119-GW8-682
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CLUTCH COVER (OUTER)
22119-GW8-681
Superseded by 22119-GW8-682
|
$3.62 | ||
|
Unavailable |
|||
|
#4
CENTER, CLUTCH (17T)
22120-040-030
|
$82.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, CLUTCH CENTER
22131-035-030
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK A, CLUTCH FRICTION
22201-GW8-681
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE A, CLUTCH
22310-GB0-910
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE B, CLUTCH
22321-041-000
Superseded by 22321-046-020
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE B, CLUTCH
22321-046-020
|
$11.91 | ||
|
Unavailable |
|||
|
#9
DISK B, CLUTCH FRICTION
22331-GW8-681
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DRIVE
22351-GB2-710
|
$70.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH
22401-GW8-670
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, CLUTCH FREE
22411-092-010
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CLUTCH DAMPER
22421-040-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
WEIGHT, CLUTCH
22531-178-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, CLUTCH WEIGHT CENTER
22535-033-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, CLUTCH WEIGHT STOPPER
22536-033-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SET-RING (102MM)
22901-001-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR (17MM)
22911-GB4-680
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, PRIMARY DRIVEN (69T)
23110-086-030
|
$152.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
OUTER, DRIVE GEAR
23112-GB0-910
|
$32.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, PRIMARY DRIVE (17T)
23120-086-020
|
$55.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, LOCK (14MM)
90231-087-010
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LOCK (14MM)
90431-086-000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER B, LOCK
90432-086-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, STOPPER
90483-041-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (OUTER) (17MM)
90601-001-000
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW, PAN (5X10)
93500-05010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT (5X10)
93600-05010-0A
|
$0.82 | ||
|
Unavailable |
|||
|
#29
BEARING, RADIAL BALL (6000)
96100-60000-00
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
