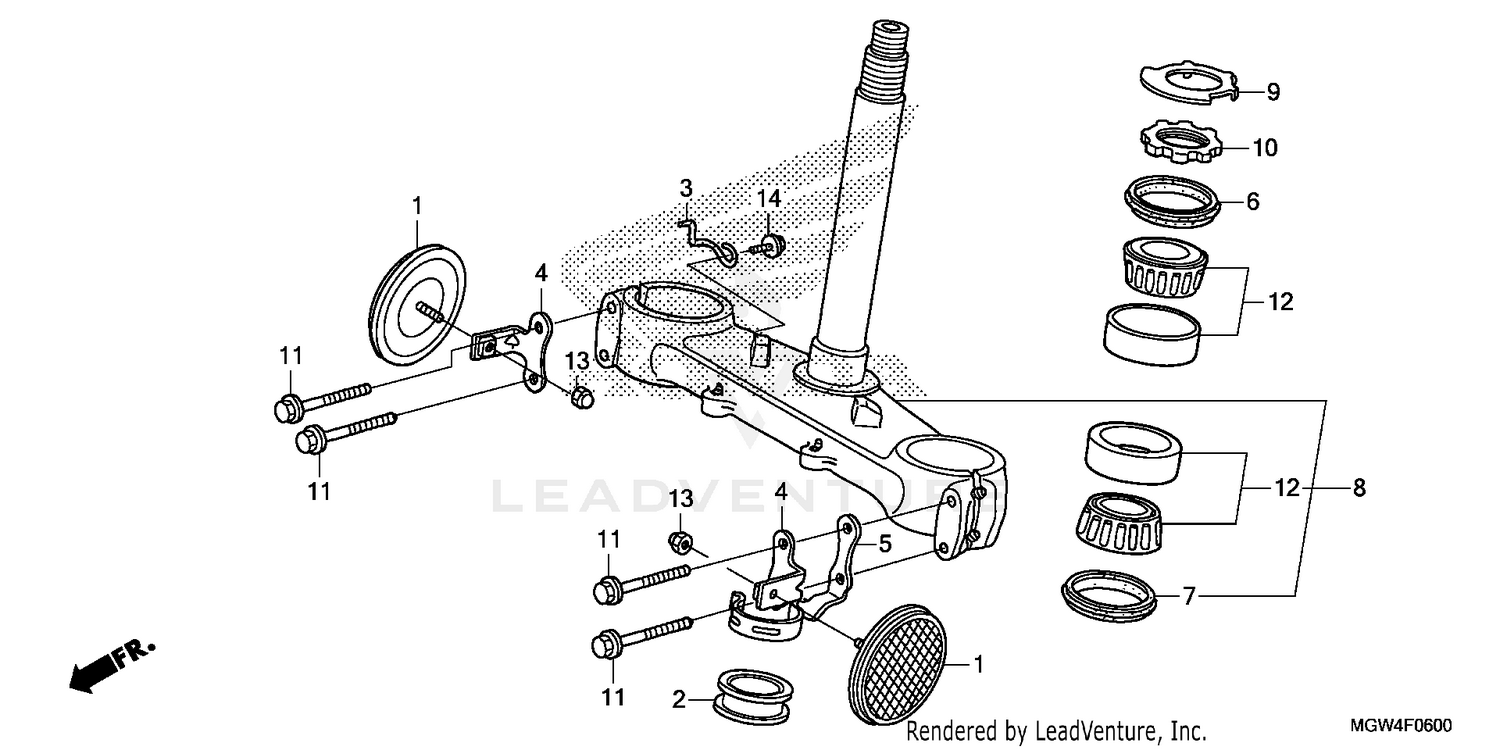

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FR. REFLEX (AMBER)
33742-HB9-641
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CABLE (INNER)
45466-KA4-000
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, SPEEDOMETER CABLE
45466-KR6-010
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, FR. REFLECTOR
45467-MG2-670
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, BRAKE HOSE (LOWER)
45468-MK5-000
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL, STEERING HEAD (ARAI)
53214-KA3-732
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL, STEERING HEAD (ARAI)
53214-KA4-701
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
STEM SUB-ASSY., STEERING
53219-MY6-A10
|
$671.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, TOP THREAD
53228-KN5-000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
THREAD, STEERING HEAD TOP
53229-MN1-670
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X40)
90107-KF0-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, HEAD PIPE (UPPER) (NACHI)
91015-425-832
|
$37.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, CAP (6MM)
94021-06000-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CAP (6MM)
94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#13
NUT, CAP (6MM)
94021-06020-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#13
NUT, CAP (6MM)
94022-06020
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
