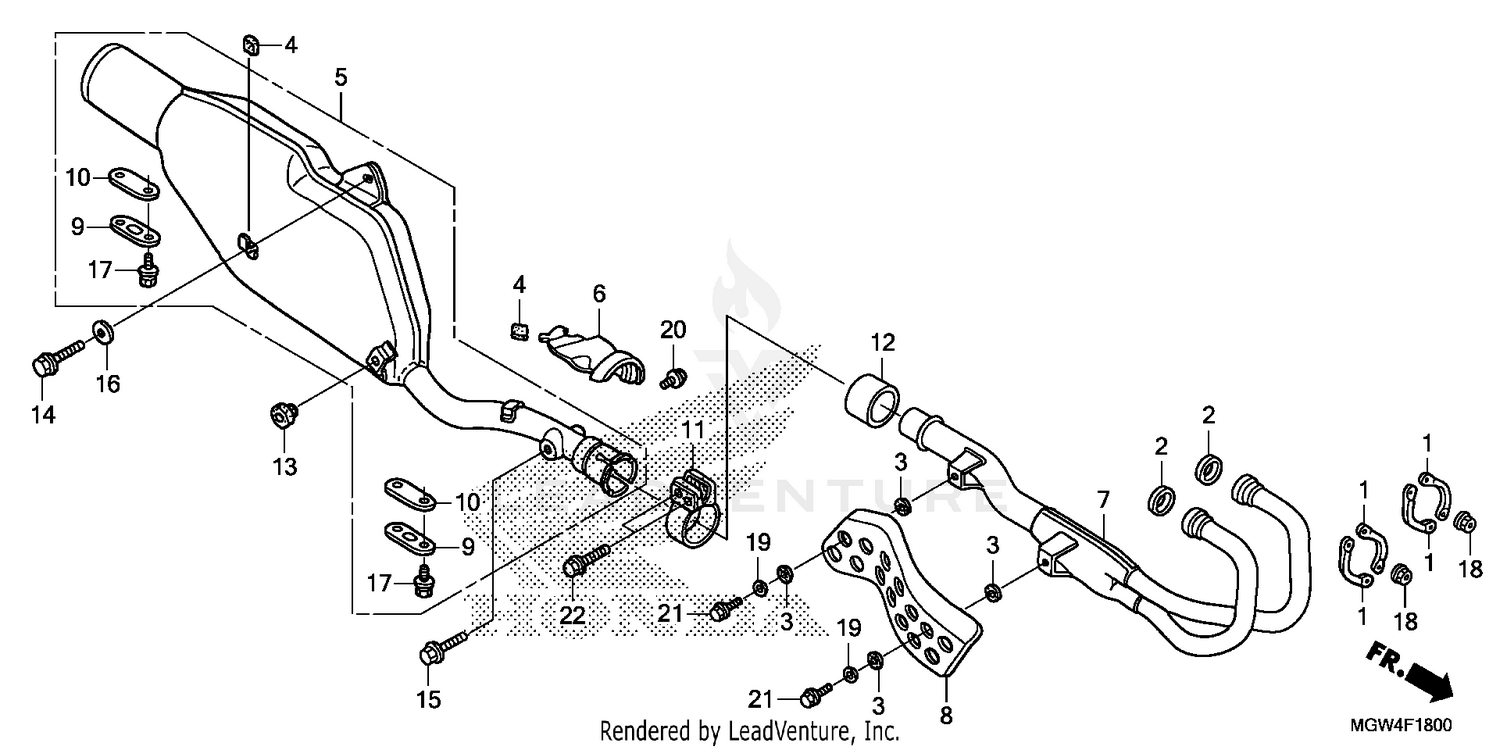

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EX. PIPE
18231-MN1-670
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, EX. PIPE
18291-MN5-650
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET, PROTECTOR
18292-KBR-000
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, PROTECTOR GASKET
18293-GE8-000
Superseded by 18293-147-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER (COO)
18310-MGW-305
|
$1,088.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER (COO)
18310-MY6-670
Superseded by 18310-MGW-305
|
$1,088.49 | ||
|
Unavailable |
|||
|
#6
PLATE, HEAT GUARD
18315-MY6-670
|
$55.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, EX. (COO)
18320-MGW-305
|
$449.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, EX. (COO)
18320-MY6-670
Superseded by 18320-MGW-305
|
$449.45 | ||
|
Unavailable |
|||
|
#8
PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK)
18325-MY6-670ZA
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
LID, MUFFLER
18373-429-010
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, MUFFLER LID
18374-MN1-880
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, L. MUFFLER
18377-MT3-000
|
$37.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, RR. MUFFLER
18392-MJ4-670
|
$19.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
RUBBER, SIDE COVER (PD)
83512-KA4-700
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X44)
90154-KZ3-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X28)
90212-MN1-670
|
$8.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (8.5X22X2.3)
90509-642-000
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X12)
93401-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, PLAIN (6MM)
94101-06700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X8)
95701-06008-07
|
$1.02 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X40)
96300-08040-07
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
